Ultra-Thin Dob IP65 Aluminum Led Floodlight

Ultra-Thin Dob IP65 Aluminum Led Floodlight

Product Model: COMI -FL44

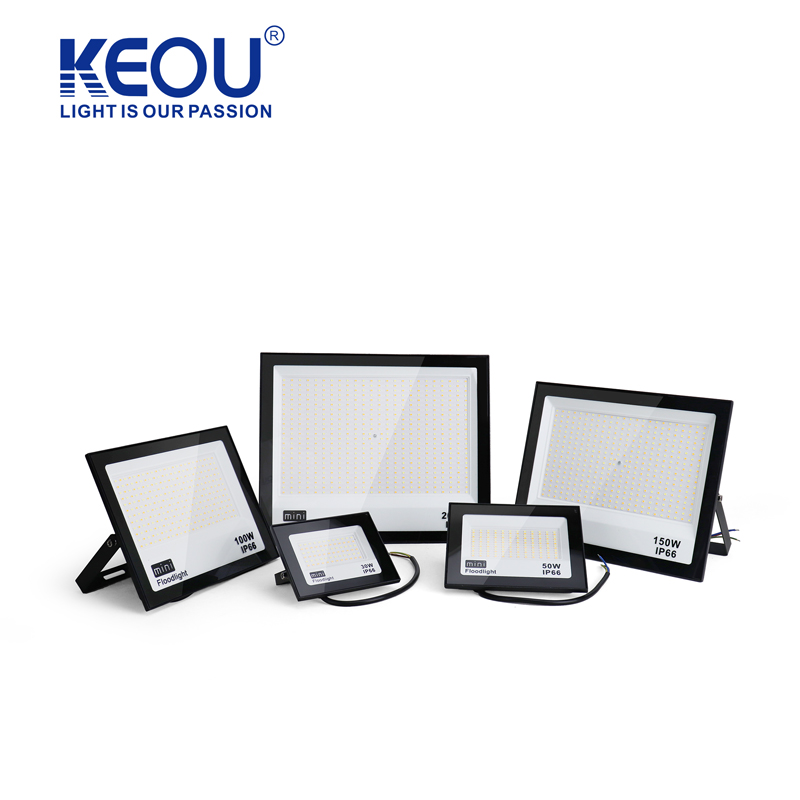

Wattage: 30W 50W 100W 150W 200W

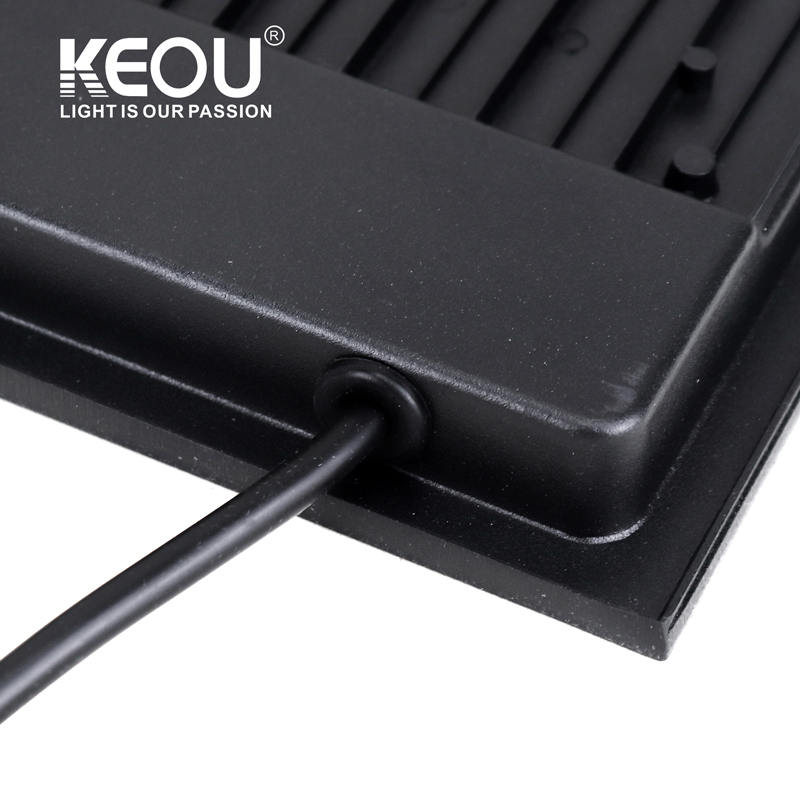

Materials: Die-cast housing

Thickness: 25mm-32mm

Color: Black casing

Waterproof: IP65 rating

LED chips: 2835

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our Ultra-Thin DOB flood light

COMI FL44 LED floodlight features a die-cast aluminum housing and a glass lens, boasting an IP65 waterproof rating for exceptional outdoor durability. Equipped with high-brightness imported 2835 LED chips, it delivers a luminous efficacy of up to 100 lm/W, providing uniform and brilliant illumination. It utilizes a 110–265V wide-voltage DOB driver and supports three-color temperature adjustment via a built-in DIP switch; with a 95% power factor and stable performance, it is both energy-efficient and durable. Suitable for a wide range of outdoor applications—including industrial sites, public squares, landscapes, and architectural lighting—it represents a cost-effective choice for outdoor lighting projects.

⇒Detailed specifications

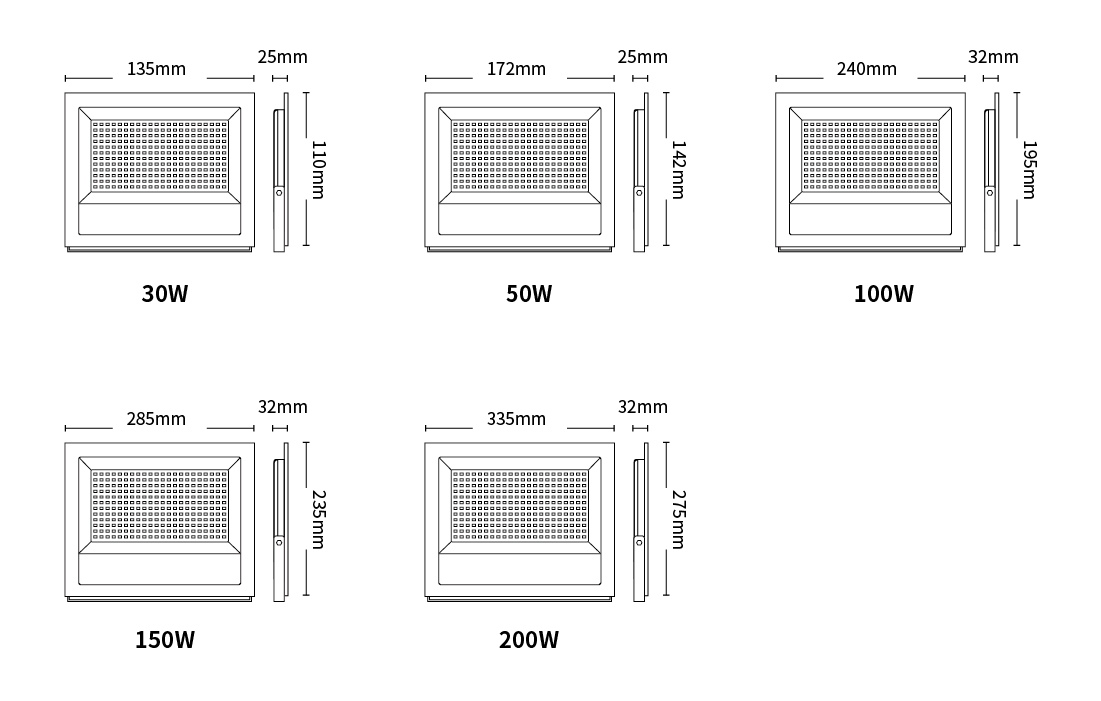

Model number	Power	Size (mm)	IP	Luminous flux
COMI -FL44 -30W	30W	135x110x25mm	65	3000lm
COMI -FL44 -50W	50W	172x142x25mm	65	5000lm
COMI-FL44 -100W	100W	240x195x32mm	65	10000lm
COMI-FL44 -150W	150W	285x235x32mm	65	15000lm
COMI-FL44 -200W	200W	335x275x32mm	65	20000lm

⇒Product details

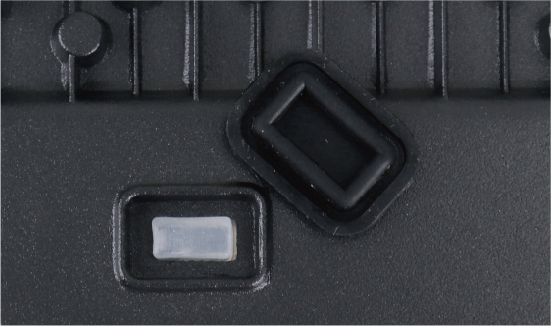

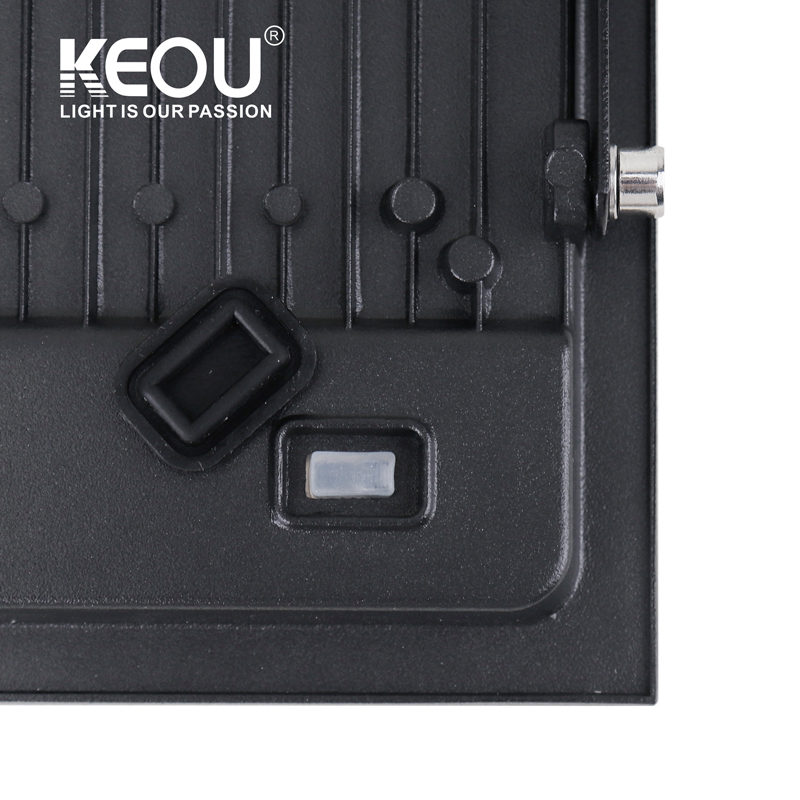

DIP Adjustable Color Temperature \| Inventory Optimization Supports color temperature switching via DIP switches; a single unit covers multiple color options, eliminating the need to stock various specifications. This streamlines inventory and reduces costs, offering greater flexibility for project bids and stock management.

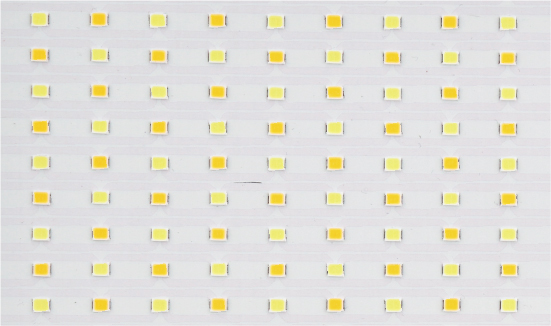

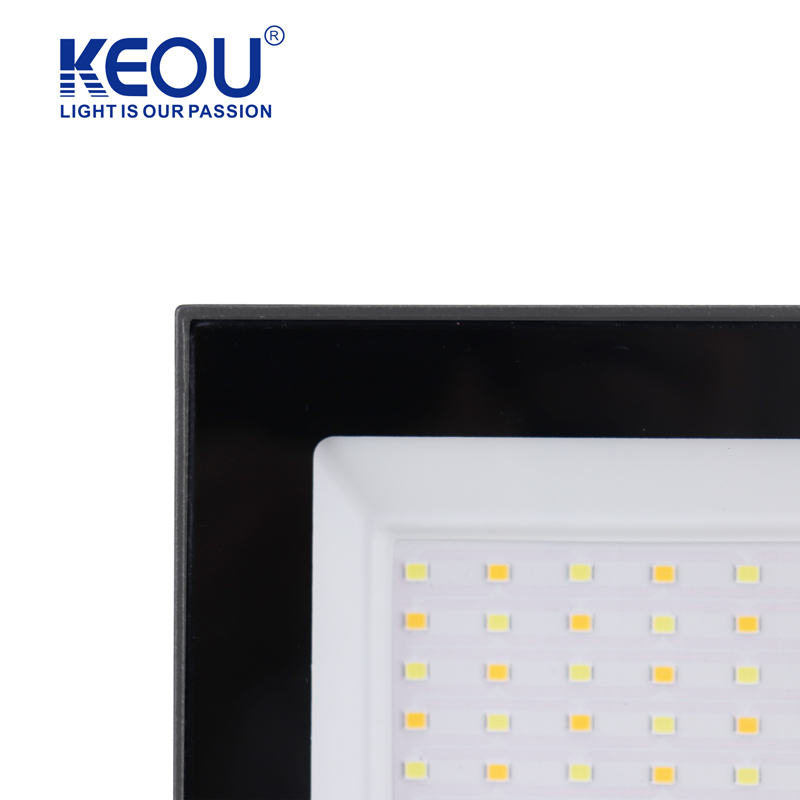

	Premium LED Chips \| Uniform, Long-Lasting Illumination Equipped with high-quality LED chips that deliver uniform, soft light without flickering. They feature excellent resistance to light decay and a long lifespan, ensuring stable performance over time and significantly lowering long-term maintenance costs.

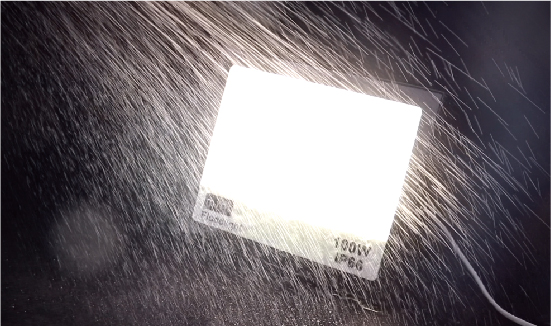

IP66 Quad-Protection \| All-Weather Durability Features an IP66 high-sealing rating—dustproof, waterproof, explosion-proof, and lightning-resistant. Built to withstand harsh outdoor conditions like wind, rain, and dust, it provides stable, all-weather lighting suitable for a wide range of outdoor applications.

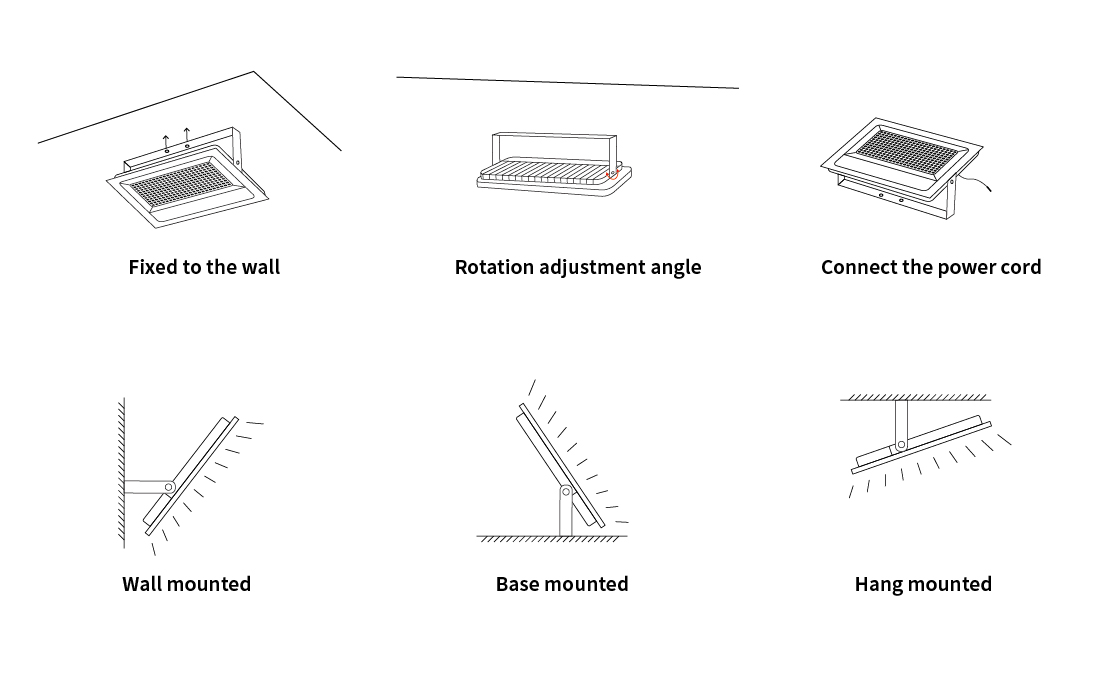

⇒How to install and use flood lights?


Wall- mounted installation	Angle- adjustable installation	Multi- functional adapter installation (suspension/ base support)

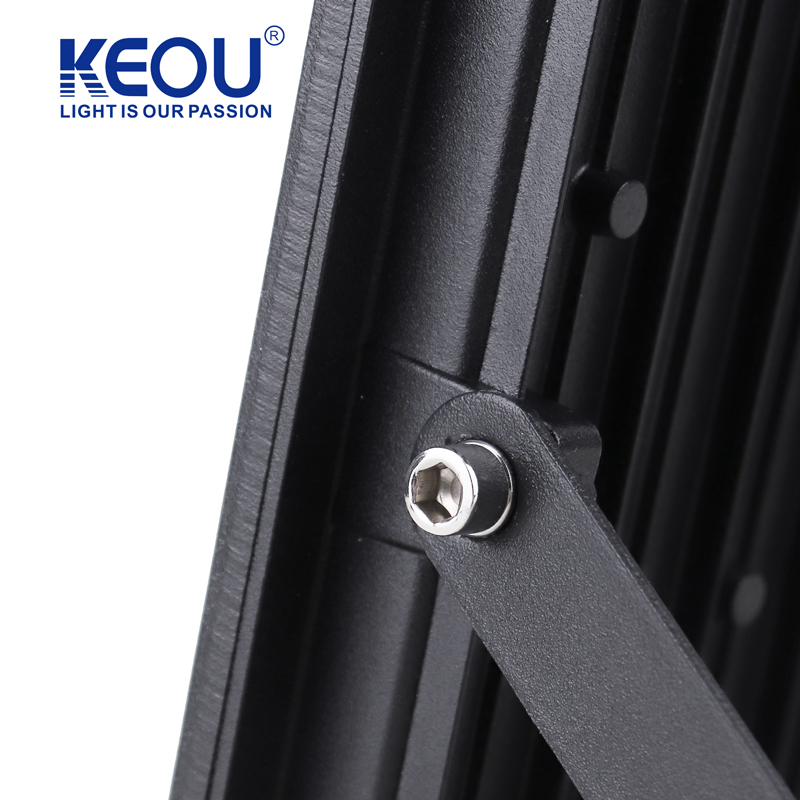

Cost-saving: No additional scaffolding is required, saving space and construction costs. Flexible layout: Not limited by poles, can be installed at fixed points as needed. Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.	Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting. High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance. Easy to maintain: Simple operation, no professional tools required for later adjustments.	Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts. Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios. High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

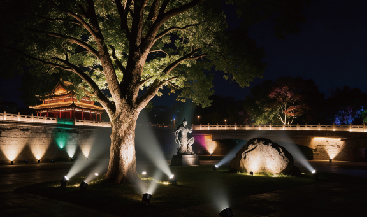

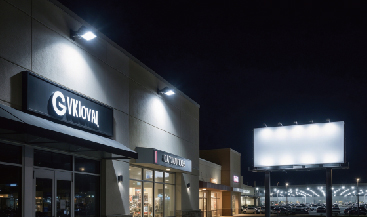

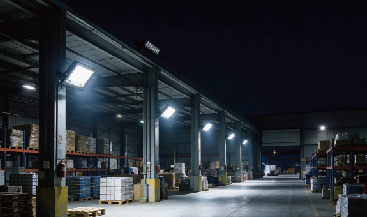

Floodlights precisely illuminate storefront signs and building facades, enhancing brand visibility, nighttime recognition and customer attraction.	High-power floodlights deliver uniform bright illumination inside warehouses, ensuring safe and efficient shelf operations, order picking and aisle traffic.	Uplight floodlights wash trees and heritage building facades from below, creating layered nighttime ambiance while enhancing decoration and pedestrian safety.

⇒More street light designs are waiting for you to develop

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. Why are DIP-switch selectable tricolor floodlights becoming increasingly popular?

A1: Distributors need to stock only one SKU to replace three types of fixed-color-temperature fixtures; this drastically reduces the number of stock items and minimizes the risk of slow-moving inventory.
2. Color temperature can be toggled via a DIP switch prior to on-site installation. A single batch of stock can meet the specific color temperature requirements of diverse projects—such as building facades, landscapes, and industrial sites—thereby avoiding returns caused by selecting the wrong color temperature.
3. The physical DIP switch mechanism is stable and reliable; settings remain intact even during power outages, ensuring greater peace of mind for outdoor projects.
