High-Quality Ip66 Led Floodlight Featuring Philips Drivers And Led Chips.

High-Quality Ip66 Led Floodlight Featuring Philips Drivers And Led Chips.

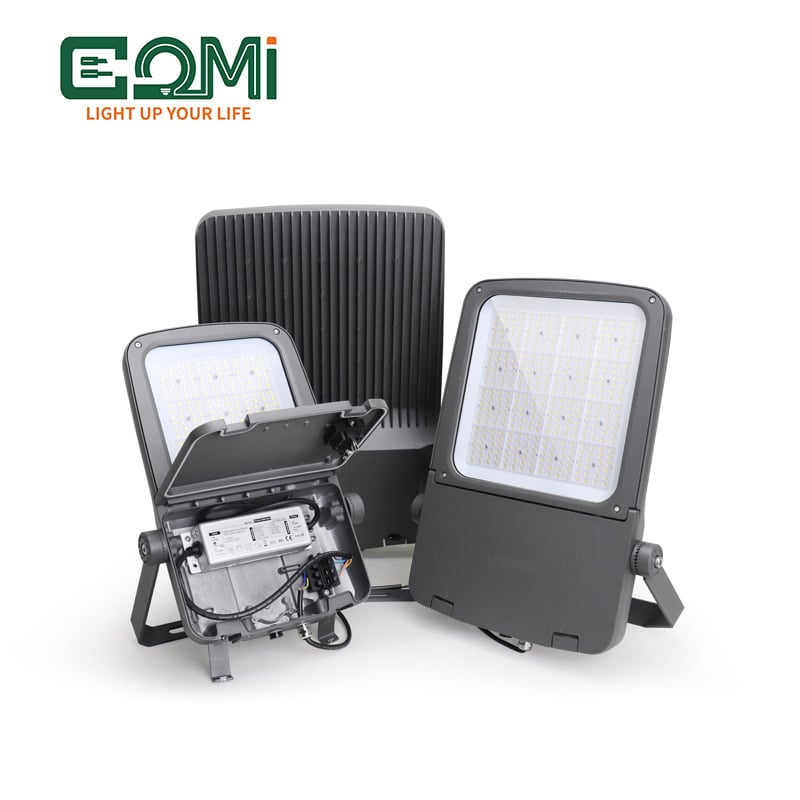

Product Model: COMI-FL43

Wattage: 100W 150W 200W 300W

Materials: Die-cast aluminum +PC lens + tempered glass

Thickness: 63 mm

Color: Dark grey housing

Waterproof: IP66 rating

LED chips: Philips lamp beads

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about Philips drivers and LED chips led flood light.

Adopts die-cast aluminum shell, PC lens and tempered glass with IP66 waterproof & dustproof, explosion-proof and lightning-proof, durable for outdoor use. Equipped with Philips LED chips, 110lm/W high luminous efficiency and RA80 color rendering, uniform and super bright output. 90° beam angle with rhombus cutting lens improves lighting efficiency and coverage.
All-aluminum isolated driver supports AC110-265V wide voltage with 0.95 high PF, stable and energy-saving. Multi-chip heat dissipation design ensures fast cooling and long lifespan. 180° rotatable installation, no blind spots. Ideal for square, campus, garden, rural road and other outdoor lighting.

⇒Detailed specifications

Model number	Power	Size	IP	Luminous flux
COMI-FL43-100W	100W	460x288x63mm	66	10000lm
COMI-FL43-150W	150W	528x337x63mm	66	15000lm
COMI-FL43-200W	200W	622x402x63mm	66	20000lm
COMI-FL43-300W	300W	676x452x63mm	66	30000lm

⇒Product details

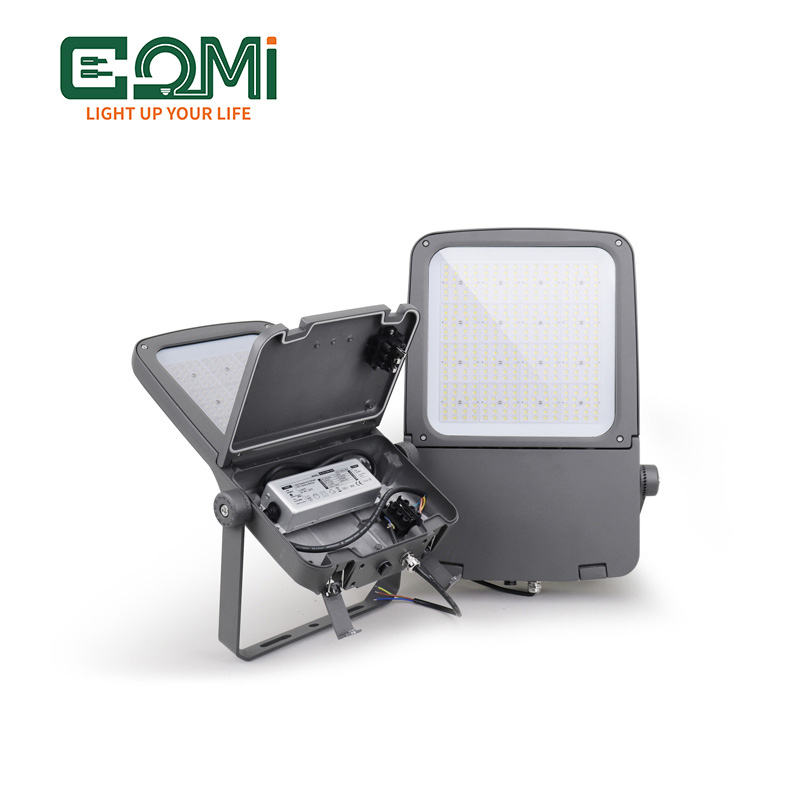

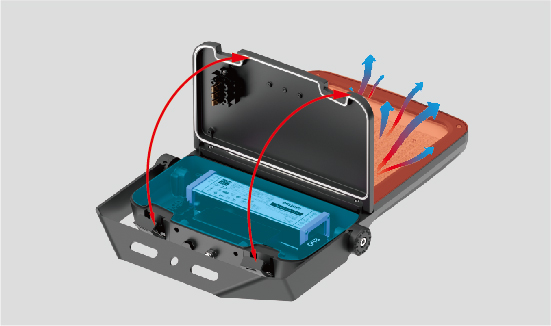

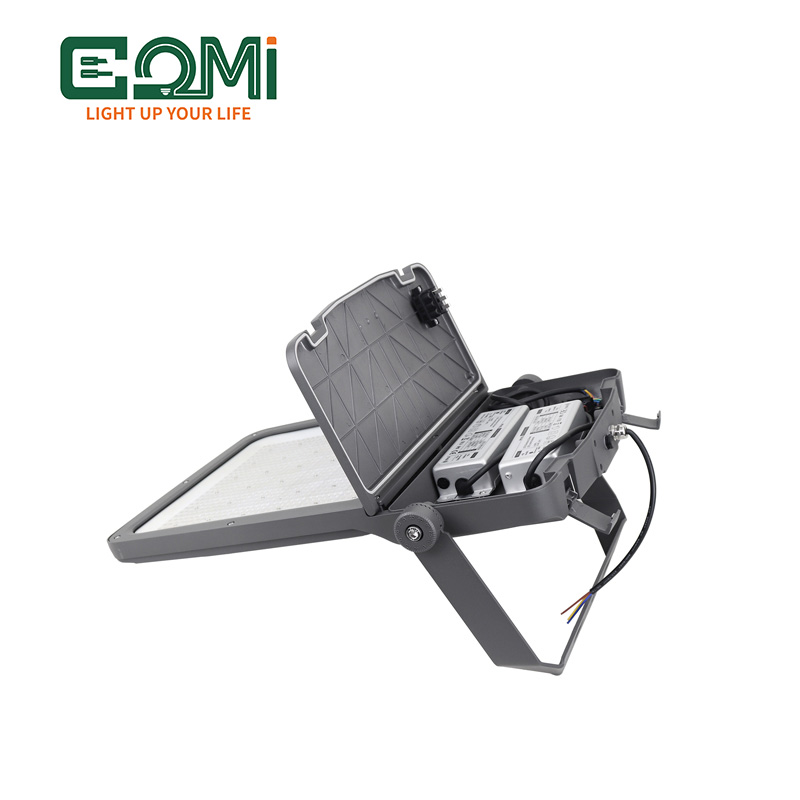

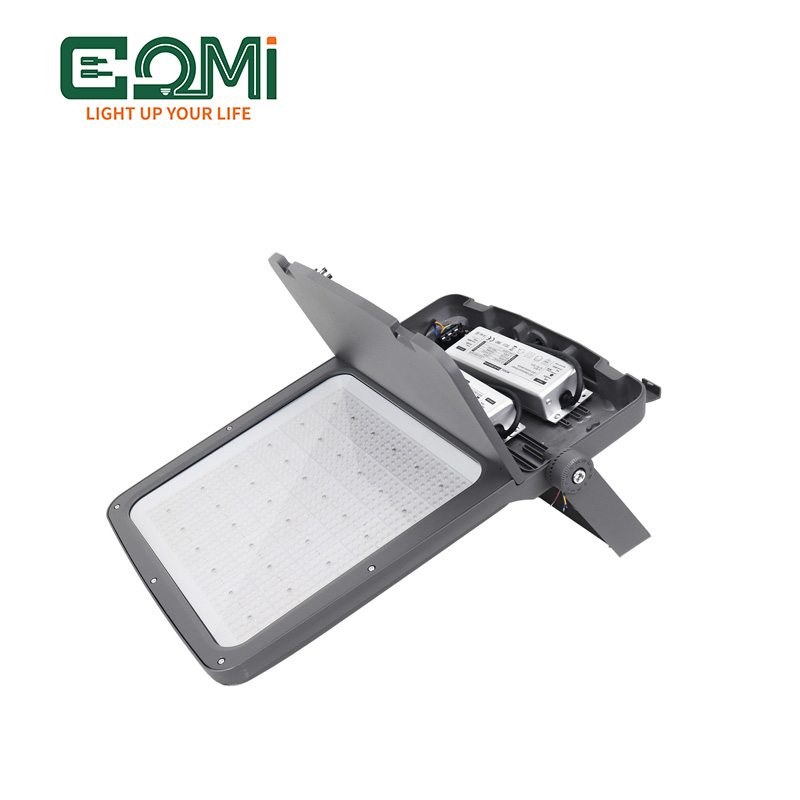

Tool-free Buckle Design Thermoelectric Separation Structure, Equipped with Power Cut Protector. Power Off When Cover Opened for Easy Maintenance.

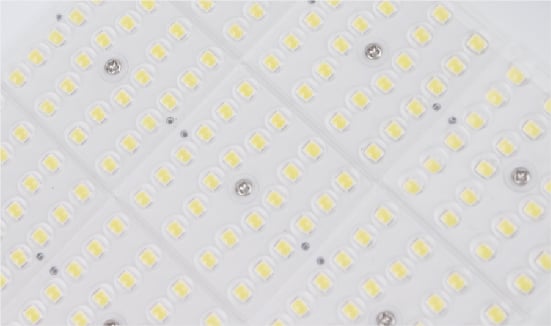

	USE ROAD PHOTOELECTRIC PC LENS DESIGN High quality LED chip is adopted, give off even light, long lifespan.
STRENGTHEN BRACKET STRUCTURE DESIGN To ensure safety and stability.

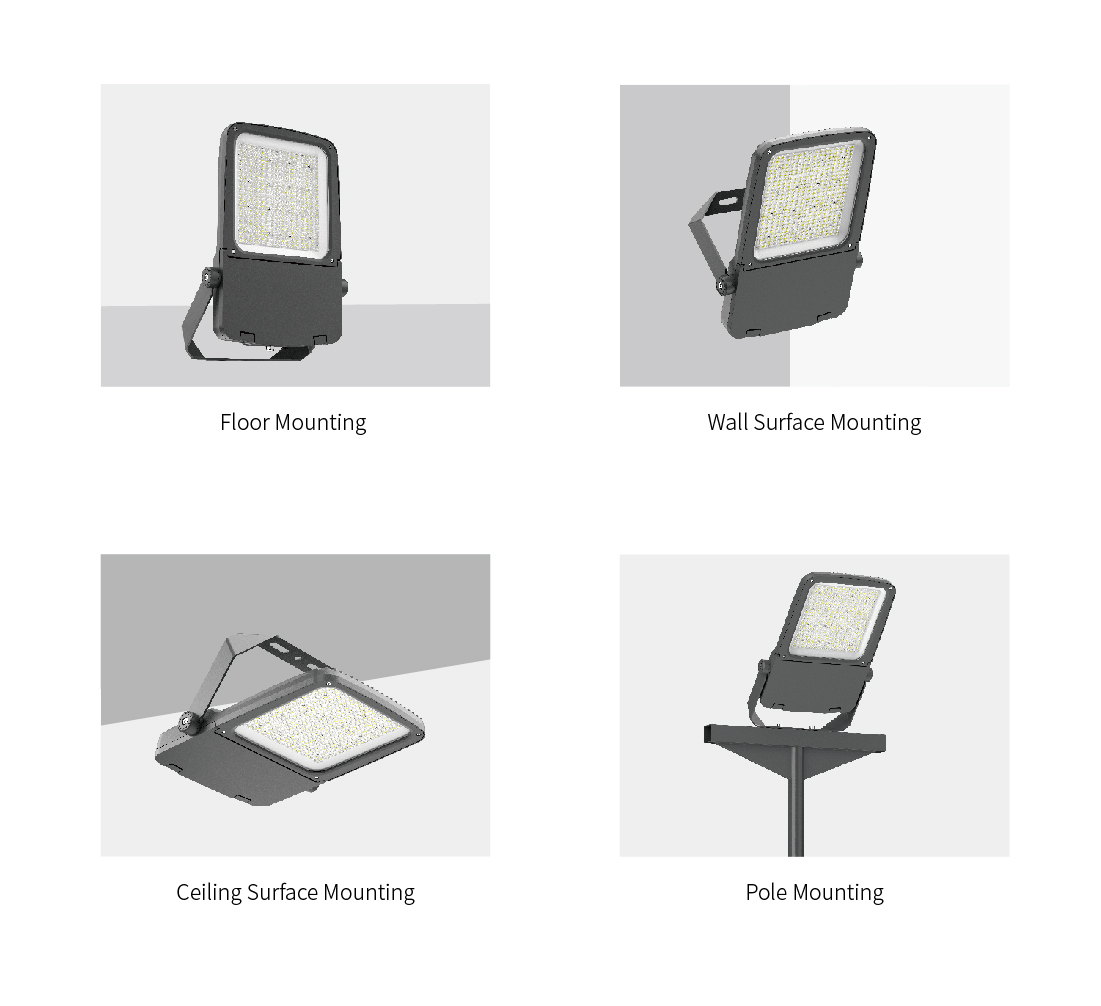

⇒How to install and use flood lights?


Wall-mounted installation

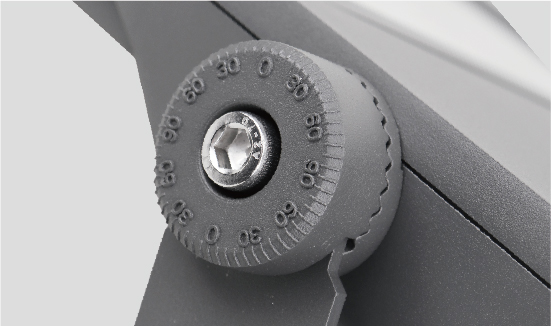

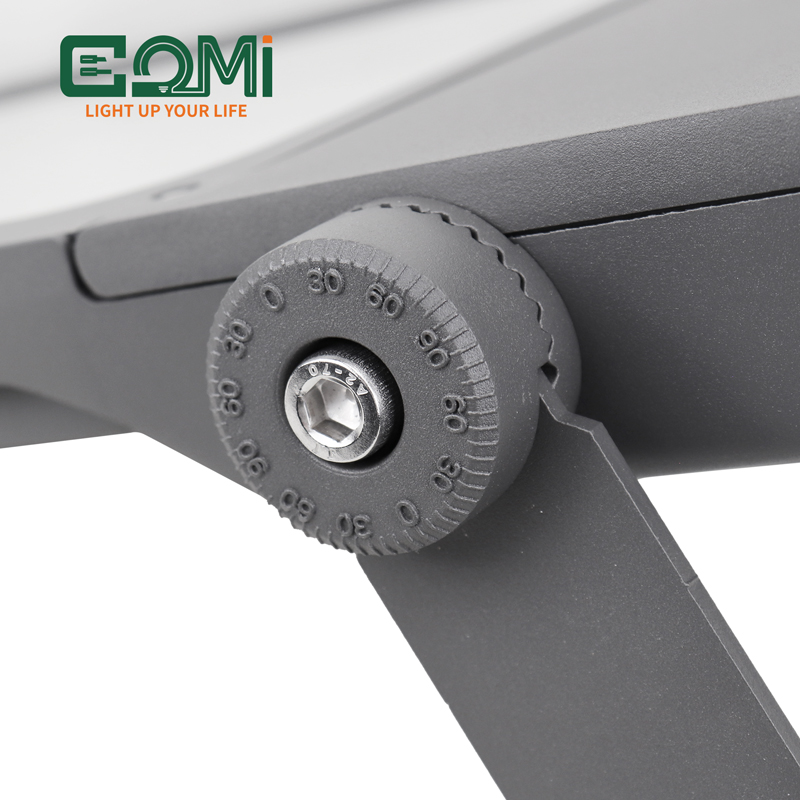

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

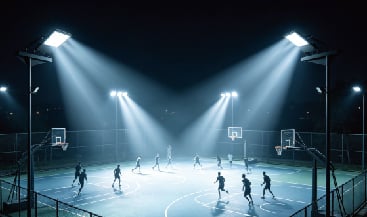

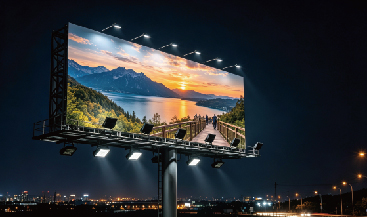

Our LED floodlight provides uniform and high-brightness lighting for the stadium at night, ensuring clear vision for sports and meeting the needs of nighttime sports activities.	The floodlight accurately illuminates the outdoor billboard, highlighting picture details and improving the visibility and communication effect of the advertisement at night.	The floodlight provides sufficient lighting for the large warehouse space, facilitating forklift operation and cargo sorting and stacking, and improving the safety and efficiency of warehouse operation.

⇒More Flood light designs to develop！

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. What is thermoelectric separation and power-off protection? What are its advantages?

A: Thermoelectric separation structure separates heat from LED chip and driver. It reduces heat transfer between components, improves heat dissipation, slows down aging and extends lamp life. Built-in power cut protector cuts off power automatically once the cover is opened, avoiding electric shock risk during maintenance for higher safety.
