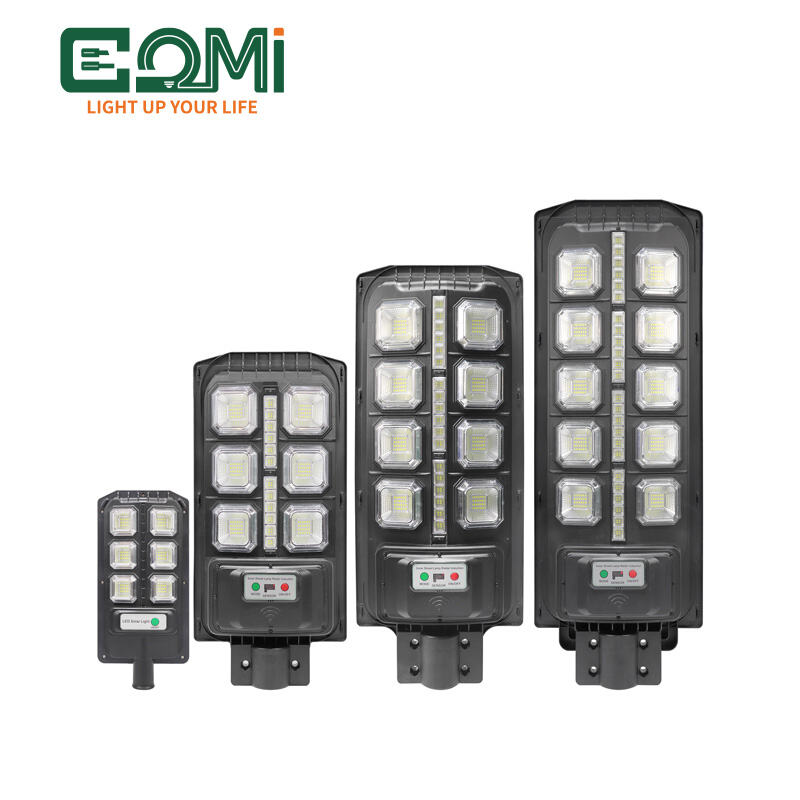

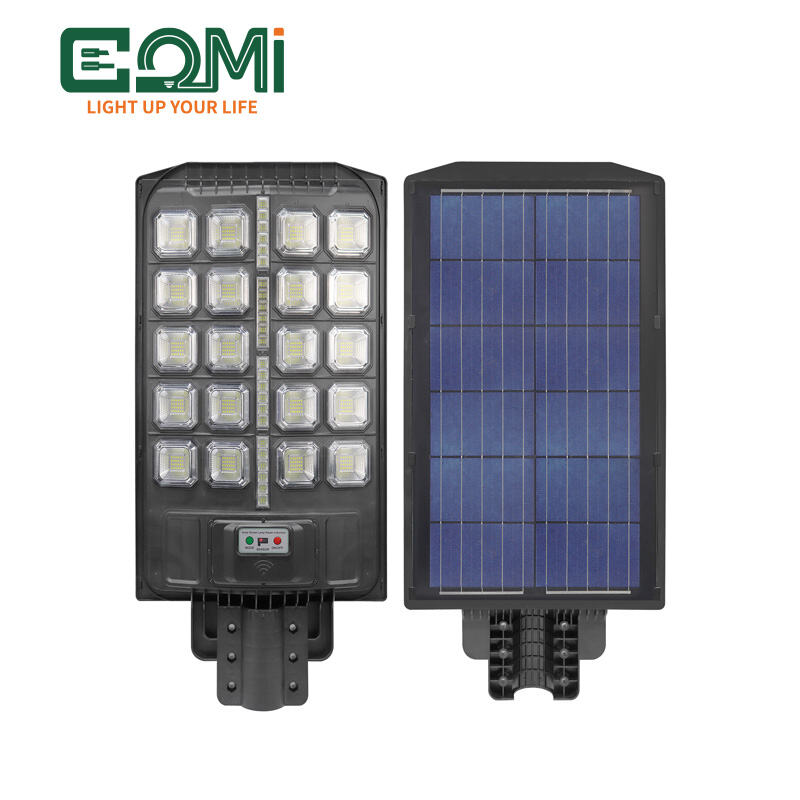

Integrated Lens Solar Street Light

⇒Learn more about our street light

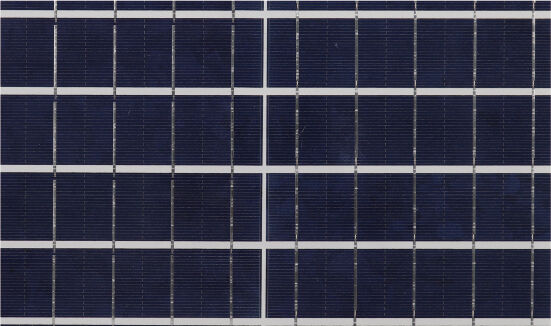

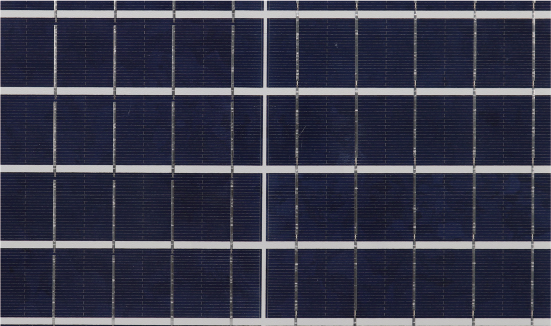

This integrated solar street light is designed specifically for outdoor use, requiring no wiring and suitable for courtyards, streets, walkways, and other scenarios. It intelligently and durable solves outdoor lighting needs, offering peace of mind and practicality. Equipped with both light control and human body sensing functions, it requires no manual operation, automatically charging during the day and saving energy in low-light conditions at night when no one is around. High-quality LED chips are energy-efficient and environmentally friendly, providing clear color rendering, low energy consumption, and longer battery life. They are also pollution-free and have a long lifespan, eliminating the need for frequent maintenance and replacements. The high-efficiency polycrystalline silicon solar panel allows for efficient charging even on cloudy or low-light days. The UV-resistant ABS+PC shell is waterproof, corrosion-resistant, and has excellent heat dissipation, making it resistant to aging and damage even with long-term outdoor use, ensuring peace of mind.

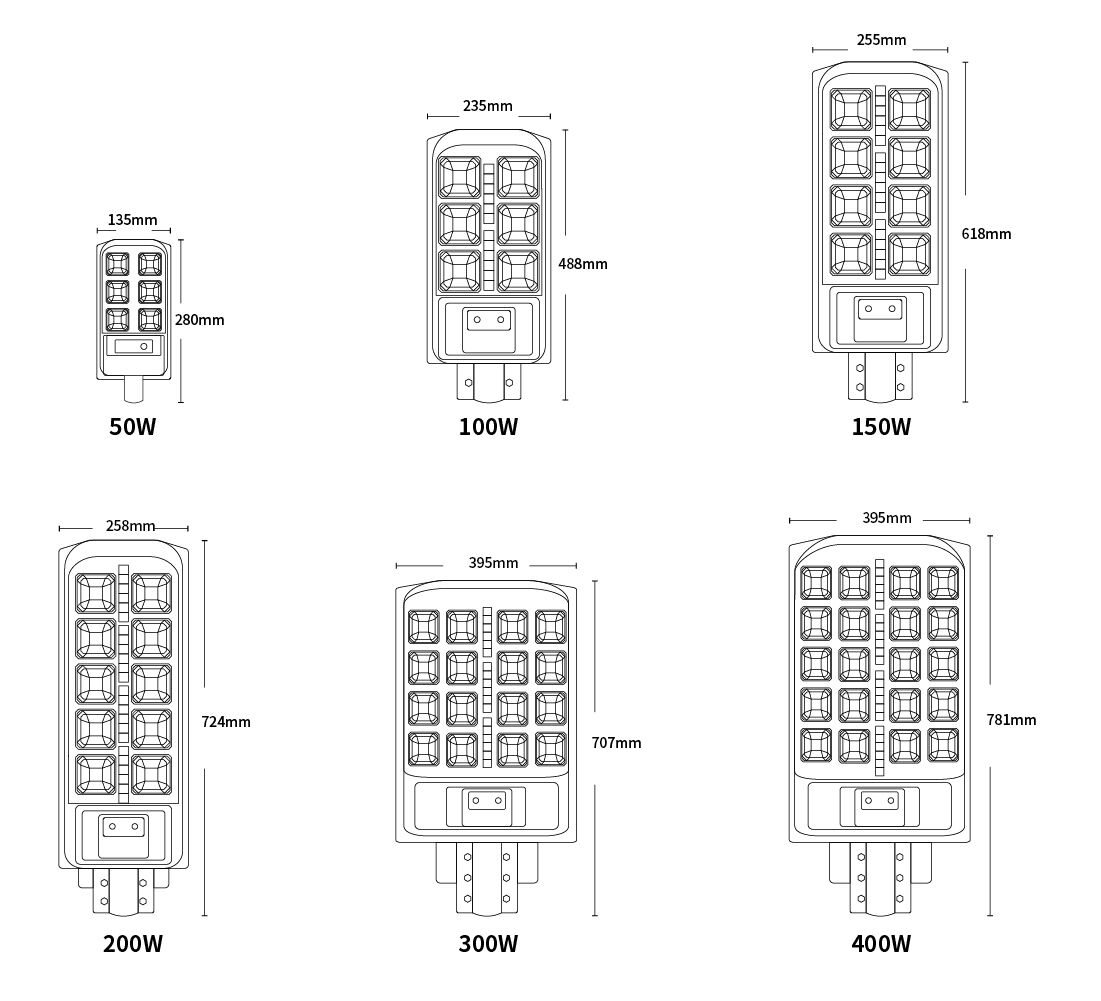

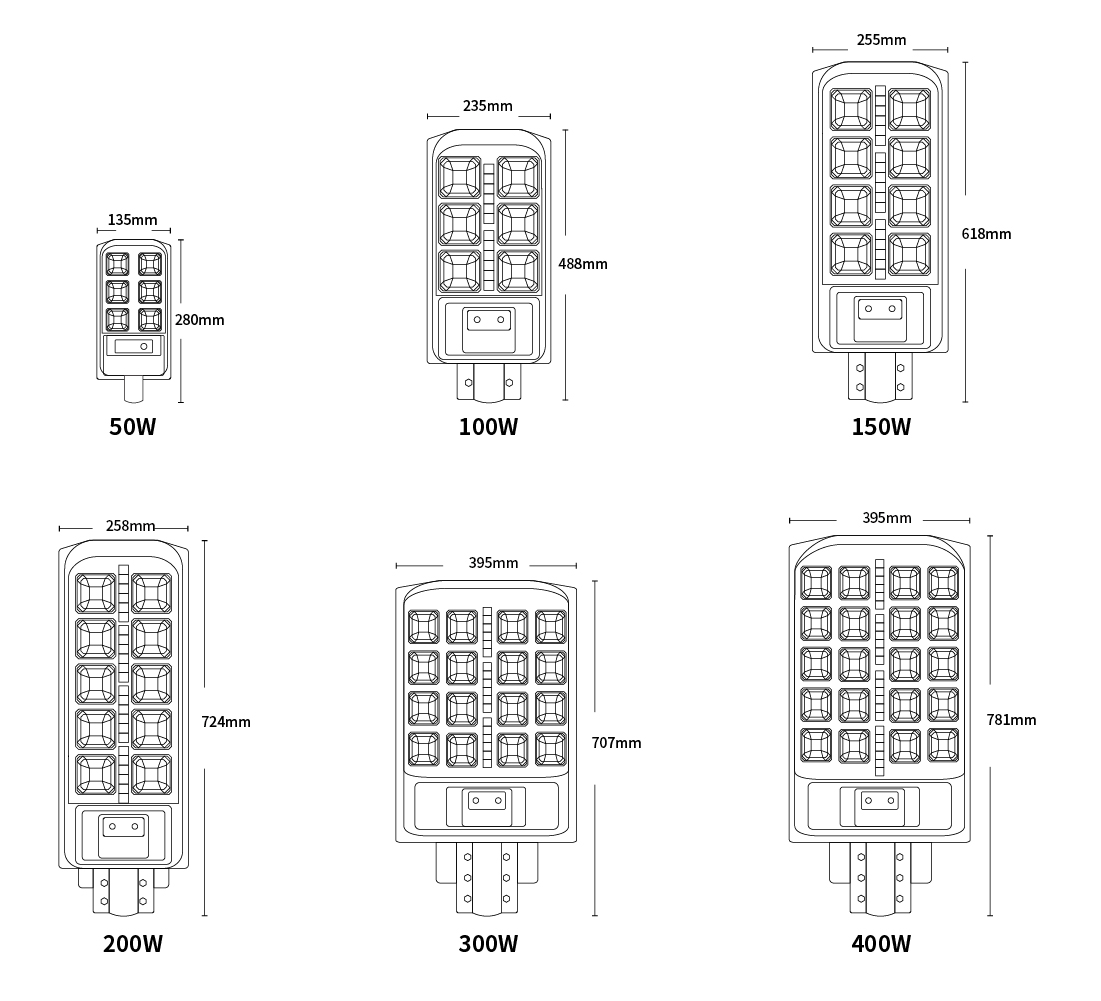

⇒Detailed specifications

⇒Product details

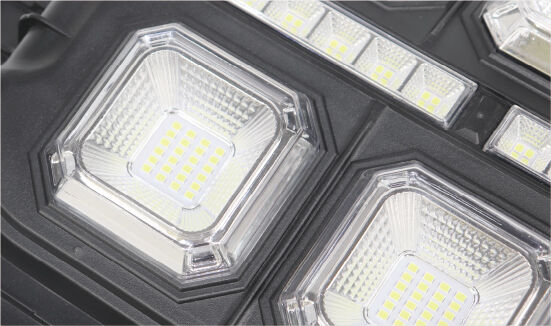

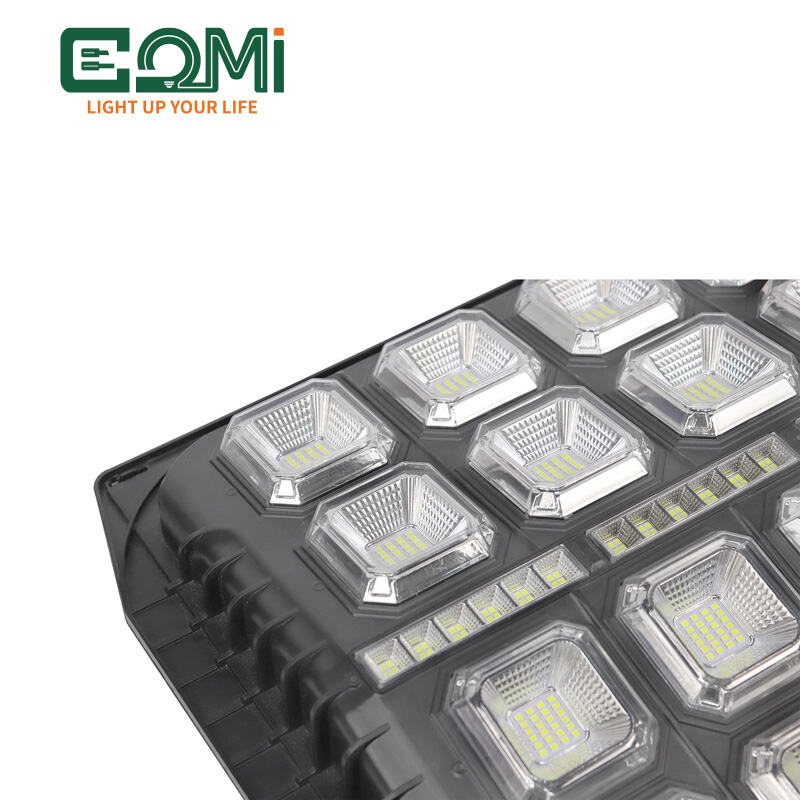

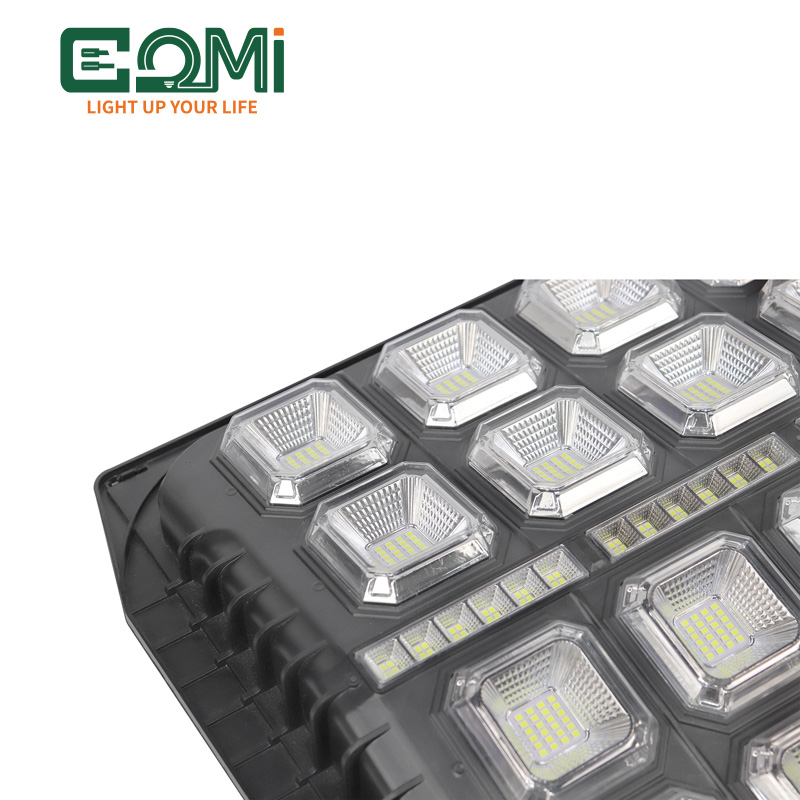

Wide-angle deep-lens lighting for a wider and clearer illumination: The three-sided lighting design combined with the deep-lens structure significantly expands the illumination range, while the deep-lens focusing effect results in superior light emission, producing uniform and bright light.

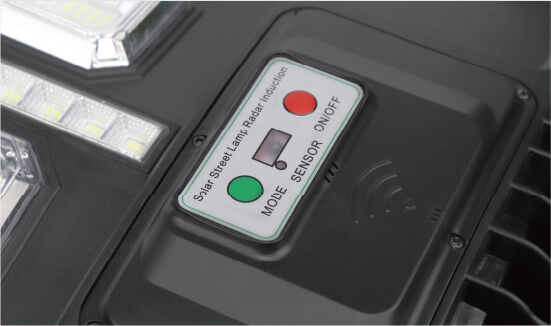

	10-12 meter radar sensor for more sensitive and intelligent distance recognition: Equipped with a 10-12 meter long-range radar sensor, it has a wide sensing range and more sensitive response, quickly switching lighting modes for safer nighttime travel.
Snap-on mounting + removable battery for easier installation and maintenance: The solar panel uses a snap-on fixing design, ensuring a firm and secure connection, and making it more durable and wind-resistant for outdoor use.

⇒How to install and use street lights?

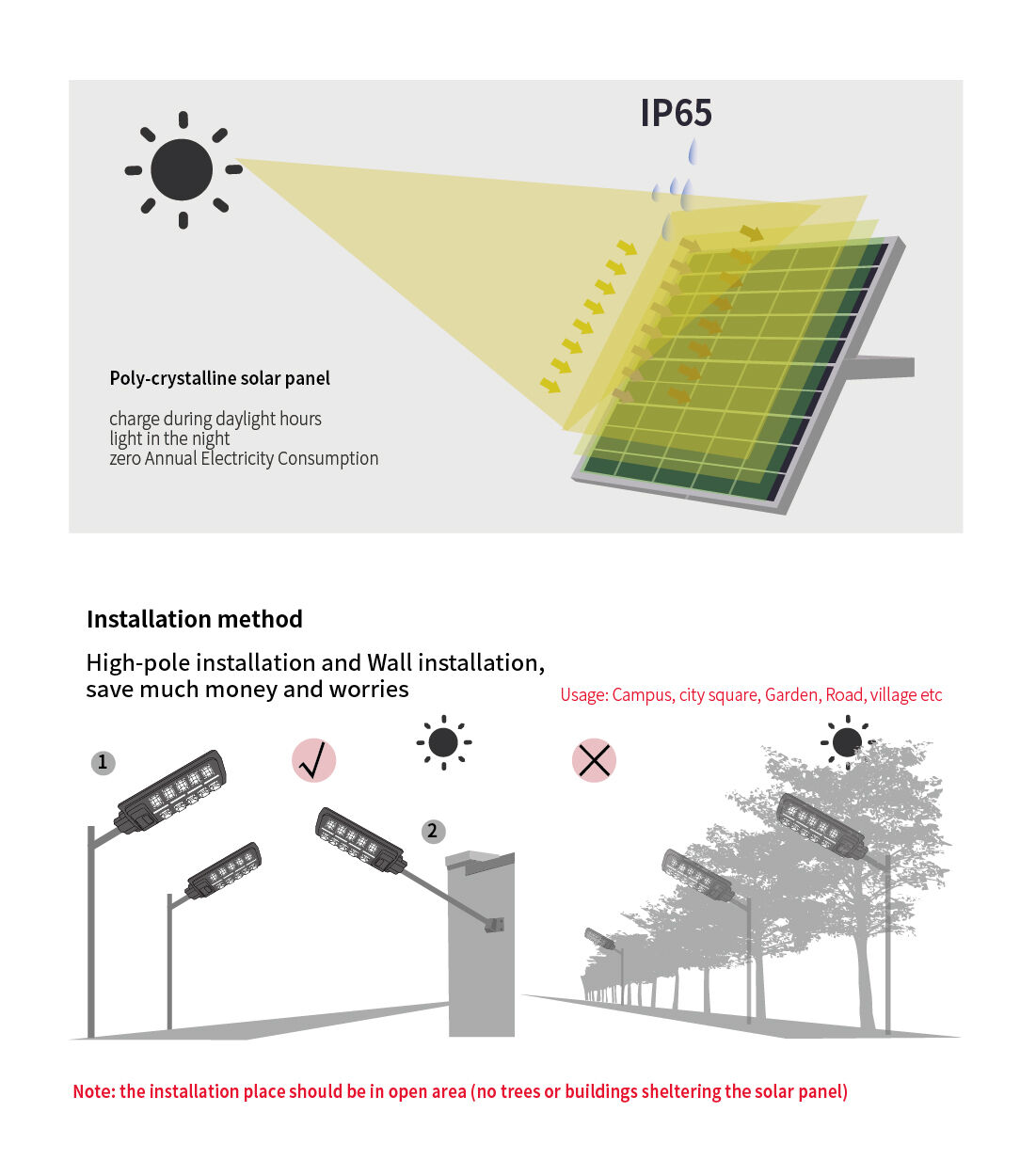

Installation mode

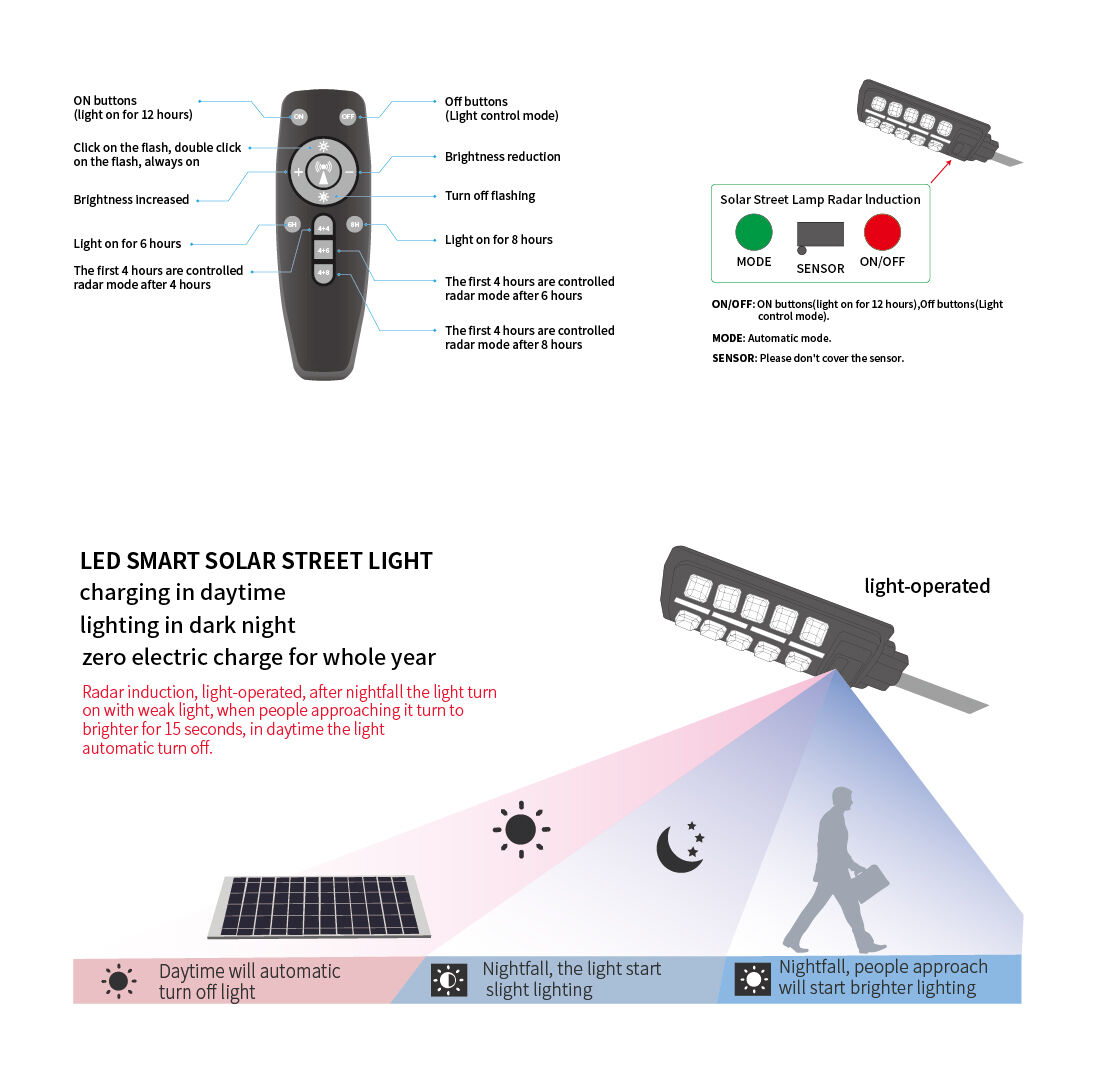

⇒Work mode

1:Light control basic mode

    The lights automatically turn off during the day and the device enters charging mode.

    The lights will turn on automatically when night falls.

Note: This is the device's default mode. Press the OFF button on the remote control to activate it.

2:Radar sensing enhancement mode

    After starting at night, it operates in radar-triggered mode for the first 4 hours: it automatically switches to strong light when human activity is detected, and maintains weak    light when no one is around.

     After 4 hours, depending on the remote control settings, it can continue to operate in radar mode for 6/8 hours, or directly switch to constant light/low light mode.

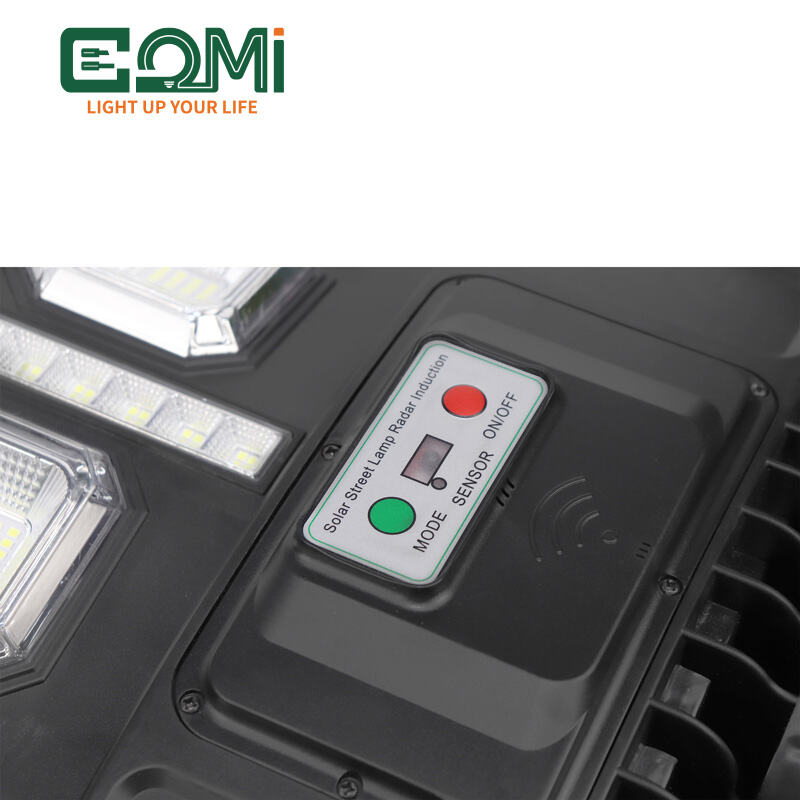

     The sensing range is achieved by a 10-12 meter radar sensor. Be careful not to obstruct the sensor area.

3:Always-on mode

    Repeatedly clicking the lightning bolt icon on the remote control will force the light fixture into a constant-on state, unaffected by light control and radar sensing.

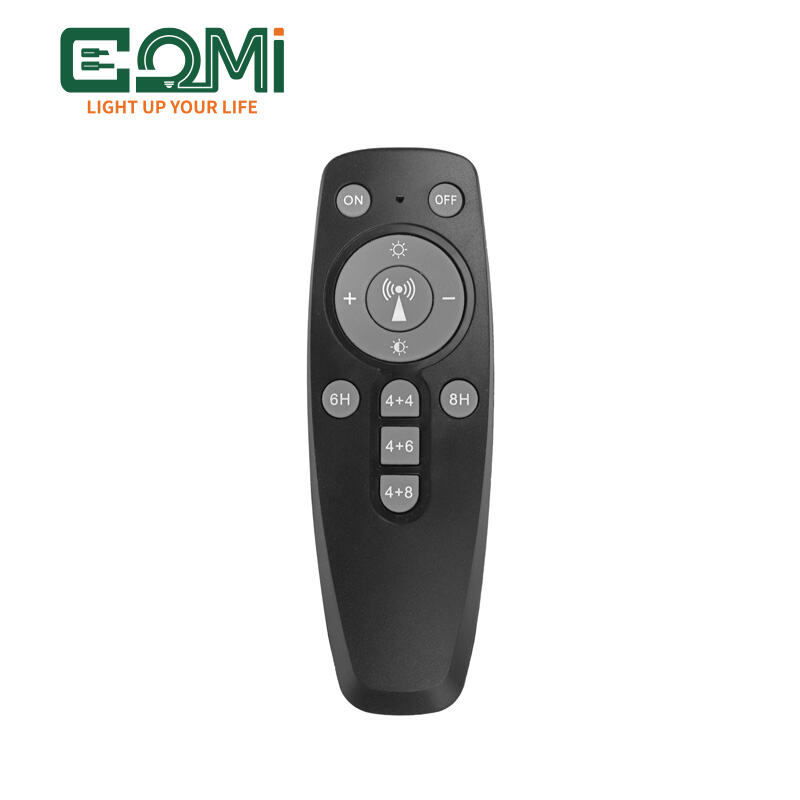

⇒Remote Control User Manual

button area	Function Description
ON / OFF	- ON: Forces the always-on mode to be activated, lasting for 12 hours.
	- OFF: Switch to automatic light control mode
Brightness adjustment area	- +: Increase brightness
	- -: Reduce brightness
Lightning icon key	- Click: Enable blinking mode
	Double-click: Enter constant-on mode
Timer mode button	Click again: Turn off flashing
	- 6H: Always on for 6 hours
	- 8H: Always on for 8 hours
	- 4+6H: Radar sensing for the first 4 hours, then constant illumination for the next 6 hours.
	- 4+8H: Radar sensing for the first 4 hours, then constant illumination for the next 8 hours.

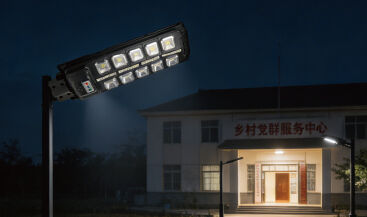

⇒Application scenarios

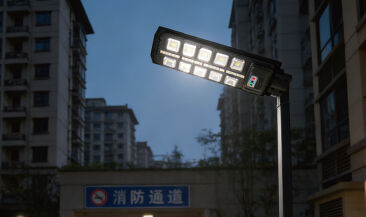

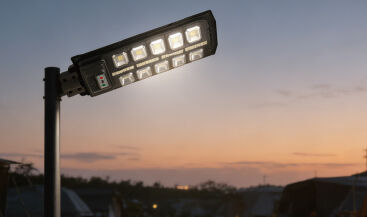

Courtyard: The lights automatically turn on when you take a walk at night or when visitors arrive, balancing safety and energy saving. The brightness can also be flexibly adjusted by remote control.	Community walkways: Quick installation without wiring; bright lights are automatically triggered when residents return home late or cyclists pass by, enhancing safety during nighttime travel.	Factory/Park Walkways: Automatically switch to high-intensity lighting during nighttime inspections and temporary passage, and maintain low-intensity lighting during off-peak hours, meeting security needs while reducing electricity costs.

⇒More street light designs to develop！

Size and Structure: Lamp body size, lamp mold, mounting device and accessories can be customized. Optical Performance: Beam angle, color temperature (2700K-10000K), color rendering index (CRI>80/90/95Ra), etc. can be customized. Drive function : Intelligent drive: Customizable light control/time control switch , multiple switching and dimming modes. Energy efficiency: Customizable high conversion efficiency, high power factor (PF) power supplies.

Packaging and Labeling: Small-batch packaging design, brand label printing, custom surface treatment Brand promotional materials: product manuals, brochures, display rack design and production Gifts: Customized branded tote bags, hats, display props Visual systems: Brand logo printing, customized product color schemes.

⇒Frequently Asked Questions (FAQ)

Q1: Under what circumstances should an integrated solar street light be selected?

A1: Employing microwave radar sensing technology, it detects the Doppler effect caused by human movement within a range of 10-12 meters by transmitting and receiving microwave signals, accurately identifying dynamic human bodies and triggering light mode switching. Non-moving objects will not trigger the light falsely, making the sensing more accurate.



Q2: What is the difference between radar sensing and ordinary infrared human body sensing?

A2: Radar sensing is not affected by ambient temperature or light, has a long sensing distance and wide angle, and can sense through walls and glass. It can also work stably in outdoor rainy or foggy weather. Infrared sensing is easily affected by temperature interference, and its sensing range and sensitivity are limited.
