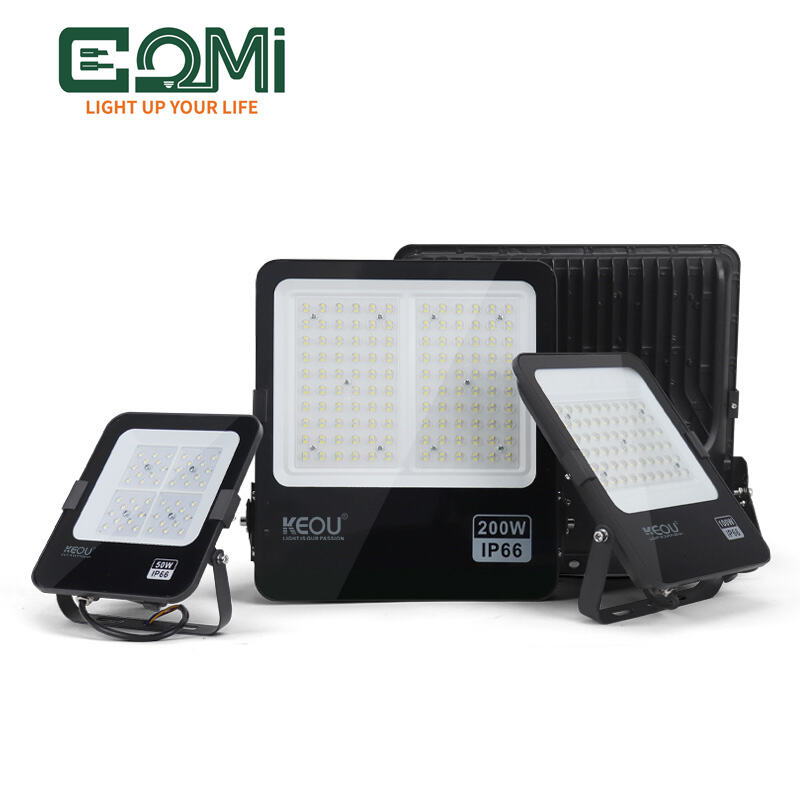

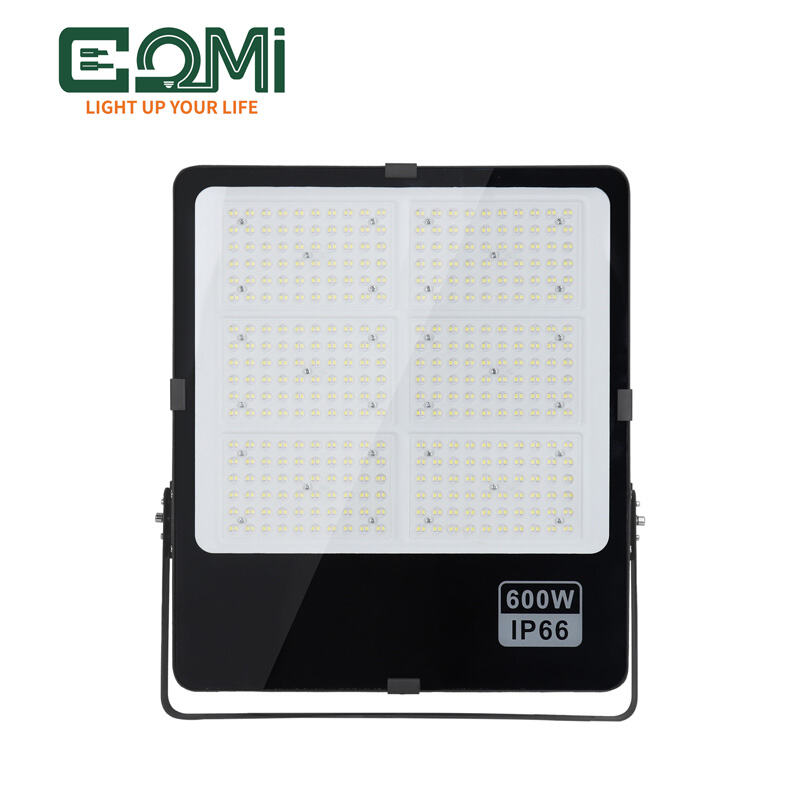

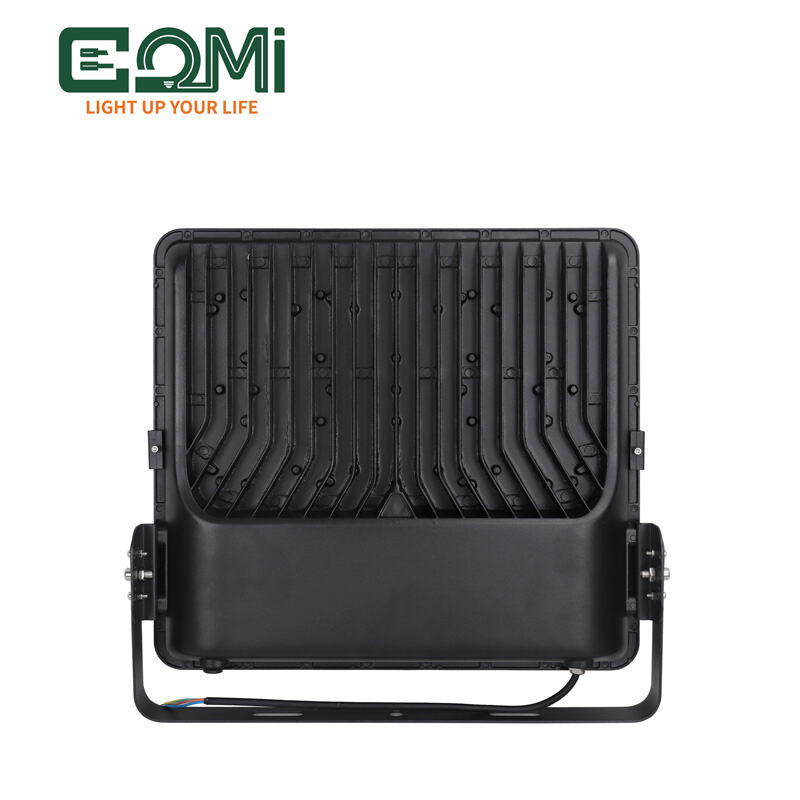

Outdoor Engineering-Grade IP66 Led Flood light

Outdoor Engineering-Grade IP66 Led Flood light

Product Model: KEOU -FL30

Wattage: 50W 100W 200W 300W 400W 600W

Materials: Die-cast aluminum + tempered glass

Thickness: 41mm-60mm

Color: Black casing

Waterproof: IP66 rating

LED chips: 2835/3V/1W 6V-2835, CRI>80, overall luminous efficacy 90LM/W

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our ultra-thin flood light

Mid-to-high-end outdoor engineering-grade lighting: High thermal conductivity die-cast aluminum + IP66 protection + 4KV surge protection, easily cope with various complex environments; 2835 light source with professional optical design, outstanding light effect and durable, making it a cost-effective choice for large-scale outdoor projects.

⇒Detailed specifications

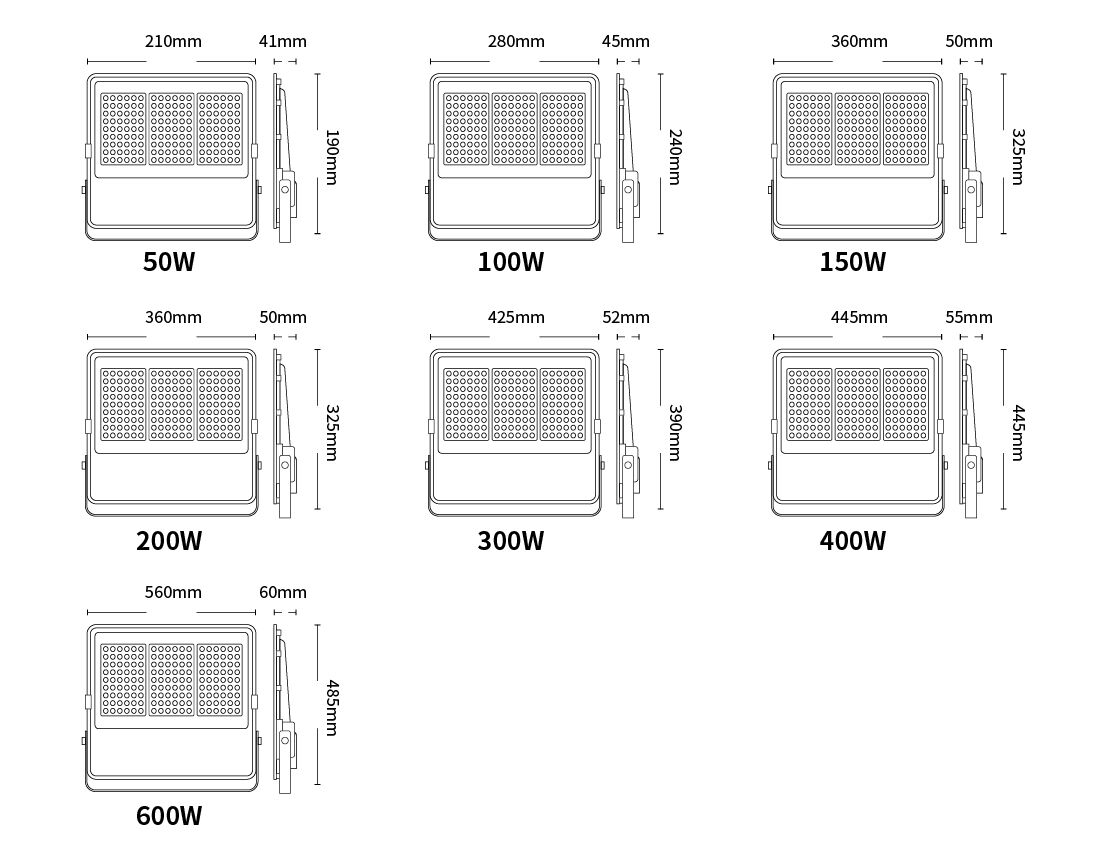

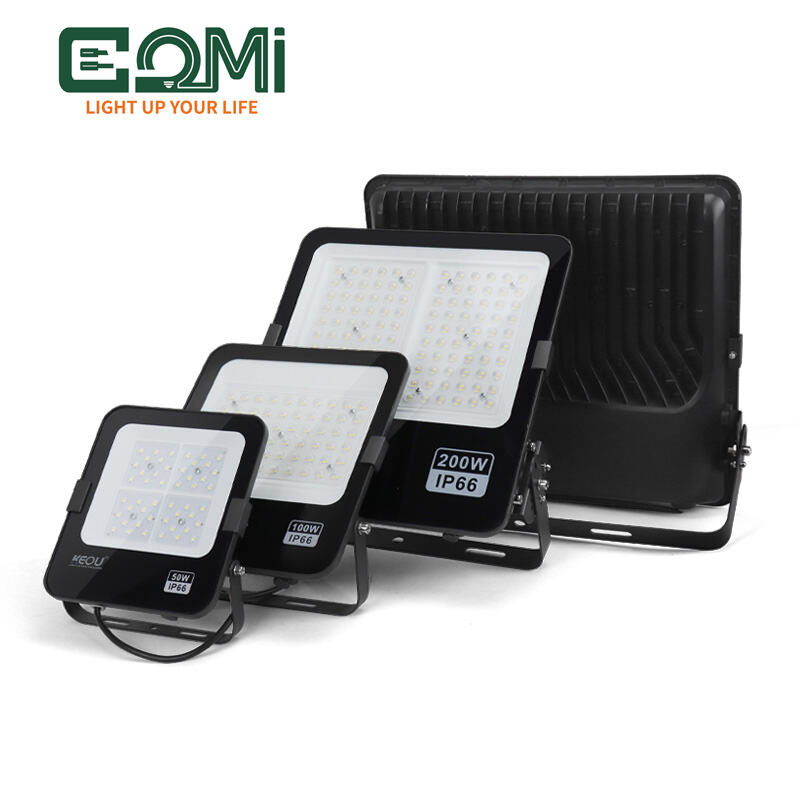

Model number	Power	Size	IP	Luminous flux
KEOU-FL30-50W	50W	210x190x41mm	66	5000lm
KEOU-FL30- 100W	110W	280x240x45mm	66	10000lm
KEOU-FL30- 200W	200W	360x325x50mm	66	20000lm
KEOU-FL30- 300W	00W	390x425x52mm	66	30000lm
KEOU- FL30-400W	400W	445x445x55mm	66	40000lm
KEOU-FL30- 600W	600W	560x485x60mm	66	60000lm

⇒Product details

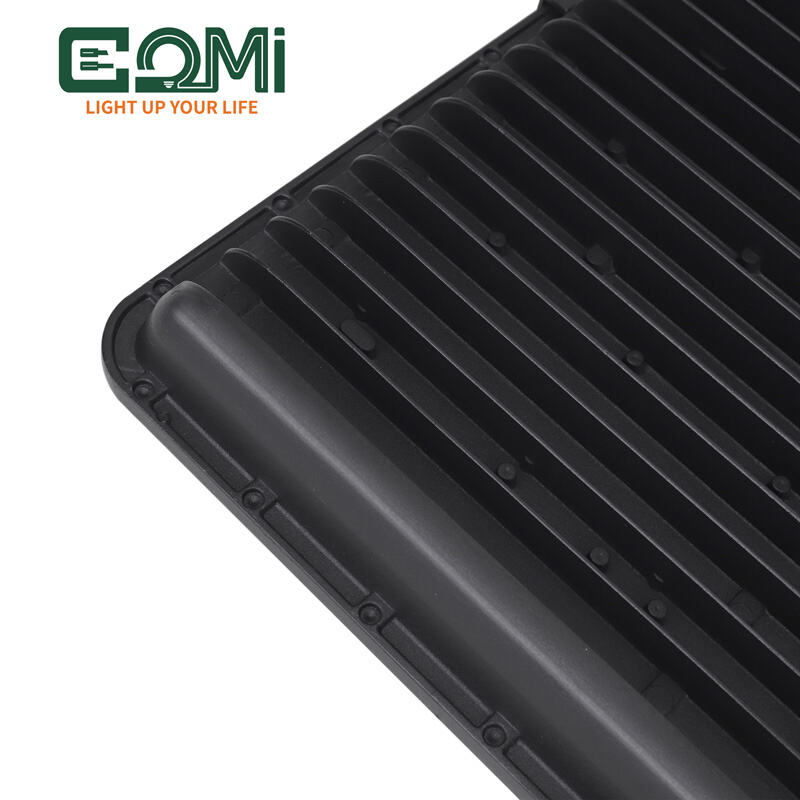

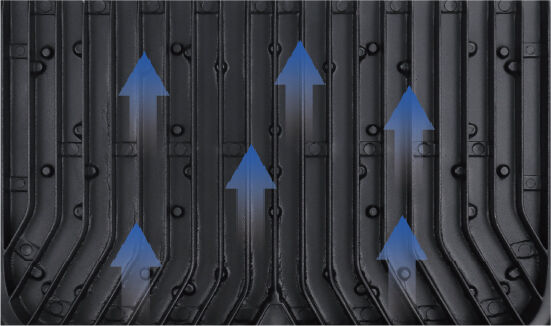

All-aluminum heat dissipation + durability and stability: The all-aluminum casing provides efficient heat dissipation and resists light decay, ensuring long-term stability and durability of the lamp.

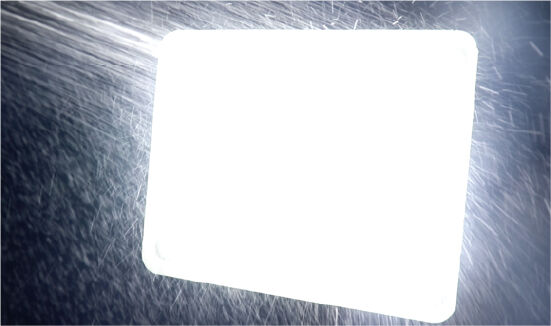

	IP66 Protection + Outdoor Adaptability: IP66 waterproof and dustproof rating, fearless of harsh outdoor environments, stable and reliable operation.

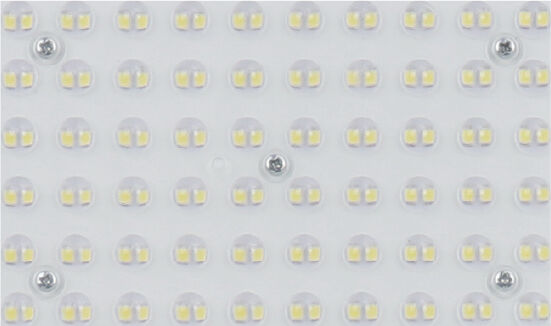

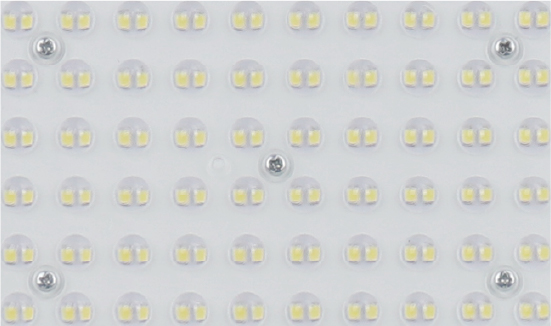

High luminous efficacy and uniform light + high color rendering: High-density SMD LED chips, 100LM/W, high luminous efficacy CRI>80, uniform light with no dark areas.

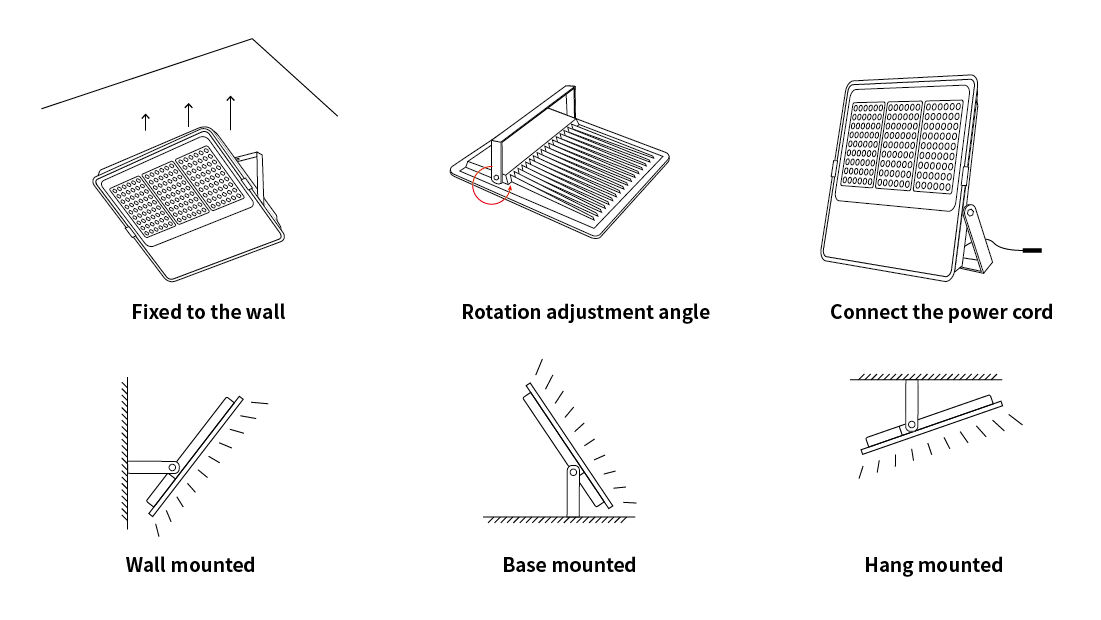

⇒How to install and use flood lights?


Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

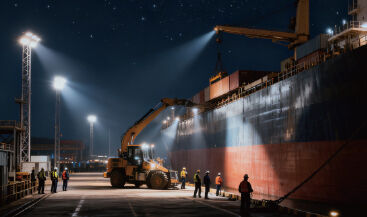

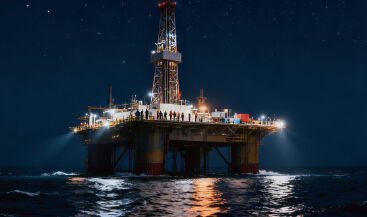

Offshore platform lighting applications: Floodlights illuminate the sea surface and the bottom of the platform, providing safe lighting and area surveillance for nighttime operations.	Port and dock lighting applications: Floodlights cover the entire dock operation area, becoming the core lighting facility for port operations at night.	Lighting application in mining areas: High-mast floodlights are deployed around the mining area to fully cover the working face, serving as the main source of lighting for nighttime mining.

⇒More Flood light designs to develop！

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. Why should dedicated floodlights be selected for engineering scenarios?

A1: Engineering scenarios have high requirements for durability and stability. This light has a high standard configuration (IP66 protection + surge protection), is suitable for complex environments, and can ensure long-term stable lighting.

Q2. How are the lighting effects and color rendering?

A2: The overall lighting effect is 100LM/W, CRI>80, with uniform light and high color reproduction.

Q3. Can this lamp adapt to the voltage environment of different projects?

A3:It supports a wide voltage range of AC85-265V, ensuring stable operation in engineering scenarios worldwide, and is a basic configuration for high-standard engineering lights.
