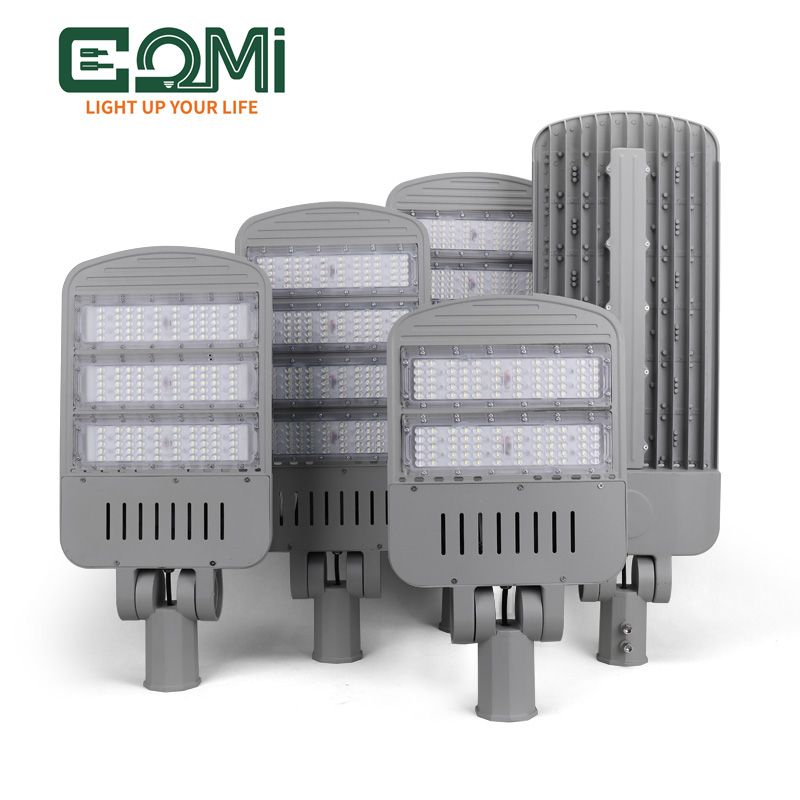

Adjustable 180-Degree Rotating Led Street Light

Product Model: KEOU -LD017

Wattage: 100W 150W 200W 250W 300W 400W

Materials: Die-cast aluminum + PC

Thickness: 75mm

Color: Light gray casing

Waterproof: IP66 rating

Required field: (Minimum order quantity: 500>=)

adjustable 180 degree rotating led street light-0

Introduction

⇒Learn more about our adjustable street light

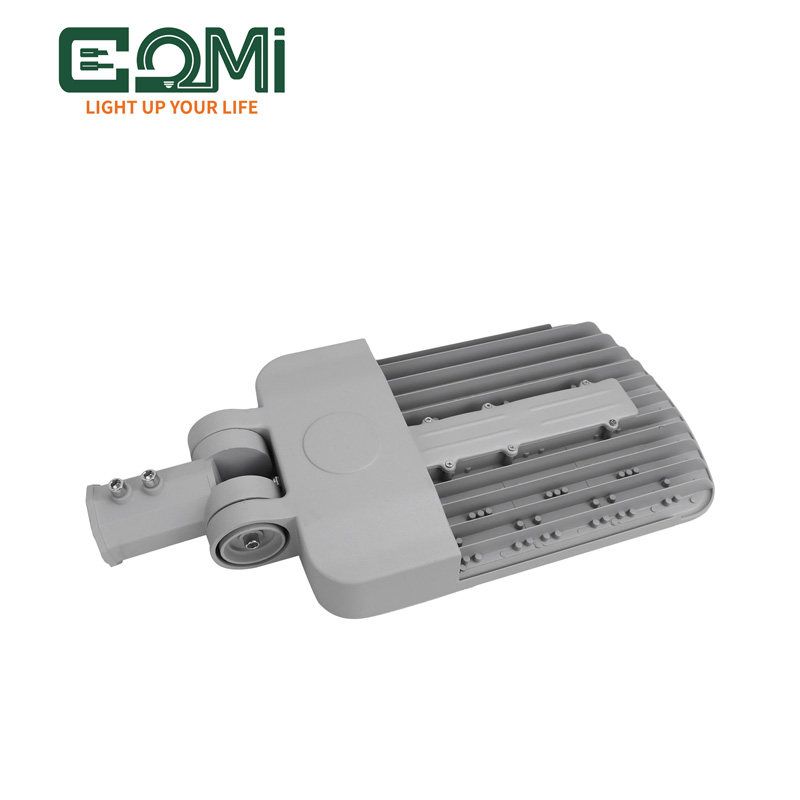

This streetlight features a die-cast aluminum + PC composite housing. It boasts IP66 waterproof rating, overcoming the stability limitations of traditional outdoor lighting fixtures. Its 180-degree rotating adjustment design allows for precise adaptation to different lighting angles in various scenarios. A dual cooling system combining strong convection and a turbine, coupled with a high-specification isolated wide-voltage driver, delivers uniform light output, long lifespan, and reliable safety. Combining practicality and adaptability, it is the preferred lighting solution for diverse outdoor scenarios.

⇒Detailed specifications

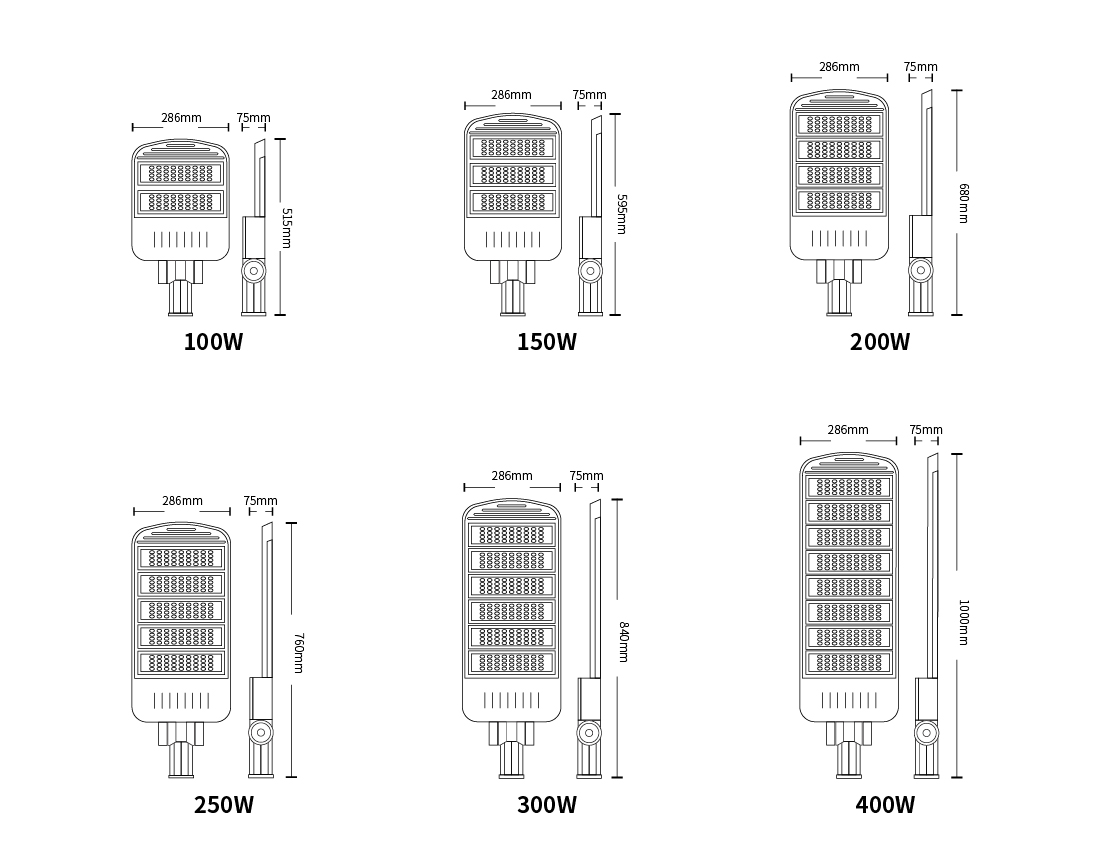

Model number

Power

Size (mm)

IP

Luminous flux

KEOU-LD017-100W 100W 515x286x75 66 10000lm
KEOU-LD017-150W 150W 595x286x75 66 15000lm

KEOU-LD017-200W

200W

680x286x75 66 20000lm

KEOU-LD017-250W

250W

760x286x75 66 25000lm

KEOU-LD017-300W

300W

840x286x75 66 30000lm

KEOU-LD017-400W

400W

1000x286x75 66 40000lm

⇒Product details

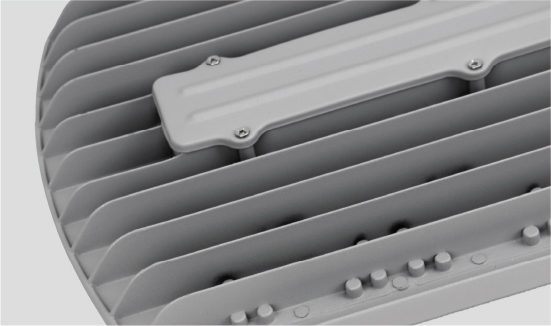

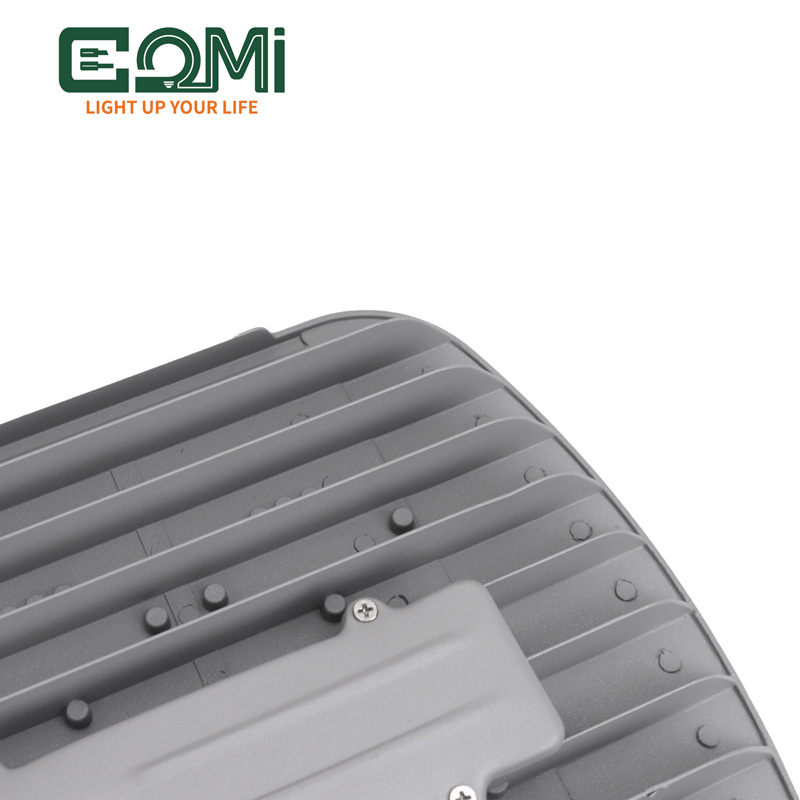

IP66 waterproof, precision-cast aluminum alloy with baked enamel finish, oxidation & corrosion resistant. Strong convection + turbine dual heat dissipation, flame-retardant, colorant , long service life. 2-产品特点(1).jpg

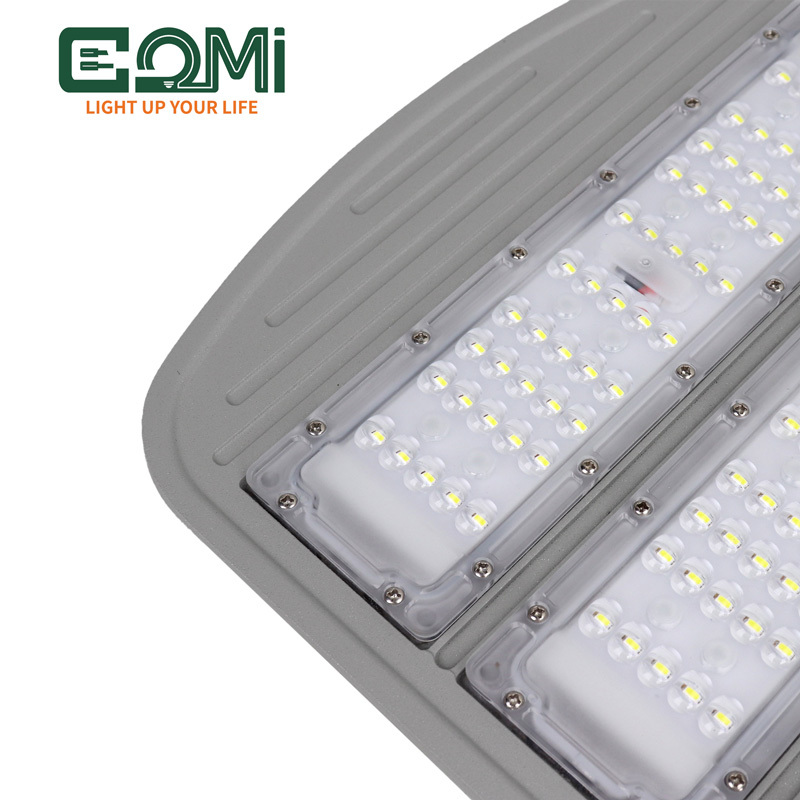

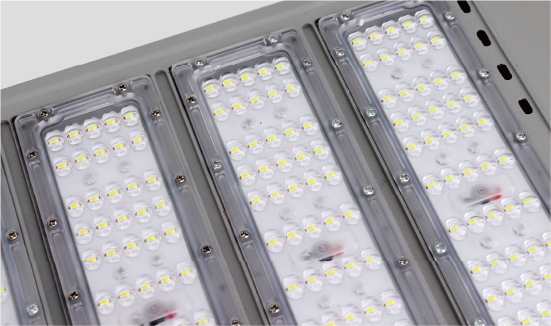

2-产品特点(2).jpg High-performance led chip with stable, efficient illumination. Isolated wide-voltage driver (global voltage compatible), multi-protection for safe & reliable operation.

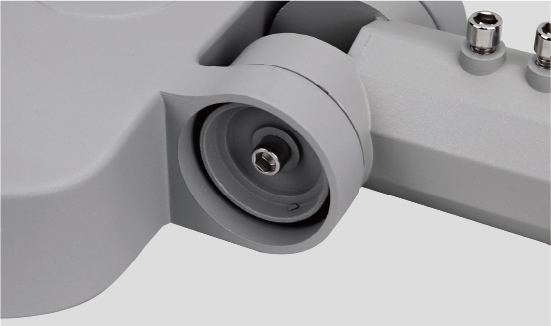

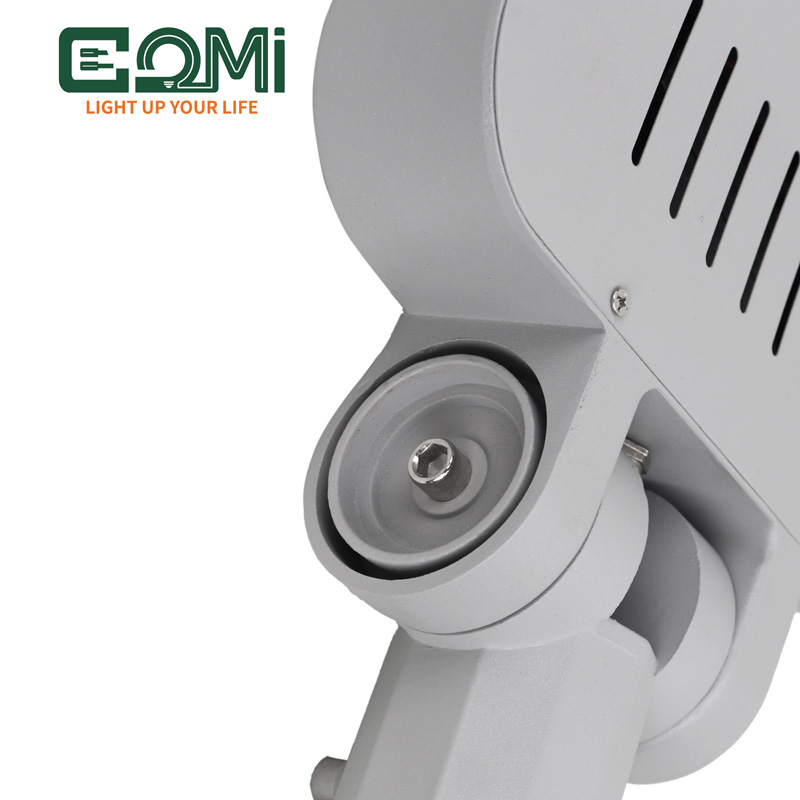

180° rotatable adjustment for flexible angle selection, fixed firmly without shifting, suitable for diverse installation scenarios. 2-产品特点(3).jpg

⇒How to install and use street lights?

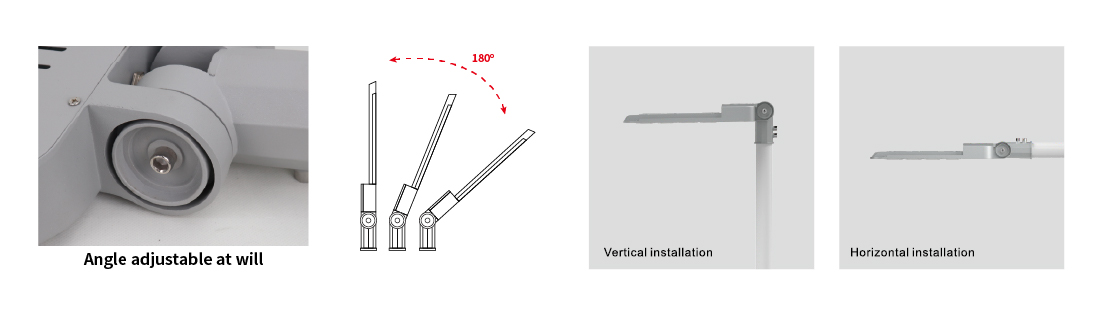

Installation method

Pole Mounted

here are two angles to choose from: horizontal installation and vertical installation.

The angle of the lamp head can be flexibly adjusted between horizontal and vertical to meet different lighting direction requirements.

Wall Mounted

Directly installed on the wall, suitable for scenes such as community alleys and building exteriors.

Also supports adjusting the angle of the lamp head.

⇒Application scenarios

4-应用场景1.jpg 4-应用场景2.jpg 4-应用场景3.jpg

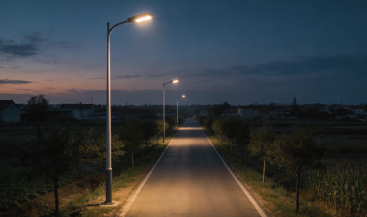

Single-pole street lamps provide basic road surface lighting, ensuring the safety of pedestrians, non-motor vehicles and a small number of vehicles traveling at night.

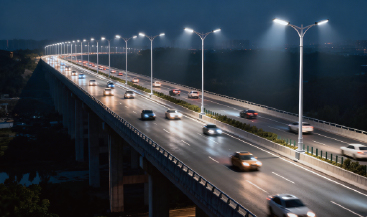

High-pole street lamps with double lamp heads deliver high-brightness, wide-range uniform illumination, meeting the visual needs of high-speed driving and reducing the risk of rear-end collisions caused by insufficient light.

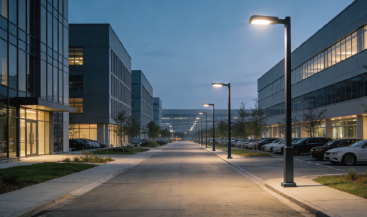

Medium-pole street lamps cast soft and uniform lighting on footpaths for employees who work overtime or commute at night, preventing bumps and falls.

⇒More street light designs to develop!

定制服务户外.jpg 定制服务 - 副本.jpg

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1.What are the practical benefits of 180° rotation adjustment?

A1: The lighting direction can be flexibly switched according to the scene. For example, the angle can be switched to illuminate the running track or stands in a school playground, the corners of community roads can be adjusted to avoid blind spots, and the work area or passageway in a factory can be illuminated as needed. One lamp can meet the lighting needs of multiple areas and multiple angles without the need for additional adaptation of different lamps.

Q2. Does installation require a professional?

A2: Professional electrician installation is recommended, as it involves wiring and working at heights, ensuring greater safety and compliance with regulations. The light fixture comes with a complete set of accessories and instructions, allowing professionals to complete the installation quickly. It is not recommended for non-professionals to attempt installation themselves.
