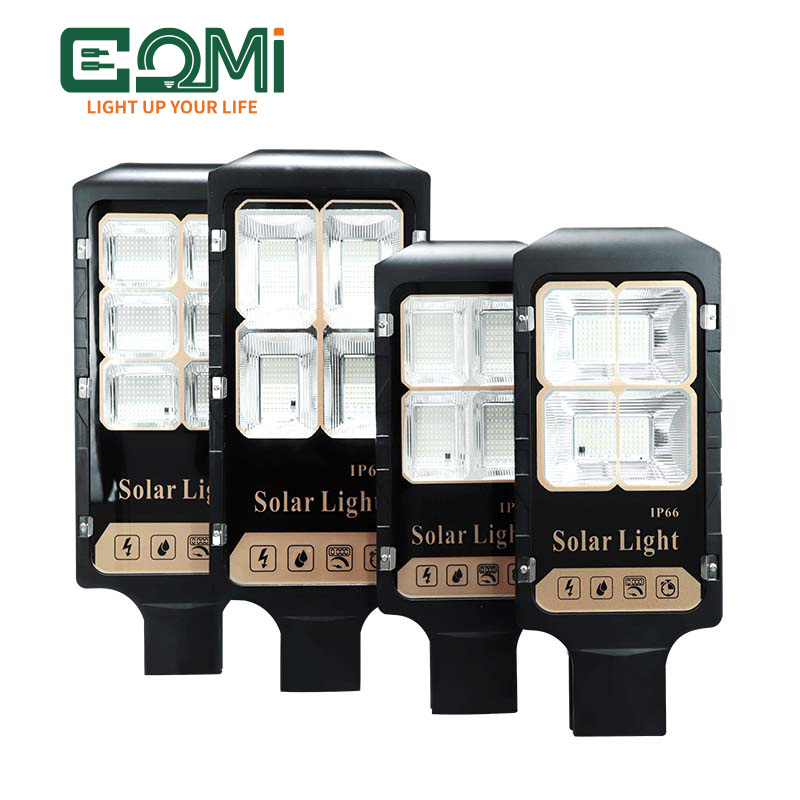

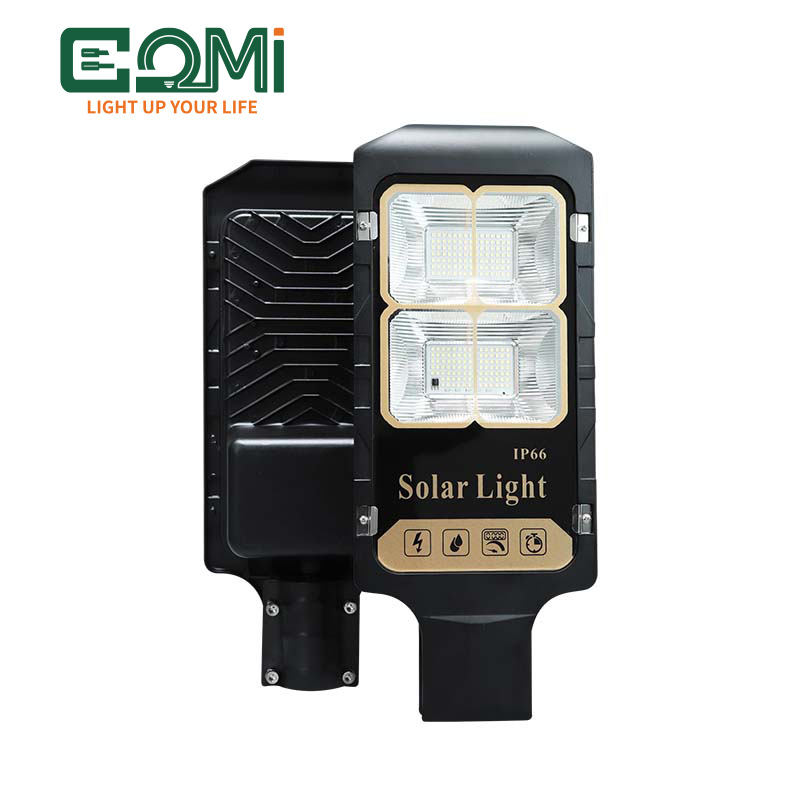

Split-Type Glass Solar Street Light

Product Model: KEOU-LD010

Product wattage: 100W 200W 250W 300W

Materials: Die-cast aluminum + tempered glass casing

Waterproof rating: IP66

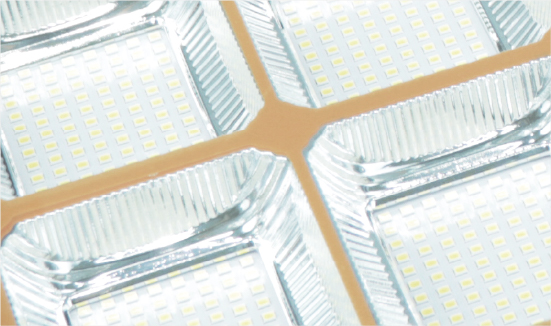

LED chips: 2835/1W Ra80

Control method: Light-controlled sensor + remote control

MOQ:500>=)

Introduction

⇒Learn more about our street light

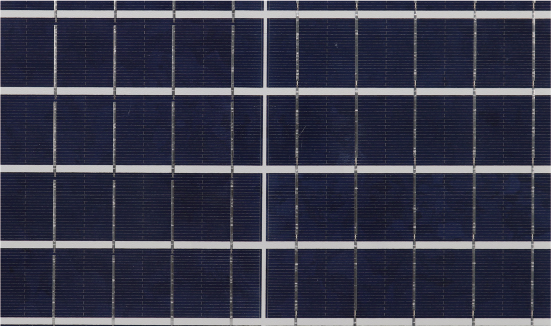

This integrated solar street light is designed specifically for outdoor use, featuring an aluminum shell and glass lampshade. It operates fully automatically without the need for wiring. The aluminum shell is waterproof, corrosion-resistant, and has excellent heat dissipation, while also providing IP66 dust and water resistance. The glass lampshade offers excellent light transmission and is weather-resistant and wear-resistant, extending the overall lifespan of the unit. High-efficiency polycrystalline silicon solar panels enhance charging efficiency, and the light is resistant to outdoor sun and rain. It offers convenient dual control via light control and remote control, allowing for charging during the day and automatic lighting at night. Imported LED chips are energy-efficient, environmentally friendly, have high color rendering, low power consumption, and long lifespan. Combined with a deep lens and dual-angle design, it provides wide illumination and clear light, making it one of the most cost-effective outdoor lighting products.

⇒Detailed specifications

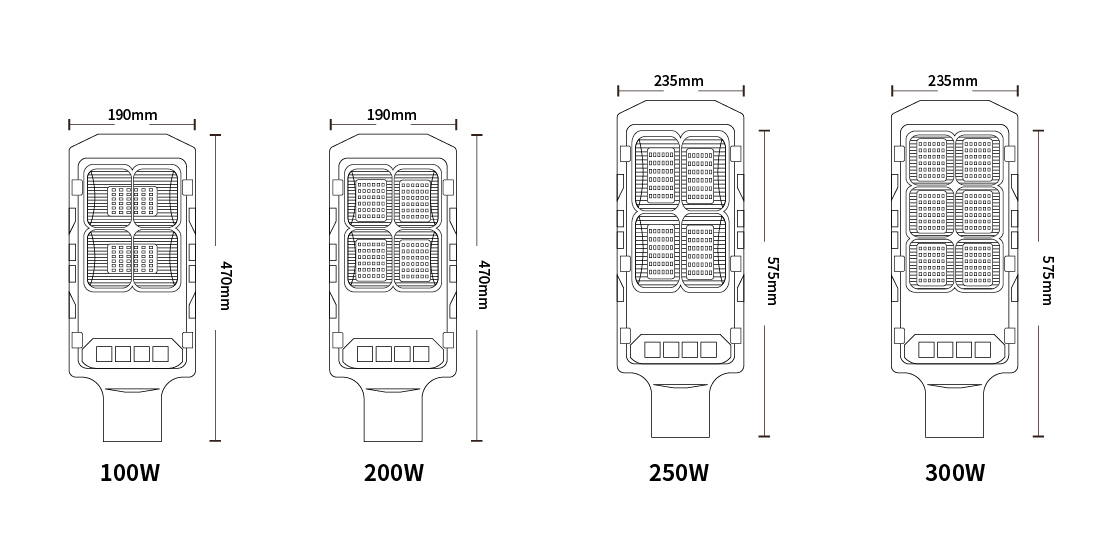

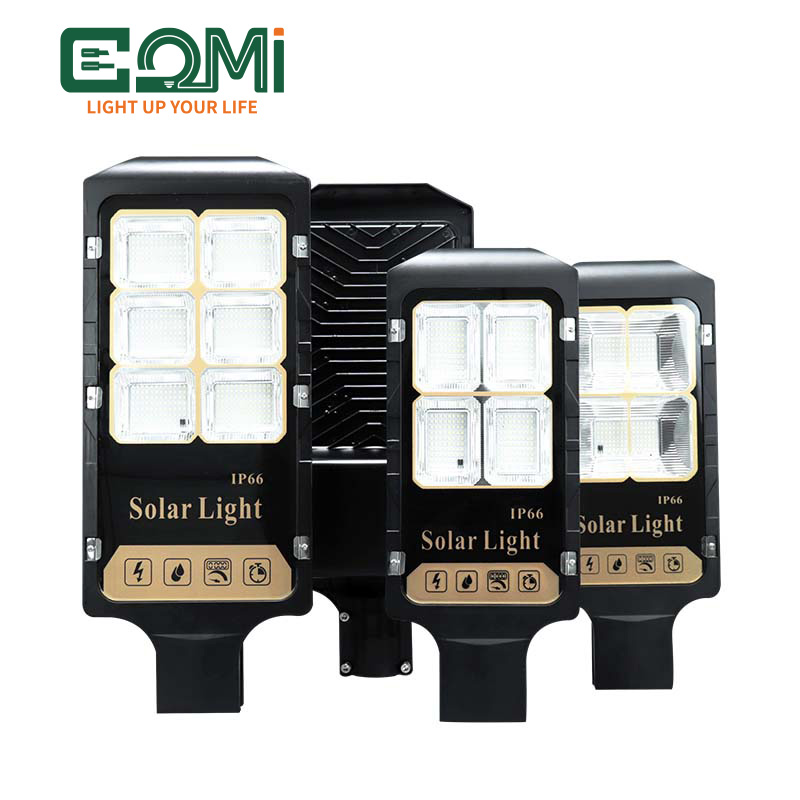

Model number	Power	Size (mm)	IP
KEOU-LD010-100W	100W	470x190x90	66
KEOU-LD010- 2 00W	200W	470x190x90	66
KEOU-LD010- 25 0W	250W	575x235x90	66
KEOU-LD010- 30 0W	300W	575x235x90	66

⇒Product details

Waterproof and isolated connector: uses industrial-grade thick wire and strictly waterproof plug.
	High-quality tempered glass: high temperature resistant, with a light transmittance of up to 99%.

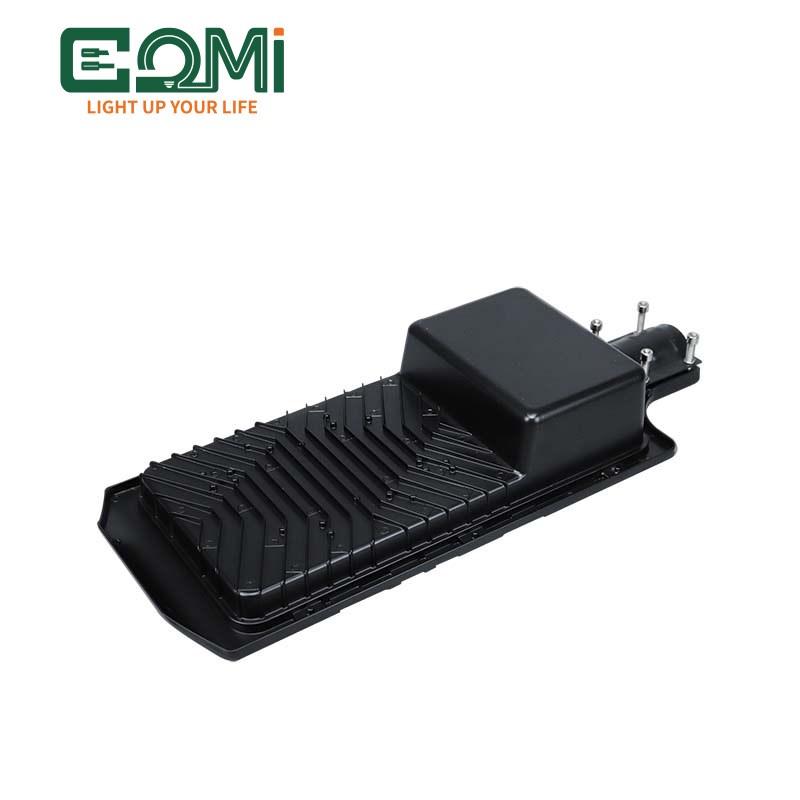

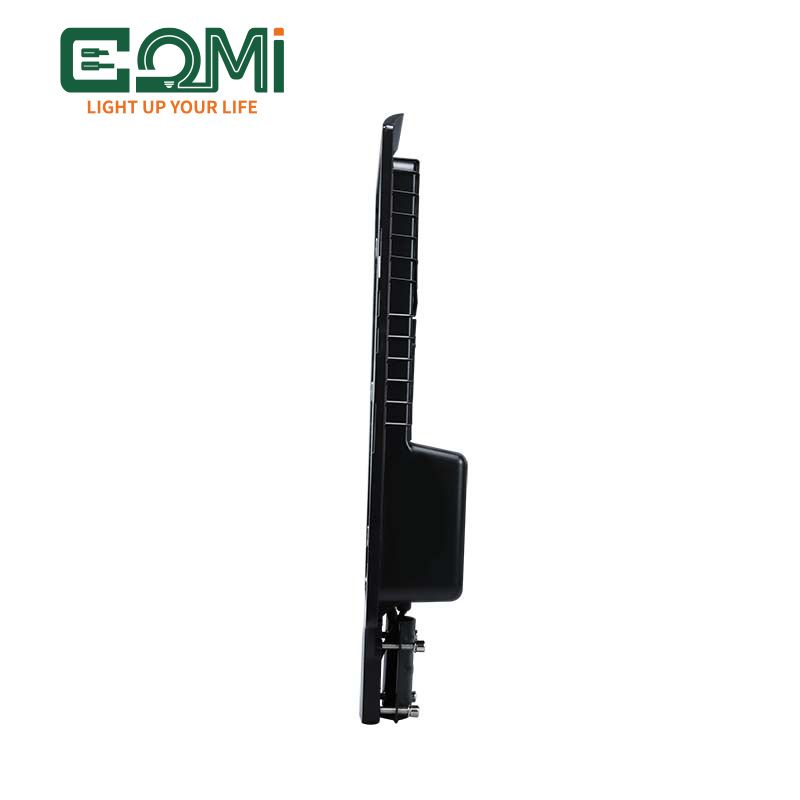

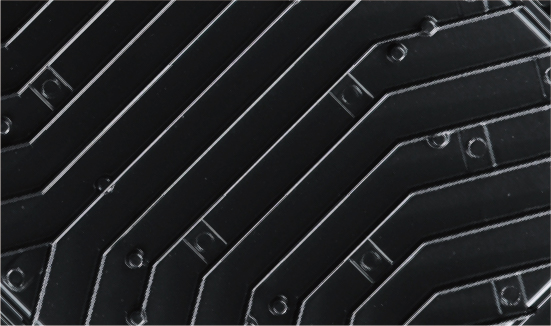

Lamp body: Precision die-cast aviation aluminum, high hardness, and rapid heat dissipation.

⇒How to install and use street lights?

Installation mode

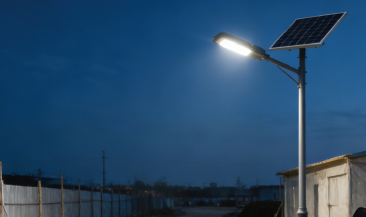

High pole installation

Wall installation

Fixture installation

Fixing the photovoltaic panel: Use the matching bracket to install the photovoltaic panel on the top/upper part of the light pole, facing south without obstruction, and lock it after adjusting the light-receiving angle;

Fixing the lamp body: Install the lamp body in the lower part of the lamp post, adjust the lighting angle, and lock it in place with fasteners;

Wiring sealing: Align and plug in the waterproof connectors of the photovoltaic panel and the lamp body, tighten the waterproof nuts, and use cable ties to organize the wiring to prevent pulling.

Debugging and inspection: Confirm that the lamp body and photovoltaic panel are stable, test the light control/remote control function, and the lamp is ready when it can charge during the day and light up at night normally.

Fixing the light fixture: Drill holes in the wall, insert expansion tubes, and use expansion screws to lock the light fixture bracket in place. Adjust the lighting angle and then reinforce it.

Solar panel mounting: Use expansion bolts to fix the solar panel bracket to a nearby open south-facing wall using the same method, adjust the light-receiving angle, and tighten.

Tighten the waterproof connectors and tidy the wiring; check for stability and test the lighting function.

Fixing the lamp body: Place the special clamp (hoop) on the utility pole/post, tighten the lamp body bracket, and then tighten the clamp screws. Adjust the lighting angle.

Photovoltaic panel fixing: Use clamps to fix the photovoltaic panel bracket to the same side/adjacent column structure (facing south without obstruction), adjust the light-receiving angle and lock it in place;

Tighten the waterproof connectors and use cable ties to organize the cables and prevent them from being pulled.

Once all clamps are checked and found to be secure, the lighting function test is complete.

Note: Integrated solar streetlights ensure that the back of the solar panel is unobstructed.

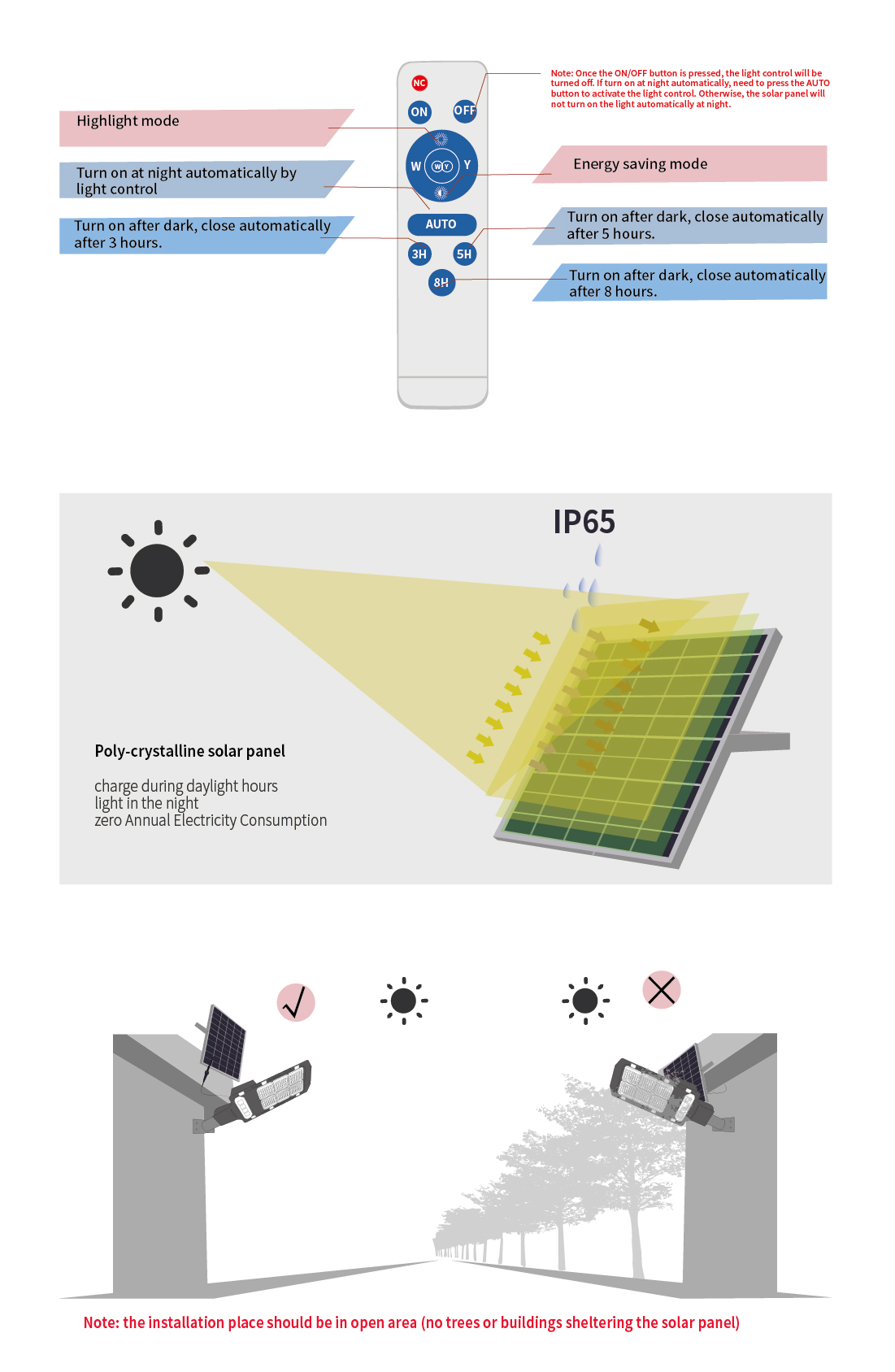

⇒Work mode

1. Default automatic mode - light control sensor

Features: Automatic charging during the day and automatic lighting at night, achieving zero annual power consumption.

Activation: Press the "Auto" button on the remote control to activate the automatic night light function upon first use.

2. Remote control operation mode

High brightness mode: One-click to turn on the highest brightness to meet high-brightness lighting needs.

Energy-saving mode: Low power consumption operation, balancing energy saving and basic lighting.

Timer mode: Supports 3H/5H/8H timers, automatically turns on after dark and turns off after the corresponding duration.

Note: Pressing the "On/Off" button on the remote control will turn off the automatic mode; to restore the automatic night light, you need to press the "Auto" button again.

⇒Application scenarios

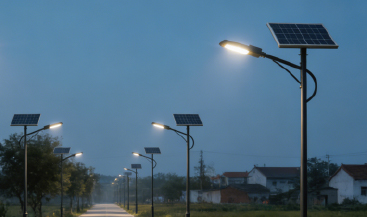

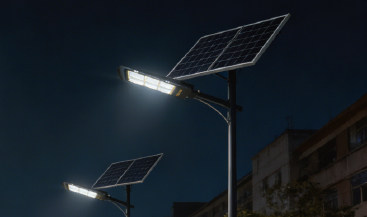

Rural roads: Adaptable to environments without wiring, photovoltaic panels allow for flexible selection of light-gathering points, ensuring lighting for nighttime travel.	Campus/School Campus: The split layout adapts to the building plan and meets the requirements for large-scale lighting of walkways and playgrounds.	Courtyard/Factory Area: Install photovoltaic panels in open areas, and place lights at fixed points to balance lighting and aesthetics.

⇒More street light designs to develop！

Size and Structure: Lamp body size, lamp mold, mounting device and accessories can be customized. Optical Performance: Beam angle, color temperature (2700K-10000K), color rendering index (CRI>80/90/95Ra), etc. can be customized.

Drive function : Intelligent drive: Customizable light control/time control switch , multiple switching and dimming modes.

Energy efficiency: Customizable high conversion efficiency, high power factor (PF) power supplies.

Packaging and Labeling: Small-batch packaging design, brand label printing, custom surface treatment

Brand promotional materials: product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual systems: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1: Are glass lampshades easily broken? Are they safe to use outdoors?

A1: Made of reinforced explosion-proof glass, it has excellent impact resistance and is not easily broken by daily outdoor wind and minor collisions; it is equipped with a sealed aluminum shell and edge protection treatment, which not only avoids the risk of breakage, but also enhances the overall waterproof sealing, making it suitable for complex outdoor environments.

Q2: Is the glass version suitable for severe weather such as low temperature and heavy rain?

A2: Adaptable to all kinds of harsh weather, the tempered glass is resistant to high and low temperatures and will not crack due to severe cold and sun exposure; the aluminum shell + glass sealing design with IP66 dustproof and waterproof rating can effectively prevent leakage and corrosion in heavy rain and sandstorm weather, ensuring stable operation of LED chips and circuits.

Q3: Will the glass lampshade affect the light control sensor function?

A3: No. The light sensor is precisely embedded in the reserved position of the aluminum shell. The glass lampshade only covers the light source area and does not block the sensor from sensing light. It can normally identify the ambient brightness and realize automatic charging during the day and automatic lighting at night, combining light control and remote control functions.
