Ultra-thin integrated lens IP66 led floodlight

Ultra-thin integrated lens IP66 led floodlight

Product Model: COMI -FL15

Wattage: 30W 50W 100W 150W 200W

Materials: Die-cast housing +PC integrated lens lampshade

Thickness: 32-35mm

Color: Gray casing

Waterproof: IP66 rating

LED chips: 2835

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our lens type led floodlight

COMI lens type floodlights feature high thermal conductivity die-cast aluminum housing and diamond integrated lens, delivering soft, uniform light with no glare.Equipped with SMD2835 chips (CRI＞80, 100 lm/W) and PF 0.95 driver with dual protection, it is energy-efficient and stable.IP66 rated with 3KV (30W) / 4KV (50-200W) surge protection, suitable for all harsh outdoor conditions.Multi-chip heat dissipation ensures long service life. 180° adjustable for full-area lighting, perfect for various outdoor sites.

⇒Detailed specifications

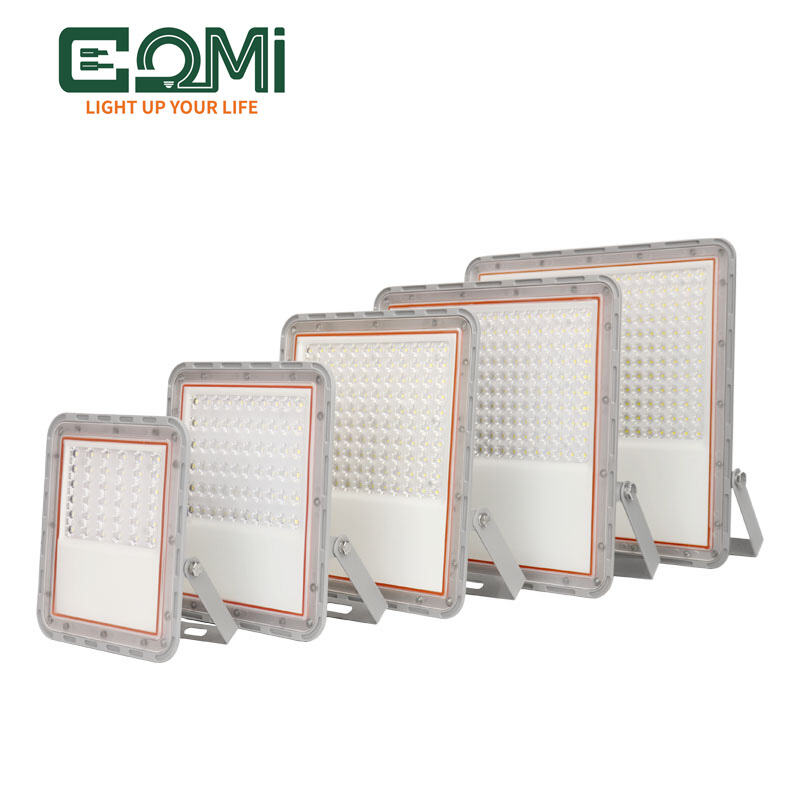

Model number	Power	Size (mm)	IP	Luminous flux
COMI -FL15 -30W	30W	158x180x32	66	3000lm
COMI -FL15 -50W	50W	186x217x34	66	5000lm
COMI -FL15 -100W	100W	225x258x34	66	10000lm
COMI-FL15 -150W	150W	272x284x35	66	15000lm
COMI-FL15 -200W	200W	314x320x35	66	20000lm

⇒Product details

Core Performance SMD2835 chips (CRI＞80) deliver high brightness and low light decay. PF 0.95 driver with overcurrent & temperature protection. IP66 rating plus 3KV/4KV surge protection guarantees stable use in harsh weather. Efficient heat dissipation extends service life.
	Practicality 180° adjustable angle for easy installation and full-range lighting. Ideal for campuses, squares, gardens, roads, construction sites and other outdoor areas.

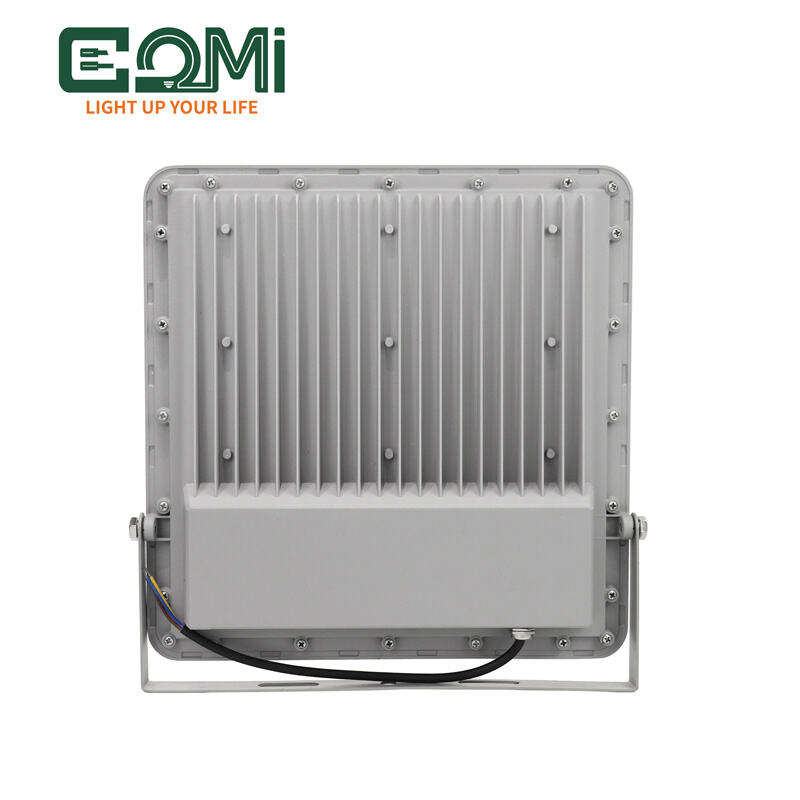

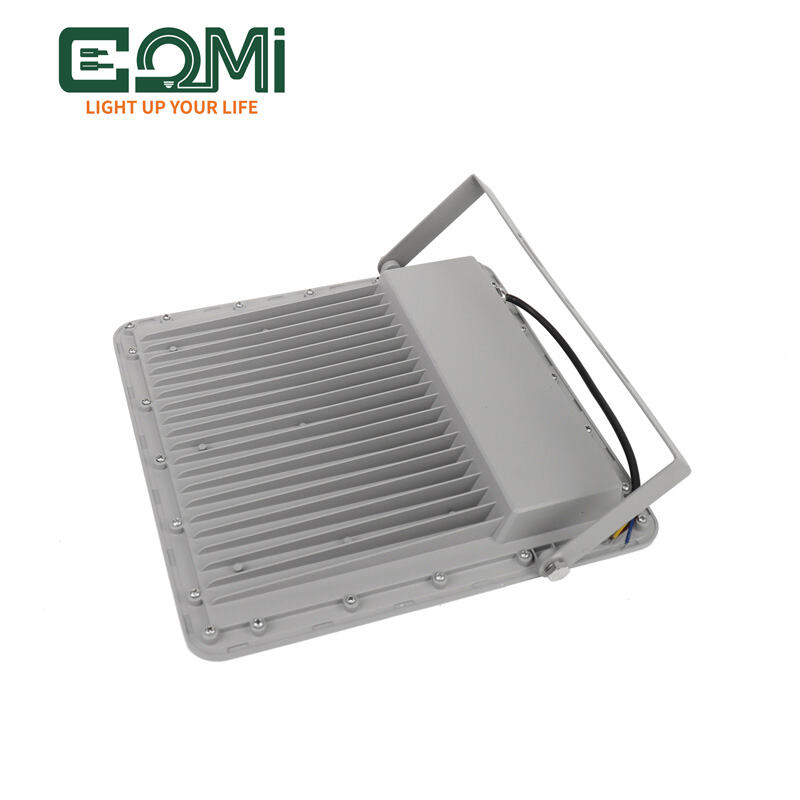

External Structure Durable die-cast aluminum body with high-temperature coating resists pressure, shock and corrosion. Diamond integrated lens ensures even, soft light with no glare or dark zones.

⇒How to install and use flood lights?

资源 2@2x-100.jpg

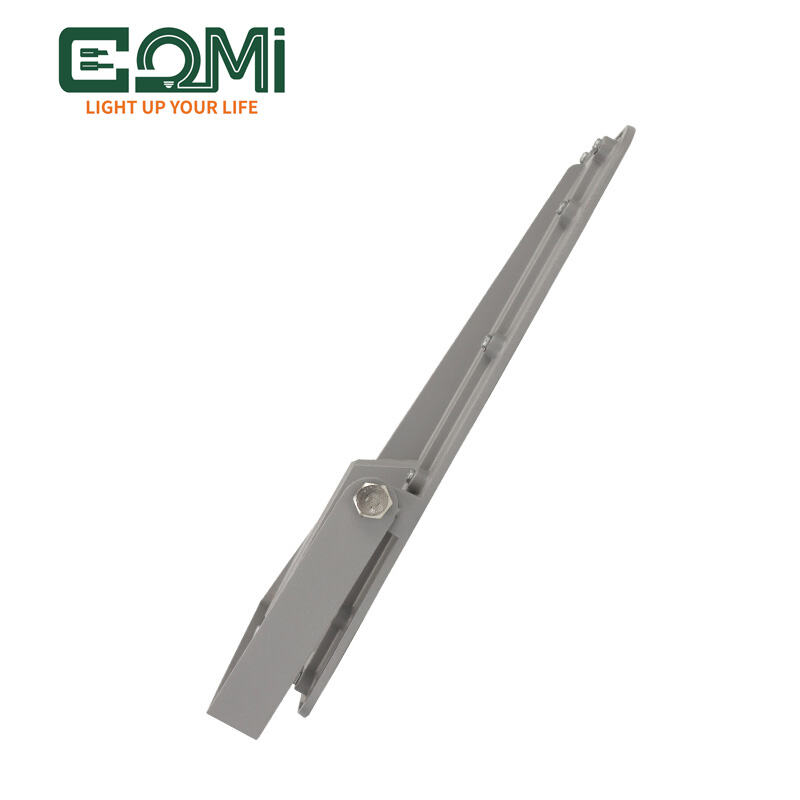

Wall- mounted installation	Angle- adjustable installation	Multi- functional adapter installation (suspension/ base support)
Cost-saving: No additional scaffolding is required, saving space and construction costs. Flexible layout: Not limited by poles, can be installed at fixed points as needed. Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.	Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting. High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance. Easy to maintain: Simple operation, no professional tools required for later adjustments.	Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts. Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios. High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios


Basketball Court Scenarios: Floodlights provide uniform, glare-free illumination, eliminating blind spots and ensuring safety during nighttime activities. Their IP66 waterproof design also withstands the elements, including rain and wind, typical of outdoor courts.	Parking Lot Scenarios: Floodlights achieve large-area, uniform lighting, eliminating blind spots. Their high luminous efficiency and low energy consumption reduce long-term electricity costs for public area lighting, balancing safety and economy.	Construction Site Scenarios: High-power floodlights provide bright, wide-area illumination, supporting nighttime construction. 4KV lightning protection and stable drive ensure reliable operation even in complex power supply environments, guaranteeing both efficiency and safety.

⇒More street light designs are waiting for you to develop

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. How effective is the lightning protection of the lamps? Will they burn out during thunderstorms?

A1: The product is equipped with professional surge protection. The 30W specification features 3KV surge protection, while the 50W-200W high-power specification is upgraded to 4KV high-strength surge protection. It can effectively resist outdoor lightning induced voltage and instantaneous high-voltage impact, greatly reducing the probability of lamp damage in thunderstorms and making it suitable for use in complex outdoor environments.

Q2. Will the light from the lamps be glaring or flicker? How is the color rendering effect?

A2: The lamps use high-quality SMD2835 LED chips with a color rendering index (CRI) of >80, providing true and natural color reproduction. Paired with integrated diamond-cut lenses, the light is soft and uniform, with precise light control, no flicker, no glare, and no eye strain. The lighting field is clear and comfortable, providing a better visual experience for both landscape lighting and road lighting.
