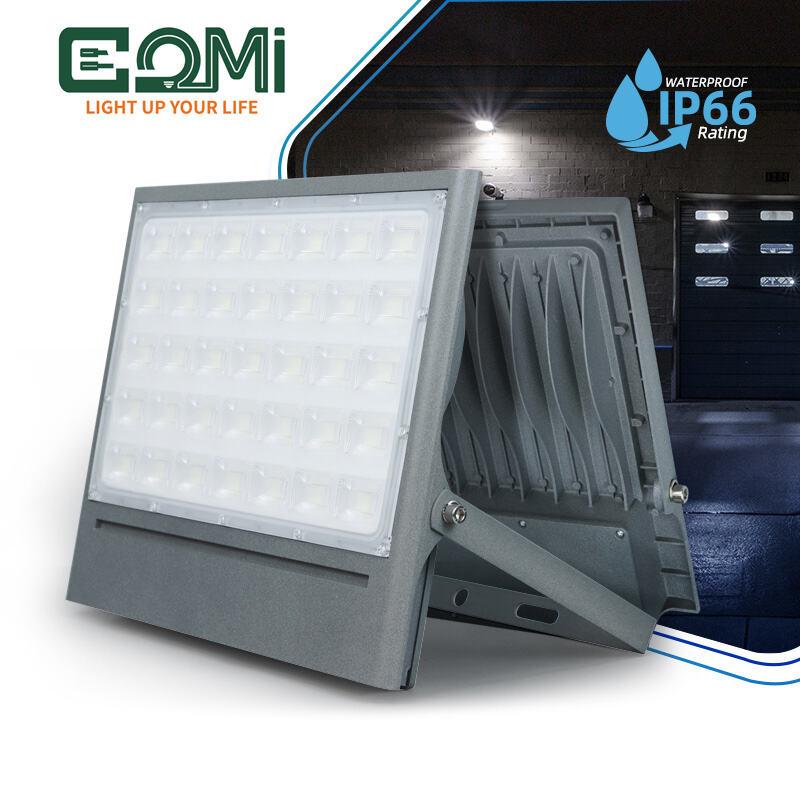

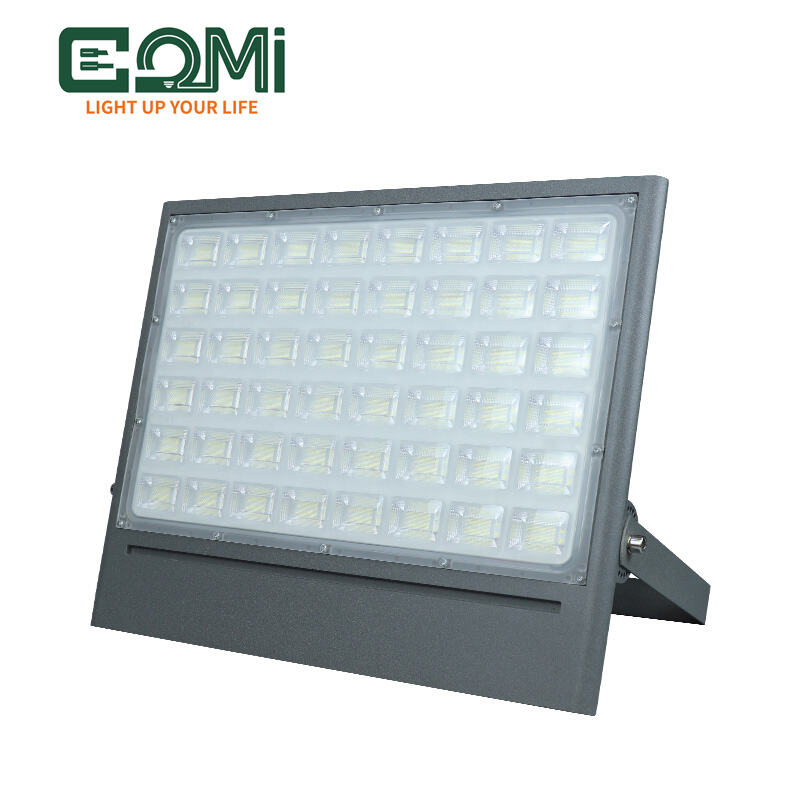

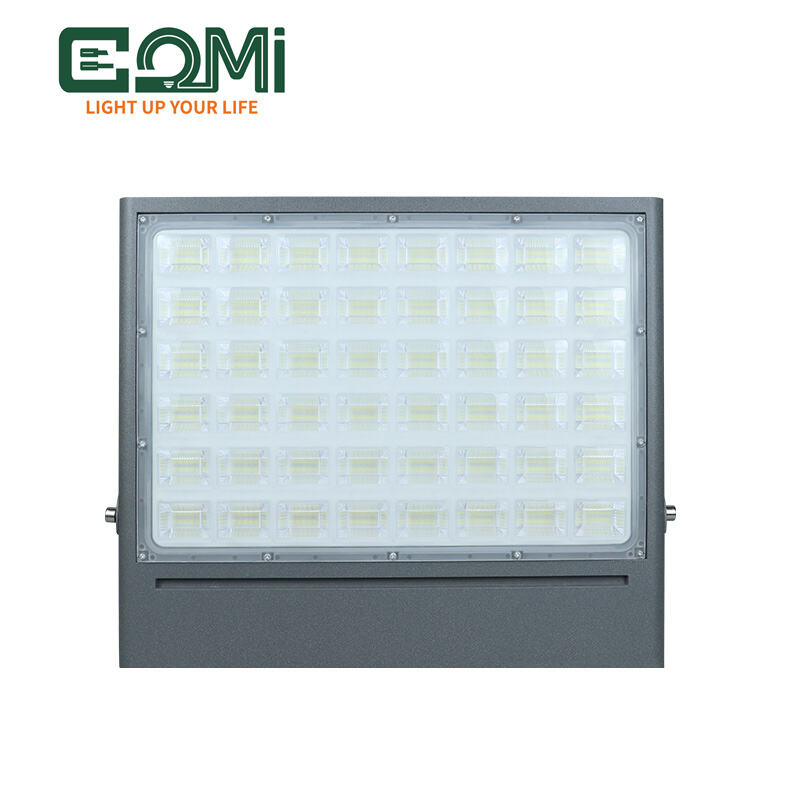

PC Integrated Lens Flood Light

Product Model: COMI -FL21

Wattage: 50W 100W 200W 300W 400W

Materials: Die-cast housing + PC integrated lens

Thickness: 33mm-50mm

Color: Gray casing

Waterproof: IP66 rating

LED chips: COB integrated light source

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our lens flood light

The COMI FL21 outdoor floodlight features a die-cast aluminum housing and a PC integrated lens, boasting an IP66 waterproof and dustproof rating, along with 4KV surge protection and lightning protection. It is weather-resistant, high-temperature resistant, and age-resistant, ensuring stable operation in various weather conditions.

Equipped with high-quality SMD2835 LED chips, with a color rendering index (CRI) > 80, it provides high luminous efficacy, uniform light distribution, and flicker-free operation. Combined with a high power factor (PF 0.95) wide-voltage driver, it is energy-efficient and features multiple overcurrent and over-temperature protection functions, effectively reducing the probability of failure.

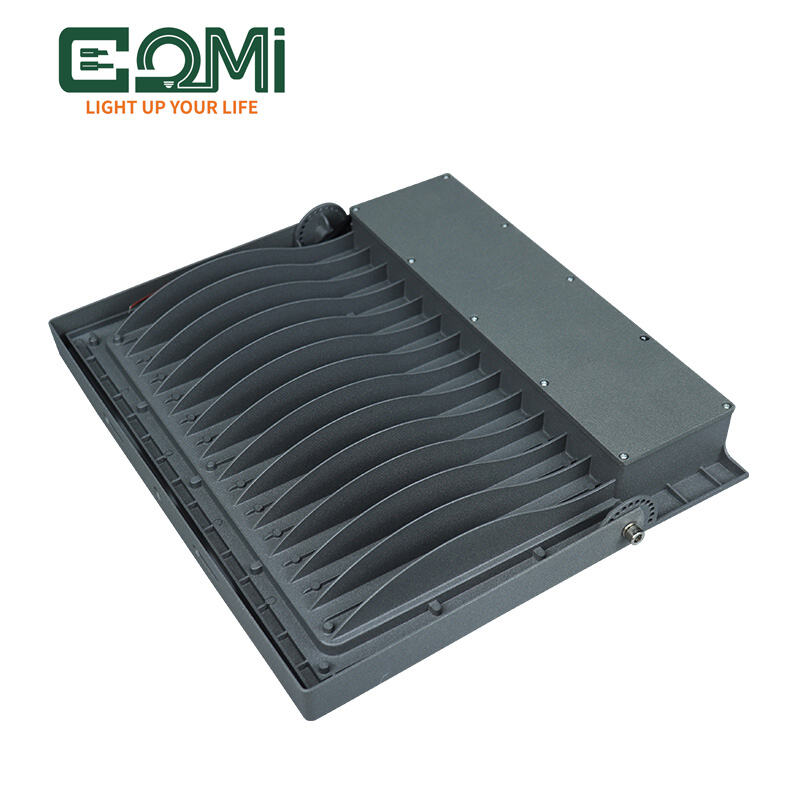

Multi-chip efficient heat dissipation, a shock-resistant and pressure-resistant body, and a longer service life. Supporting 180° angle adjustment, it provides omnidirectional lighting, offers flexible installation, and is suitable for various outdoor lighting projects such as schools, squares, gardens, and rural areas.

⇒Detailed specifications

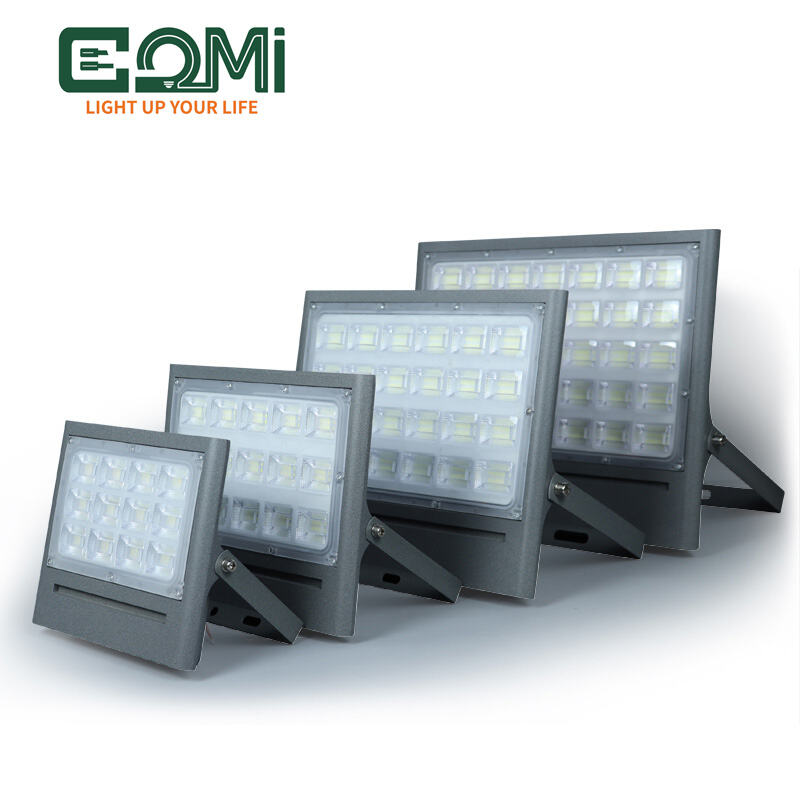

Model number	Power	Size (mm)	IP	Luminous flux
COMI -FL21 -50W	50W	210x175x35	66	5000lm
COMI -FL21 -100W	100W	240x204x35	66	10000lm
COMI-FL21 -200W	200W	300x260x40	66	20000lm
COMI-FL21 -300W	300W	350x300x45	66	30000lm
COMI-FL21 -400W	400W	400x340x50	66	40000lm

⇒Product details

Feature 1: High-Efficiency, Long-Lasting Lighting SMD2835 LEDs (CRI>80, 130LM/W) with PF0.95 driver and multi-chip cooling for bright, energy-saving, low-decay light.

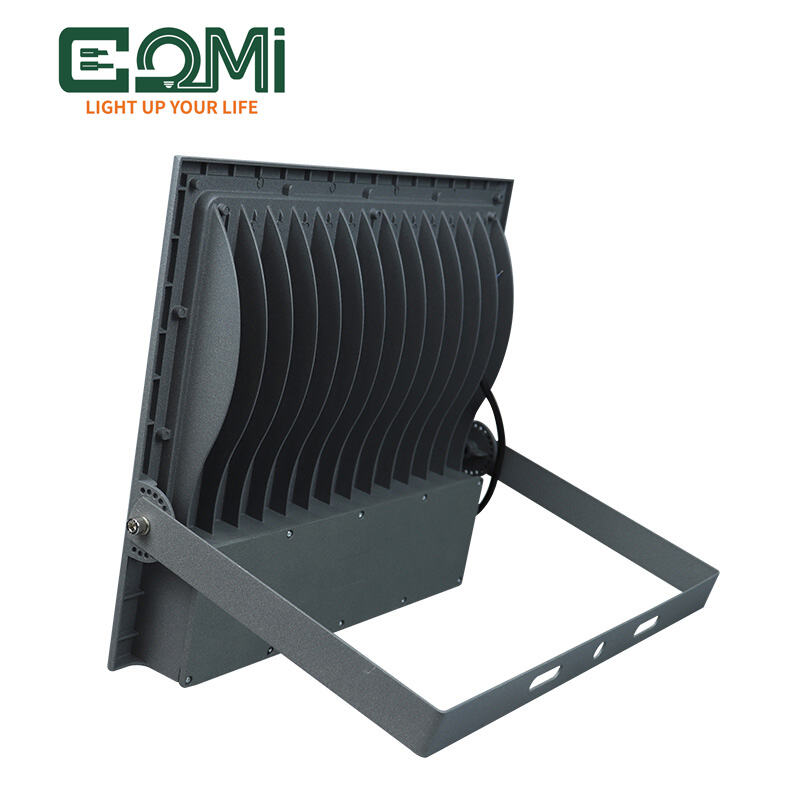

	Feature 2: Flexible, Blind-Spot-Free Installation 180° adjustable design + integrated lens, easy mounting on poles/walls, eliminates lighting dead zones.
Feature 3: Robust All-Weather Protection IP66-rated die-cast aluminum housing + 4KV surge protection, fully waterproof/dustproof/lightning-resistant for harsh outdoor use.

⇒How to install and use flood lights?


Wall- mounted installation	Angle- adjustable installation	Multi- functional adapter installation (suspension/ base support)
Cost-saving: No additional scaffolding is required, saving space and construction costs. Flexible layout: Not limited by poles, can be installed at fixed points as needed. Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.	Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting. High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance. Easy to maintain: Simple operation, no professional tools required for later adjustments.	Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts. Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios. High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios


Tunnel entrance lighting application: Multiple sets of floodlights are installed on the top of both sides of the tunnel entrance section to enhance visibility and significantly improve driving safety.	Lighting application in dock warehouses: Multiple floodlights are installed on the top of the exterior walls of dock warehouses to meet the port's 24-hour uninterrupted lighting needs.	Gas station lighting application: Multiple floodlights are evenly distributed under the roof of the gas station to improve the safety and efficiency of refueling at night.

⇒More street light designs are waiting for you to develop

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. What are the advantages of a combined lens design?

A1: The integrated PC lens has a much better sealing performance than the separate lens, which can prevent rainwater and dust from seeping into the lamp through the gaps and enhance the IP66 protection effect; at the same time, it has better light focusing and transmission performance, more uniform light refraction, avoids light dispersion and waste, improves the overall lighting brightness and illumination range, and the integrated structure is more robust, with stronger resistance to drop and aging.

Q2. What protective functions does the light fixture have, and is it easy to burn out?

A2: This lamp features a comprehensive safety protection system, equipped with a non-isolated wide-voltage full-watt driver, and built-in overvoltage protection, overload protection, short-circuit protection, and intelligent temperature control protection, plus 4KV surge protection. In the event of unstable voltage, instantaneous high voltage, or high-temperature overload, the lamp will automatically activate its protection mechanism, effectively preventing lamp burnout and malfunction, and significantly improving safety and stability.
