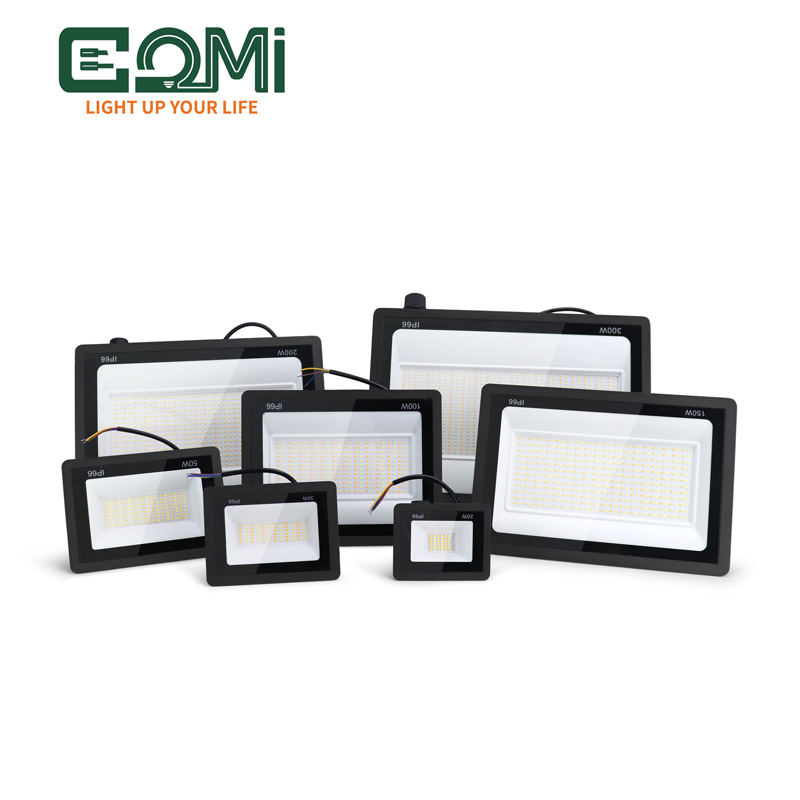

3CCT silm flood light

Product Model: KEOU -FL24

wattage: 20W 30W 50W 100W 150W 200W 300W

Materials: High-quality tempered glass + die-cast aluminum shell

Thickness: 29-31mm

Color: Black casing

Waterproof: IP66 rating

LED chips: SMD2835 high-brightness imported light source

Dimming method: DIP SWITCH

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our ultra-thin flood light

Our floodlights are designed specifically for outdoor environments, with core advantages spanning three main dimensions:
Superior protection, durable and reliable: With an IP66 protection rating, it features four layers of protection: dustproof, waterproof, explosion-proof, and lightning protection. Combined with a high-quality tempered glass face shield (impact resistant and with strong thermal stability) and a glass + aluminum alloy body, it can easily cope with complex outdoor environments such as strong winds, heavy rain, and snow accumulation, ensuring long-term stable use..

⇒Detailed specifications

Model number	Power	Size	IP	Luminous flux	Beam Angle	Thickness
KEOU-FL24-20W	20W	118x93x29mm	66	1600lm	120°	29mm
KEOU-FL24-30W	30W	160x120x29mm	66	2400lm	120°	29mm
KEOU-FL24-50W	50W	204x145x30mm	66	4000lm	120°	30mm
KEOU-FL24-100W	100W	269x209x30mm	66	8000lm	120°	30mm
KEOU-FL24-150W	150W	334x229x31mm	66	12000lm	120°	31mm
KEOU-FL24-200W	200W	378x277x31mm	66	16000lm	120°	31mm
KEOU-FL24-300W	300W	433x318x31mm	66	24000lm	120°	31mm

⇒Product details

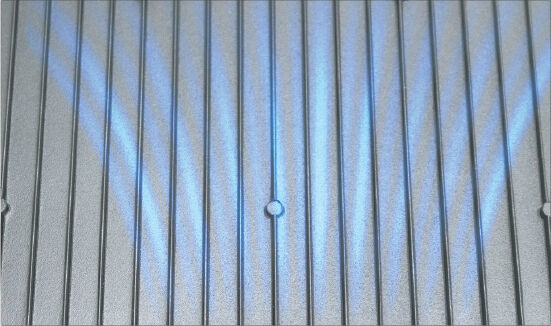

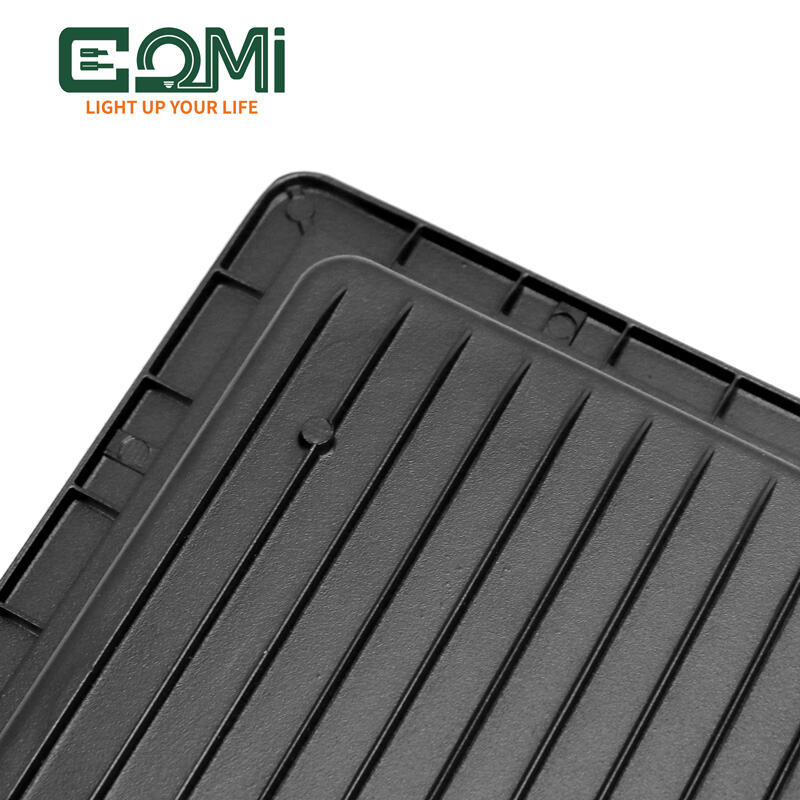

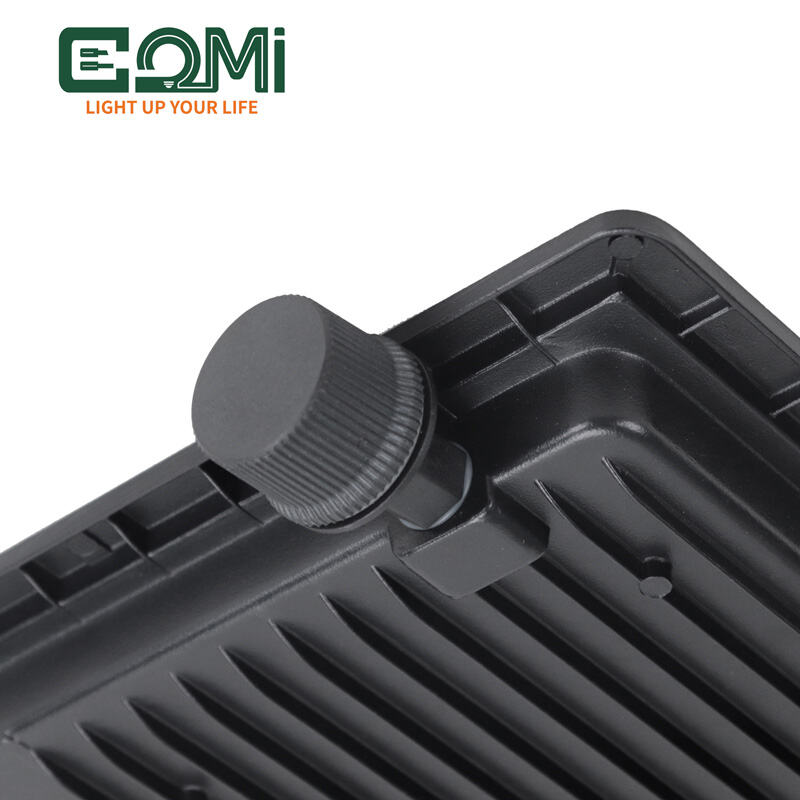

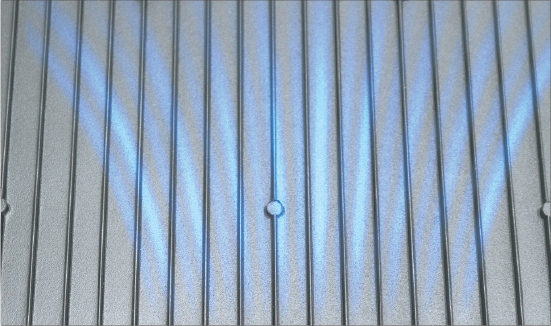

Precision die-cast aerospace aluminum material, high hardness, and fast heat dissipation.

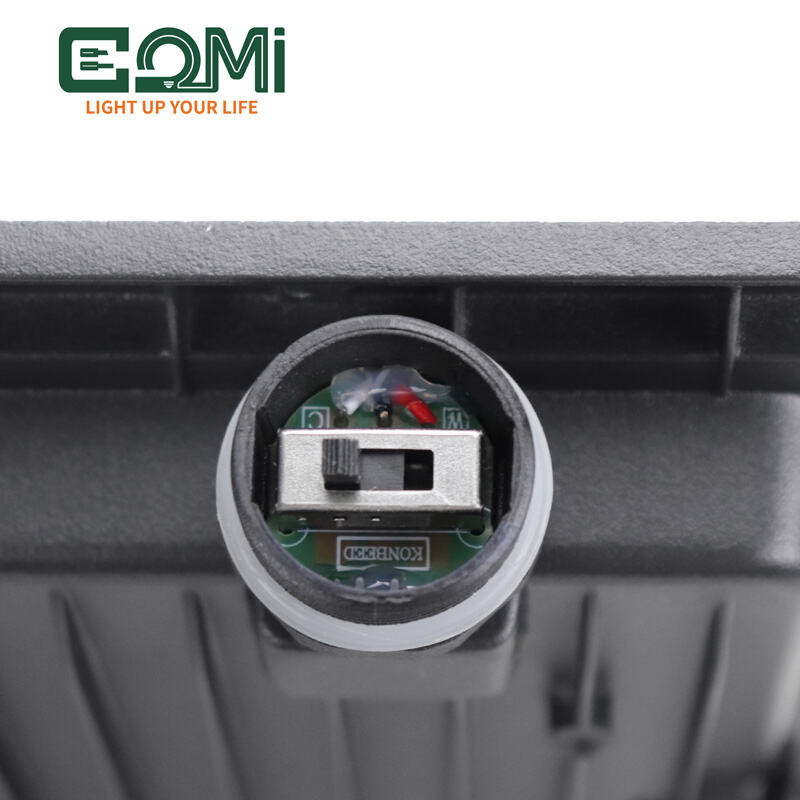

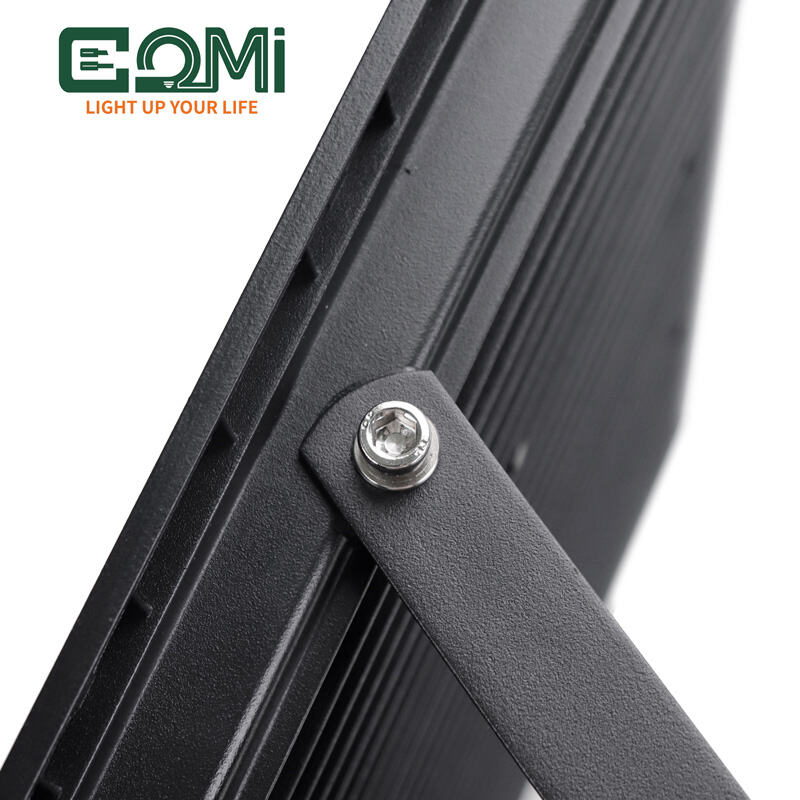

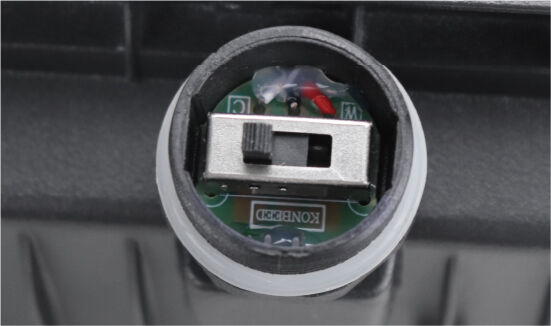

	DIP switches allow for adjustable color temperature. Flexible installation: 180° rotating installation, blind-spot-free lighting design.

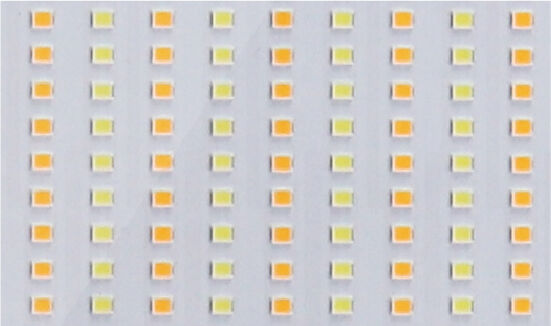

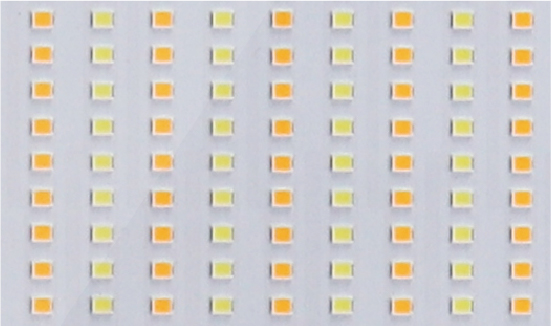

With the support of an SMD chip core, it offers superior light performance, more accurate color rendering, and more stable illumination

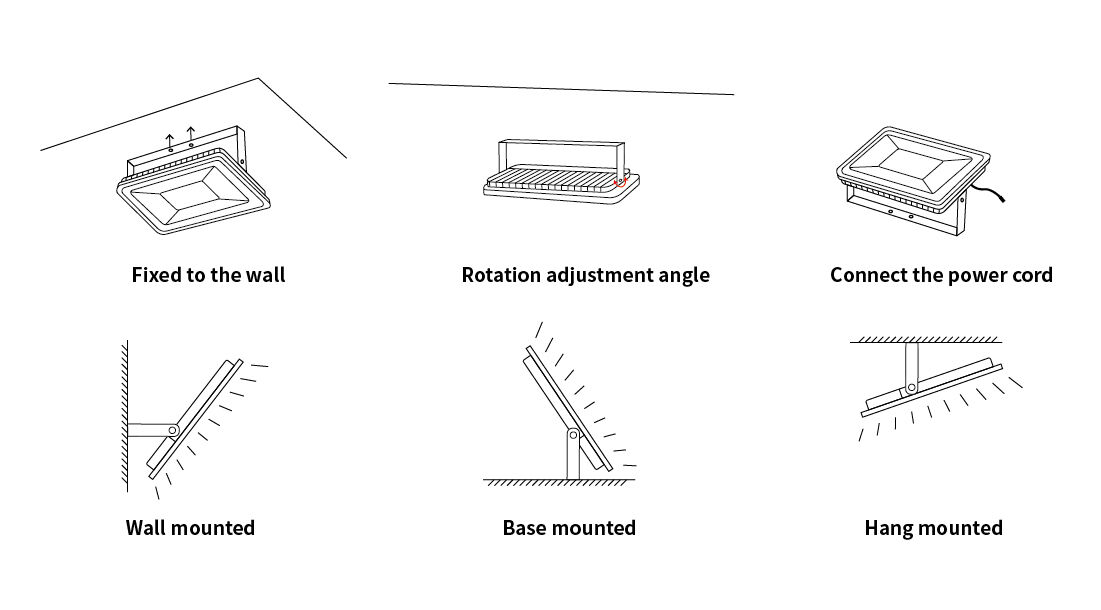

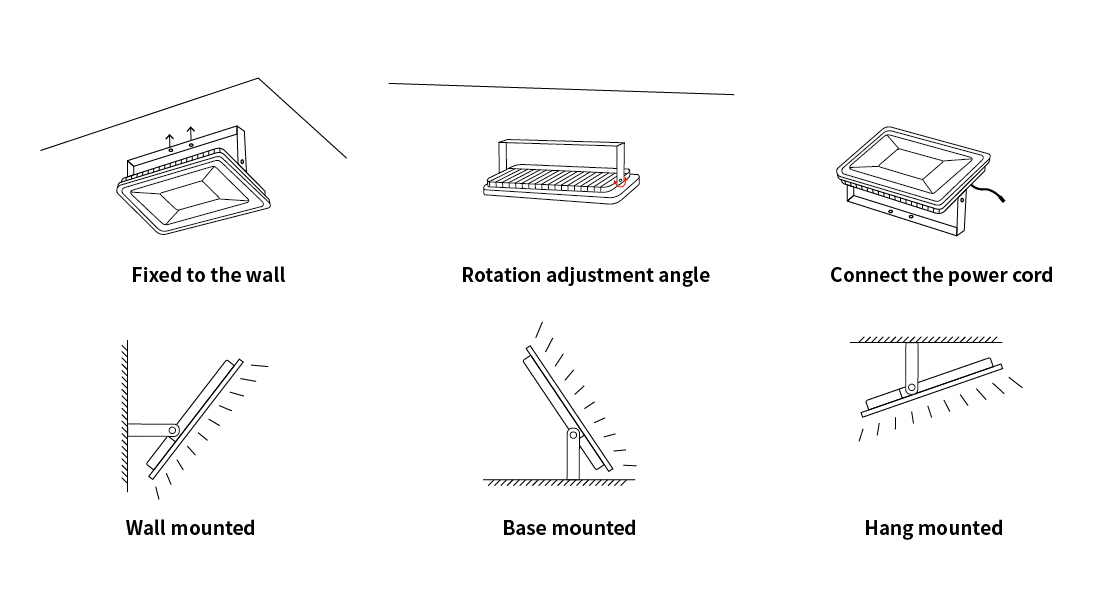

⇒How to install and use flood lights?


Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

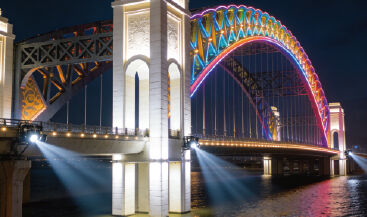

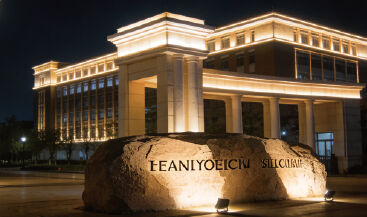

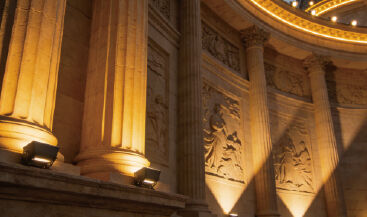

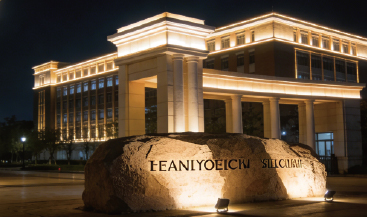

Building facade lighting : Install floodlights on the building facade to accurately outline the building's contours and clearly present the building's lines and three-dimensional layers at night.	Bridge surface lighting : Floodlights are laid on the bridge surface to provide uniform lighting for the road surface and create a soft light and shadow effect on the water surface, providing double protection for traffic safety.	Landscape Rock Lighting : Conceal floodlights at the base of the rocks and illuminate them upwards to highlight their natural textures. This also makes the inscriptions on the rocks clear and visible at night, serving both lighting and signage functions.

⇒More street light designs are waiting for you to develop

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

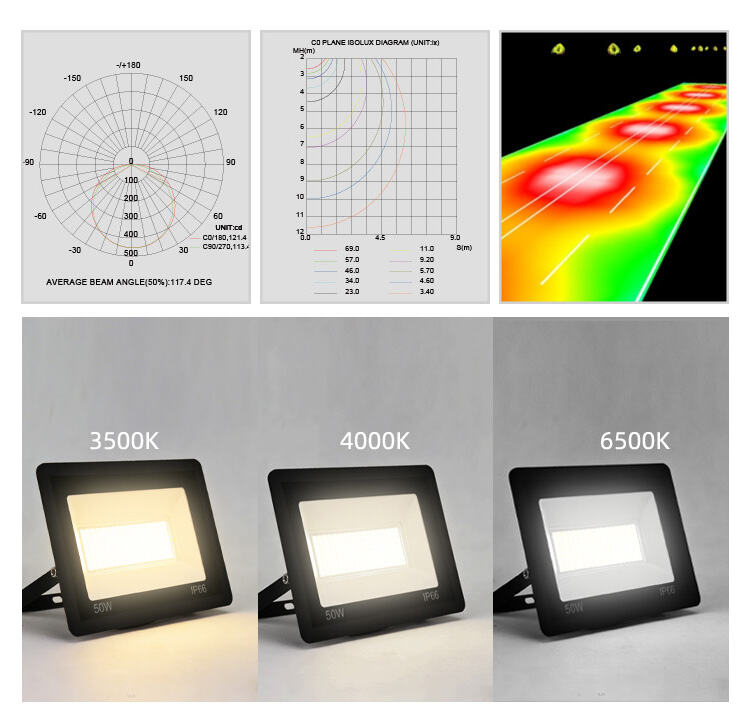

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. What is the delivery time for a custom floodlight order?

A1: Delivery time is usually 4 to 8 weeks, depending on the power model combination of the order, the quantity purchased, and whether there are special installation requirements.

Q2. Can floodlights be installed in areas with extreme weather conditions?

A2: Yes, this floodlight has an IP66 protection rating, providing four layers of protection: dustproof, waterproof, explosion-proof, and lightning protection. It can withstand extreme outdoor environments such as strong winds, heavy rain, and snow.

Q3. Do floodlights have color/color temperature options?

A3:Of course! All power models support three color temperature adjustment, including cool white light (6500K), natural light (4000K), and warm white light (3000K), which can meet the lighting needs of different scenarios.
