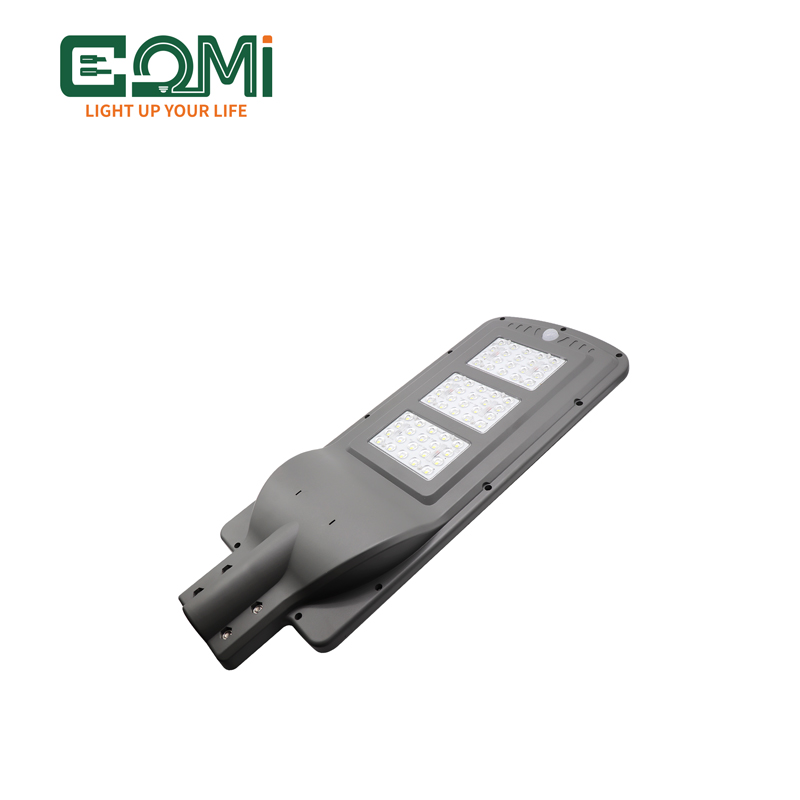

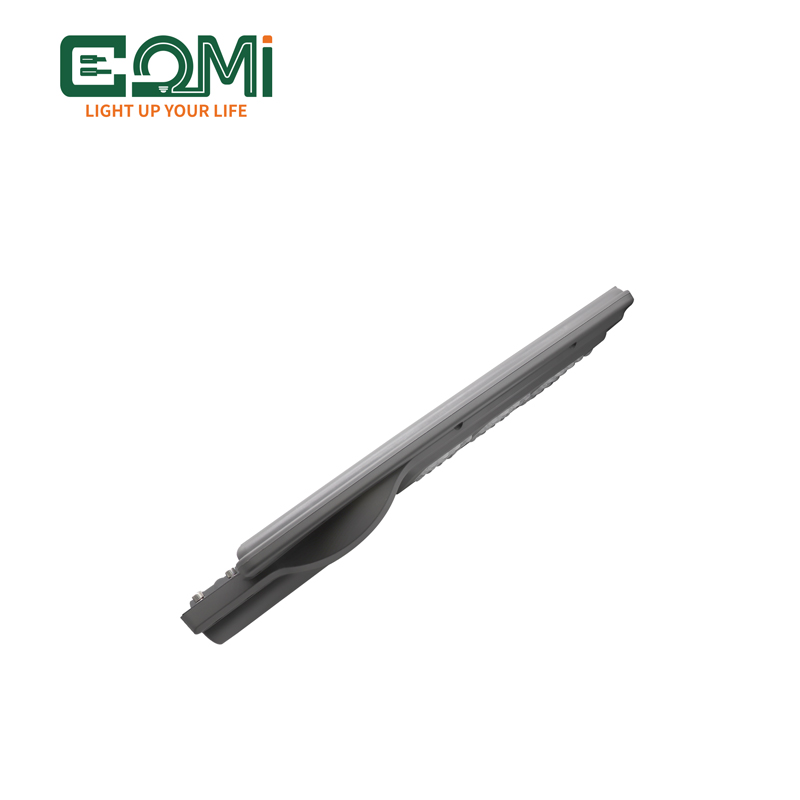

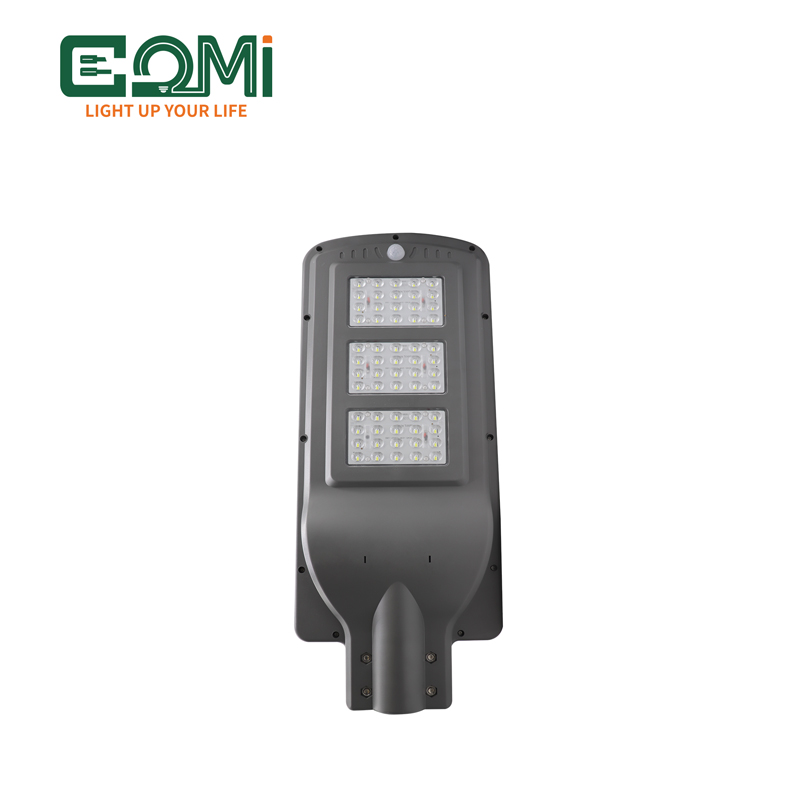

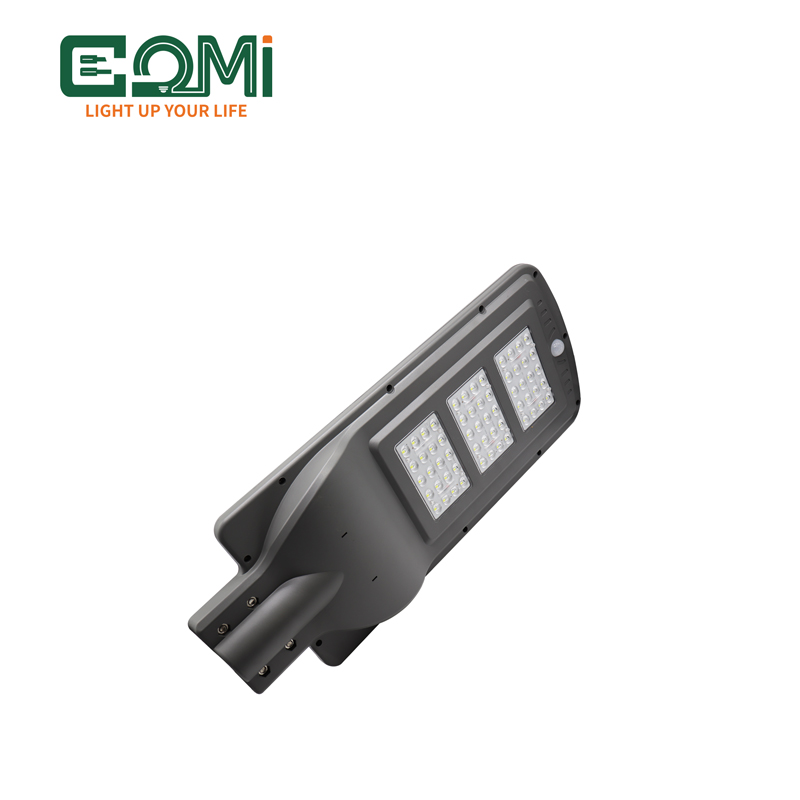

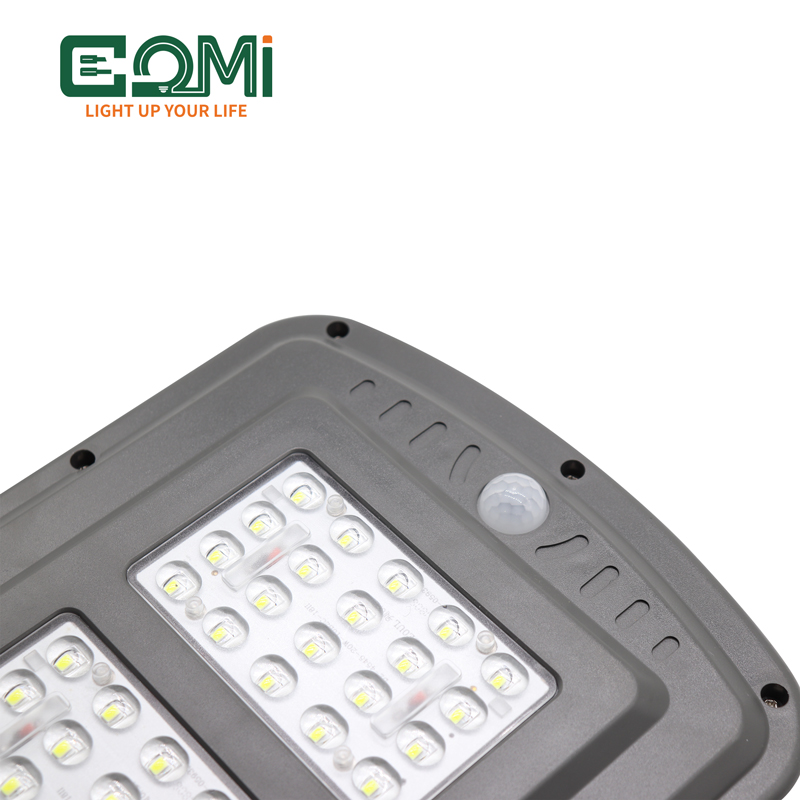

Integrated Human Body Sensor Solar Street Light

Integrated Human Body Sensor Solar Street Light

Product Model: KEOU-LD001

Power: 20W, 40W, 60W

Material: ABS+PC UV-resistant housing

Waterproof Rating: IP66

LED Chip: 2835/1W, Ra80

Control Method: Built-in sensitive sensor probe

Working Time: Charging time 6-8 hours, can work for 40 hours at full power

MOQ: ≥500 pcs

Introduction

⇒Learn more about our street light

Designed exclusively for outdoor use, our lights feature robust construction, intelligent motion sensing, and zero-energy consumption. With no wiring required and flexible installation, they are suitable for a wide range of outdoor lighting scenarios, offering both durability and practicality.

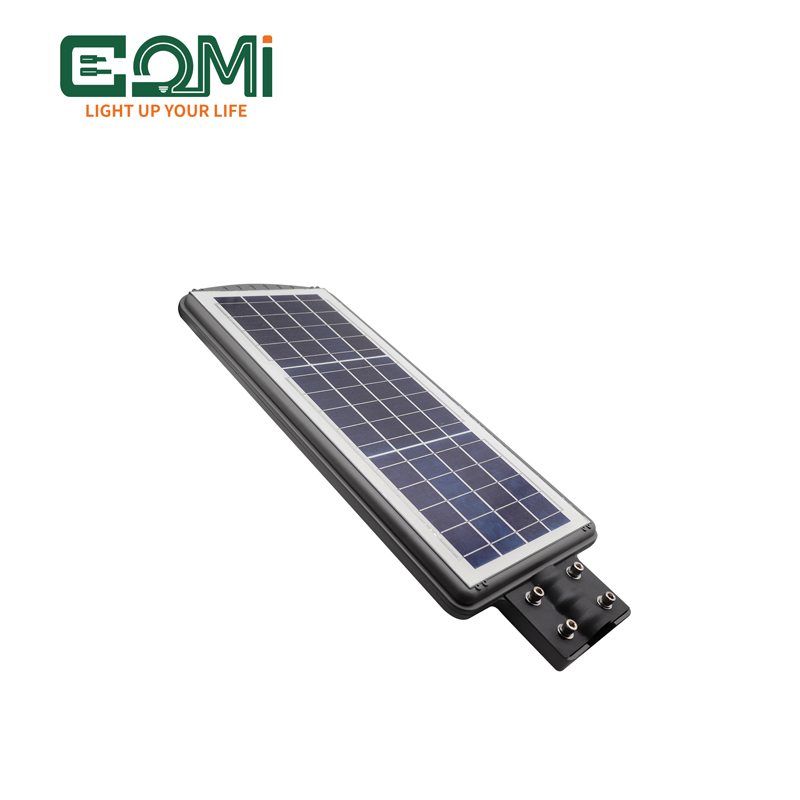

The ABS+PC UV-resistant housing is weatherproof and anti-aging, standing up to the elements. The semi-cutoff optical lens ensures uniform, glare-free illumination ideal for roadways. High-quality lithium batteries provide stable, long-lasting power, while the solar panel efficiently charges even in low light—fast charging by day, long-lasting brightness at night.

Featuring high-brightness, true-color imported LED chips and an IP65 waterproof and dustproof rating, these lights are built to perform reliably outdoors for years.

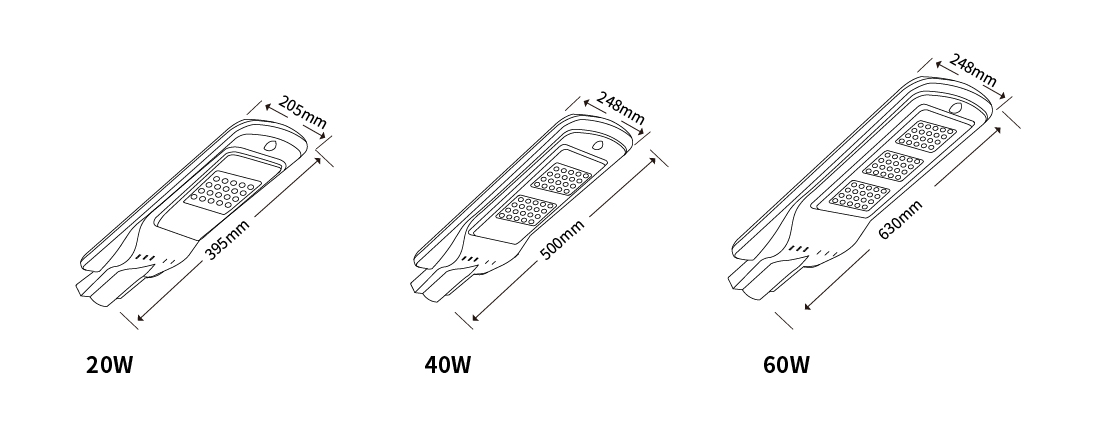

⇒Detailed specifications


Model number	Power	Size(mm)	IP
KEOU-LD001-20W	20W	395x205x55	66
KEOU-LD001-40W	40W	500x248x66	66
KEOU-LD001-60W	60W	630x248x66	66

⇒Product details

Robust & Durable for Outdoor Use

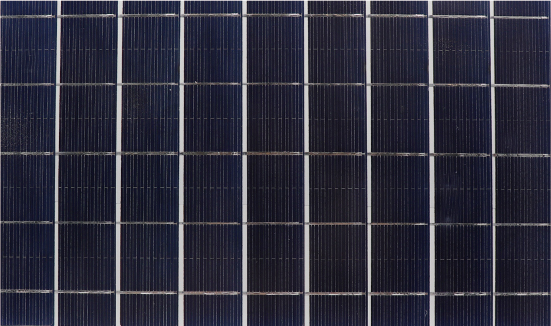

ABS+PC UV-resistant housing with anti-aging and impact-resistant properties, IP65 waterproof rating. High-transmittance and high-conversion efficiency solar panel, low internal resistance & long-cycle life battery. All components are engineered for long-term outdoor operation.

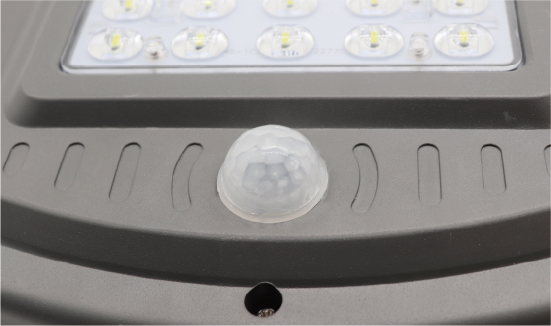

Smart Sensing & Energy-Saving

Dusk-to-dawn control + radar motion sensor. Automatically turns off during the day. At night, it operates in dim light mode when no motion is detected and switches to full brightness when people are present. No external power supply needed all year round, achieving true zero power consumption.

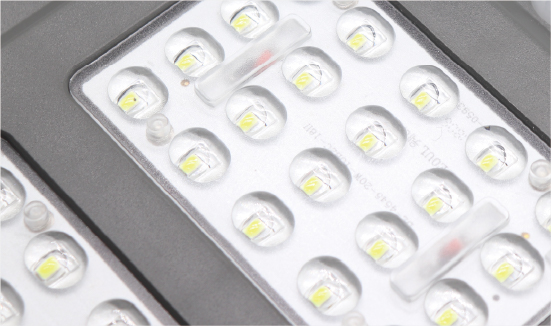

Efficient & Professional Lighting

Semi-cutoff optical lens meets professional roadway lighting standards. Imported LED chips deliver high brightness and high CRI (Color Rendering Index), ensuring uniform light distribution and clear visibility.


⇒How to install and use street lights?

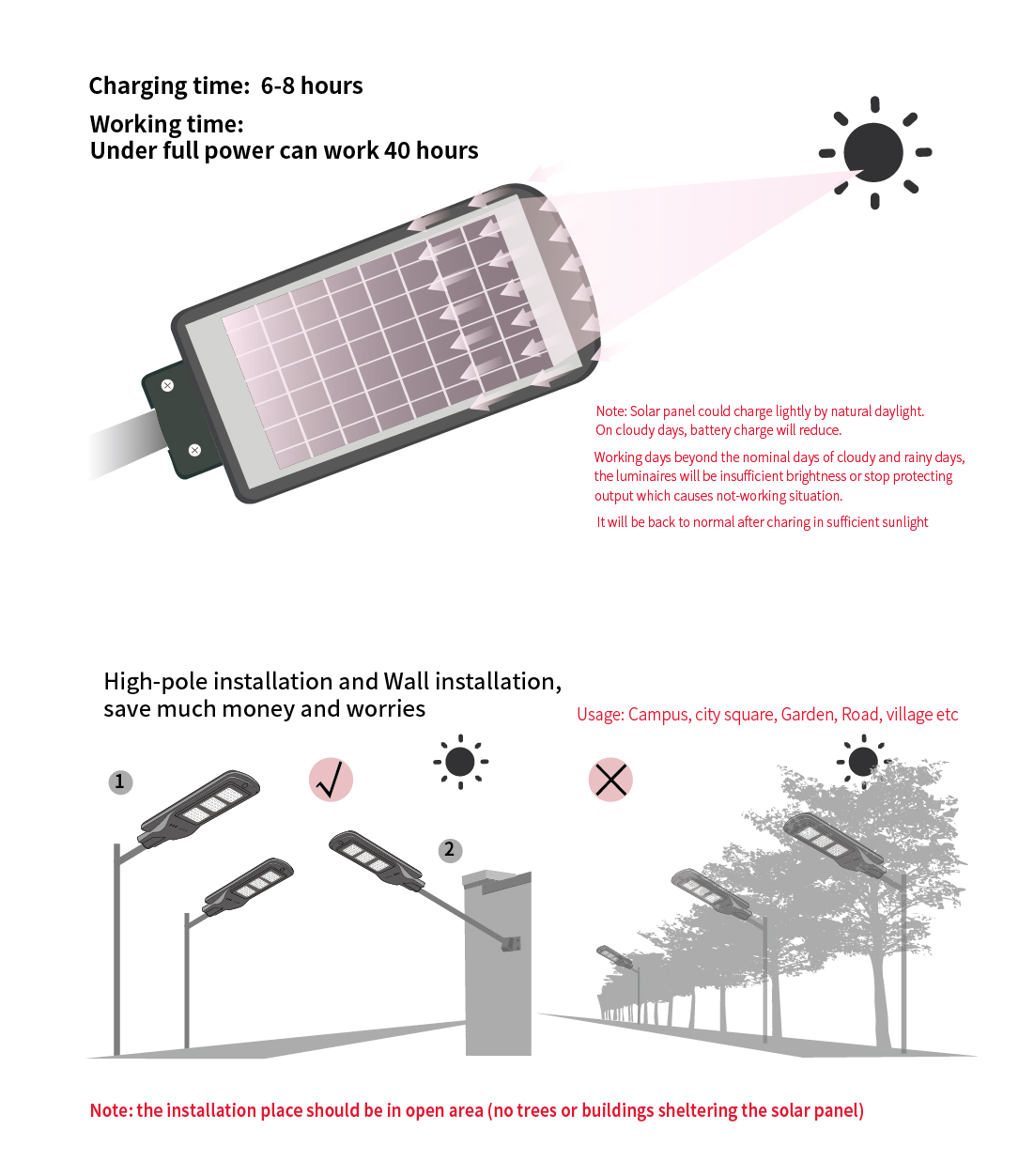

Installation Mode

High Pole Installation	Wall Mount Installation	Clamp Installation
Secure the light fixture to the top or middle of the pole using the provided fasteners. Adjust to the desired height and tighten to complete installation.	Fix the light fixture directly to a high wall surface using expansion bolts.	Attach the light fixture to cylindrical structures such as utility poles or tree trunks using the dedicated clamp kit, then tighten the clamps securely.
Note: For all-in-one solar street lights, ensure the back of the solar panel is unobstructed.

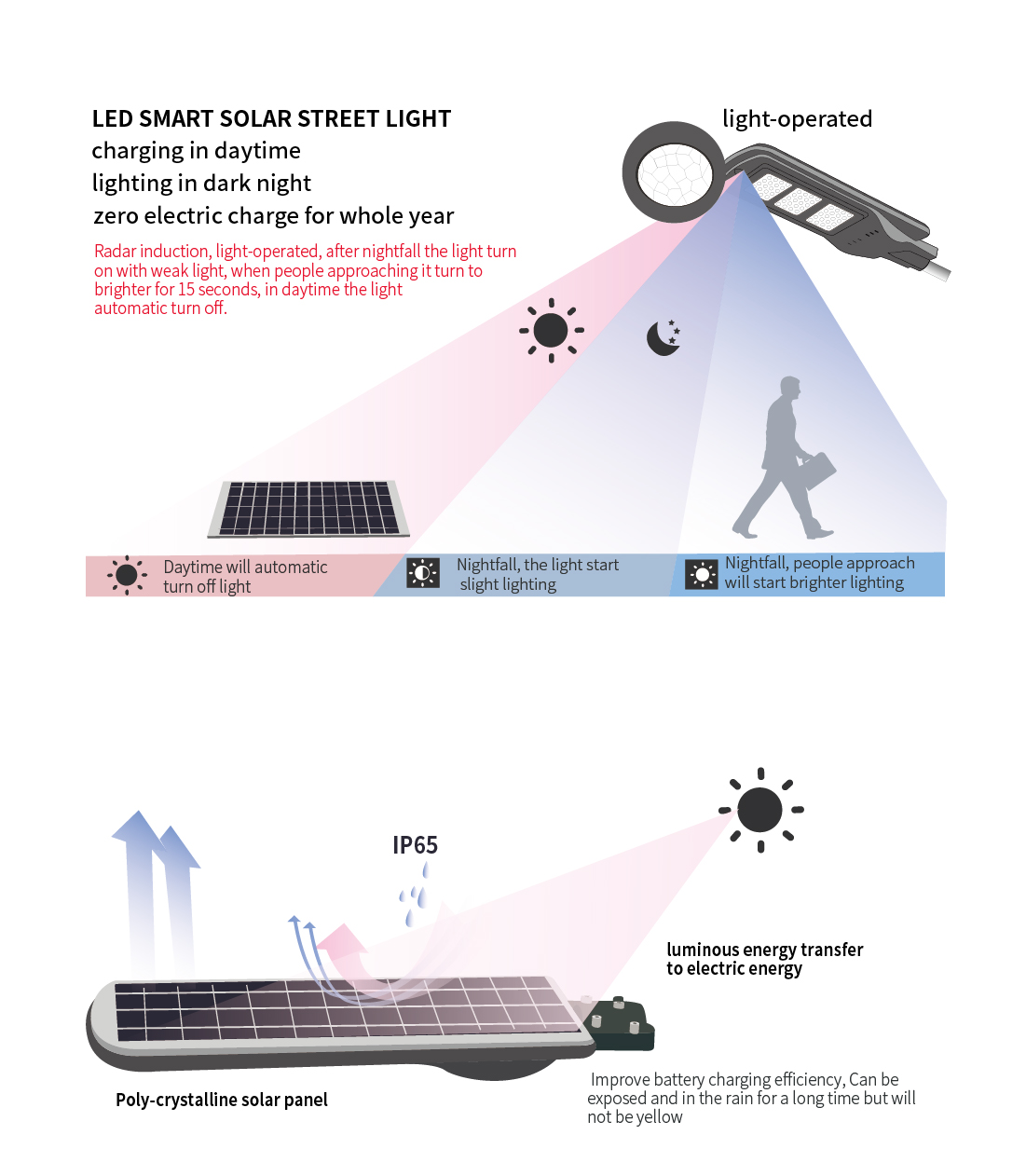

⇒Working Mode

Dual-mode Operation: Light Control + Radar Motion Sensor

Daytime: The solar panel charges automatically, and the light remains off with zero power consumption.

Nighttime: The light automatically switches to dim mode for continuous low-power illumination. When motion is detected, the light brightens to full power for 15 seconds, then automatically turns off during the day.

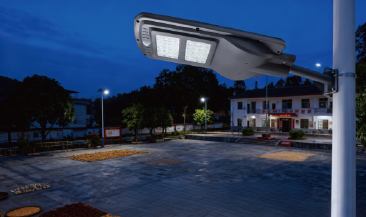

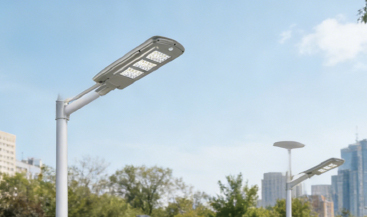

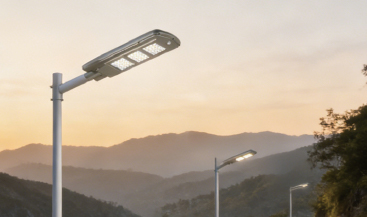

⇒Application scenarios


Rural Road Lighting: Illuminates village roads and intersections, providing uniform lighting and traffic safety protection for nighttime travel.	Campus Path Lighting: Lights up campus walkways and surrounding playgrounds, offering clear illumination and public safety for students and staff during evening activities.	Park & Plaza Lighting: Brightens leisure squares and scenic trails, delivering comfortable lighting and environmental security for citizens' nighttime recreation.

⇒More street light designs to develop！

Size & Structure

Customizable lamp body dimensions, lamp modules, mounting devices, and accessories.

Optical Performance

Customizable beam angle, color temperature (2700K–10000K), and color rendering index (CRI >80/90/95 Ra), etc.

Driver Function

Intelligent driver: customizable light control / timer control, multiple switching and dimming modes.

Energy Efficiency

Customizable high conversion efficiency and high power factor (PF) power supply.

Packaging & Labeling

Small-batch packaging design

Brand label printing

Custom surface finishing

Brand Marketing Materials

Product manuals & brochures

Display stand design & production

Promotional Gifts

Custom branded tote bags

Custom branded hats

Custom display props

Visual Identity System

Brand logo printing

Custom product color schemes

⇒Frequently Asked Questions (FAQ)

Q: When to choose an all-in-one solar street light?

A:Areas without external power supply or where wiring is difficult.

Projects requiring quick installation and aiming to minimize construction costs.

Open, unobstructed outdoor areas.

Q: What technology is used for the motion sensor of this street light, and what is its core working principle?

A:It adopts Radar Motion Sensor Technology. The core principle is that the radar emits microwave signals. When a human enters the detection range, the signals are reflected back with a frequency shift, triggering the controller to switch the lighting mode.It works in conjunction with a light control module: it automatically enters sleep mode to charge during the day and only activates the motion-sensing function at night. This aligns perfectly with the energy storage characteristics of the A1-grade polycrystalline solar panel, achieving true zero power consumption and energy efficiency.

Q: How does the light mode switch after being triggered, and can the duration be adjusted? What is the service life of the battery?

A3:When in the dim standby mode at night, if a person enters the sensing range (typically 3-5 meters), the light immediately switches to high-brightness mode. After the person leaves, the high brightness lasts for 15 seconds and then automatically reverts to dim light. The default duration is suitable for most outdoor scenarios, requiring no manual adjustment and ensuring fully intelligent operation. Paired with a high-efficiency energy storage battery, it balances lighting needs and energy-saving effects.
