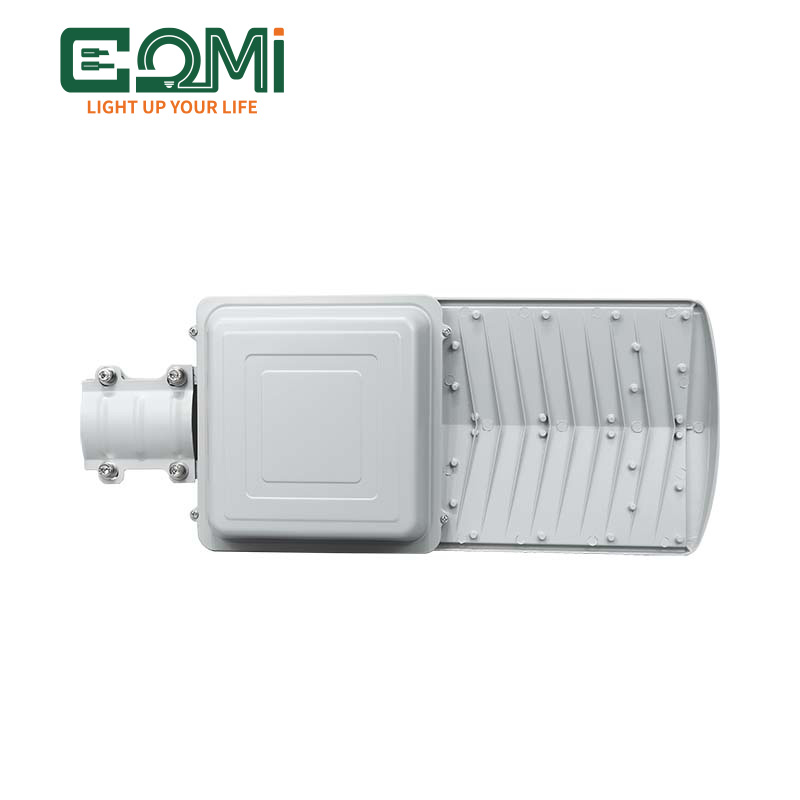

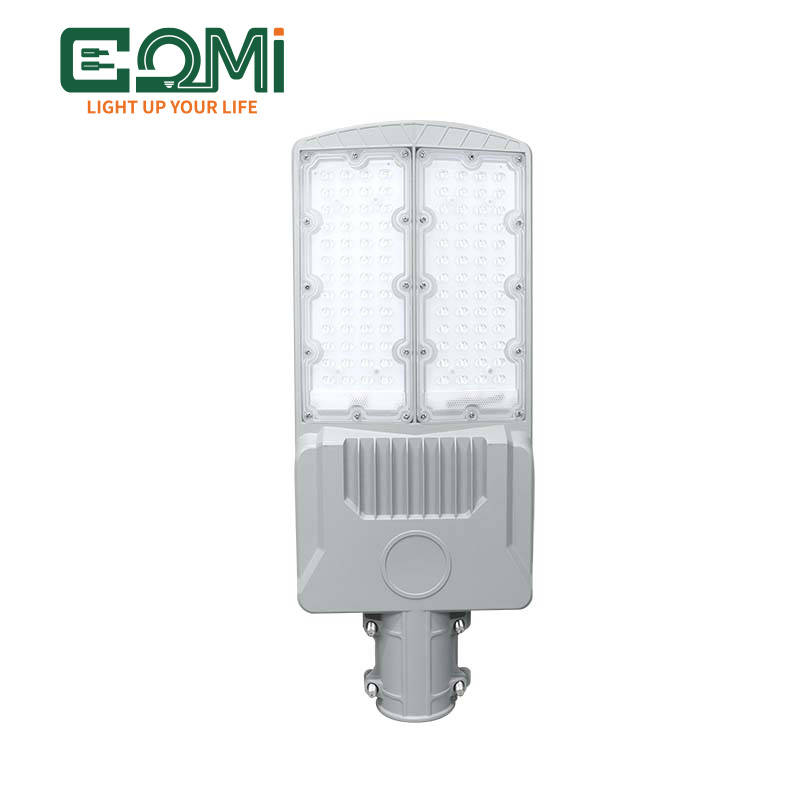

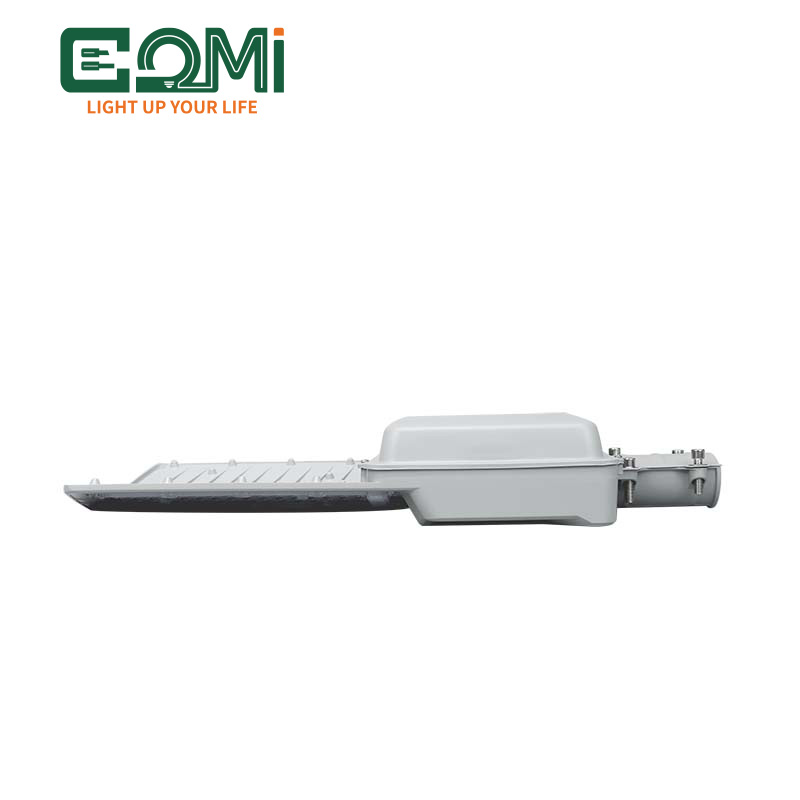

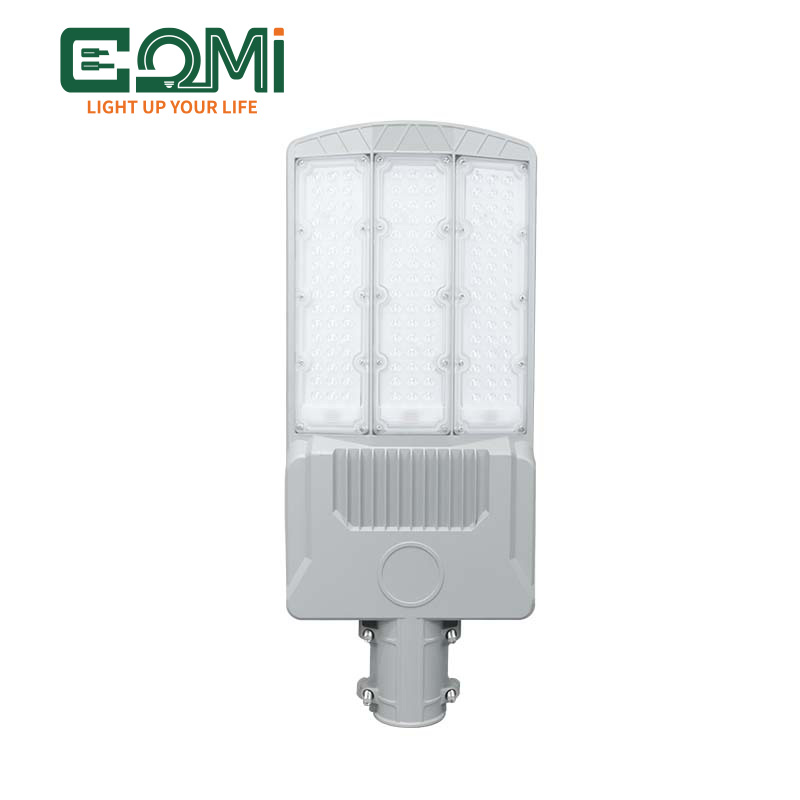

Split-type lens solar street light

Product Model: KEOU-LD009

Product wattage: 100W 200W

Material: Die-cast aluminum + PC UV-resistant shell;

Waterproof rating: IP66

LED chips: 2835/1W Ra80

Control method: Light-controlled sensor + remote control

MOQ: 500>=)

Introduction

⇒Learn more about our street light

This integrated solar street light is designed for outdoor use, requiring no wiring and operating fully automatically. Its UV-resistant ABS+PC shell, combined with IP66 dust and water resistance, ensures durability and weather resistance. The high-efficiency polycrystalline silicon solar panel charges quickly, and both light control and remote control offer convenient operation, allowing for charging during the day and automatic illumination at night. Imported LED chips provide energy efficiency and long lifespan, while the deep lens and dual-angle design ensure wide illumination and excellent light output, making it an ideal choice for outdoor lighting.

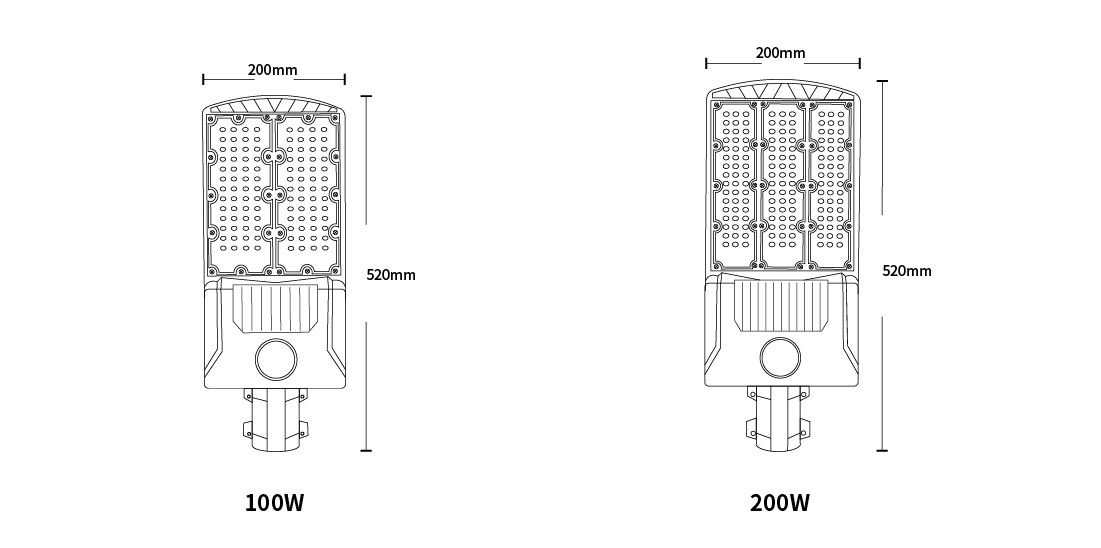

⇒Detailed specifications

Model number	Power	Size (mm)	IP
KEOU-LD009- 100W	100W	520x200x90mm	66
KEOU-LD009- 200W	200W	520x200x90mm	66

⇒Product details

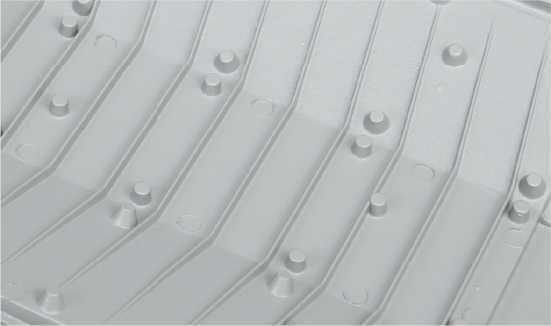

Robust and durable outer shell, providing full outdoor protection.

The shell is made of UV-resistant ABS+PC material with a one-piece molded structure and IP66 dust and water resistance. It is waterproof, corrosion-resistant, and can dissipate heat efficiently. It is not afraid of sun, rain, or sand and dust, and has a longer service life outdoors.

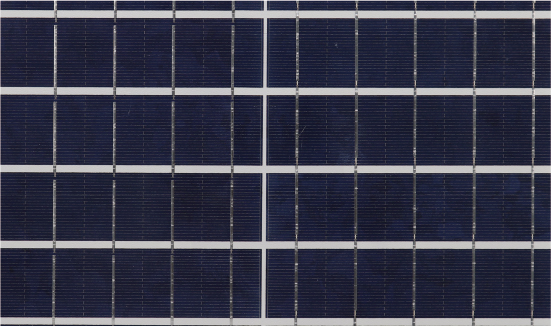

Highly efficient use of solar energy, intelligent dual control for greater peace of mind.

Equipped with polycrystalline silicon solar panels, charging efficiency is greatly improved, and it can efficiently replenish power in both strong and weak outdoor light. It features dual modes of light control and remote control. The light control intelligently recognizes light conditions, automatically charging during the day and automatically turning on the lights at night. The remote control can be adjusted as needed, requiring no wiring and operating fully automatically.

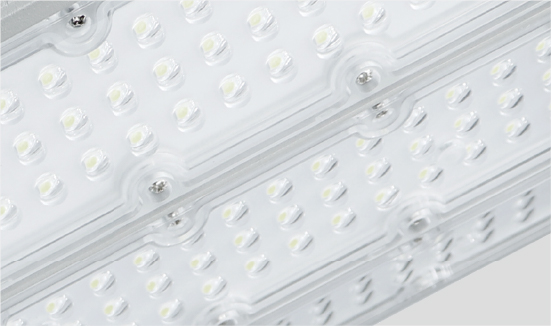

Professional optical design for maximum lighting effect.

Imported LED chips offer energy efficiency, long lifespan, and high color rendering. Combined with a deep lens and dual-angle structure design , the lens has stronger light focusing and better light emission. The dual-angle design expands the illumination range, ensuring uniform light without blind spots and clearer outdoor lighting.

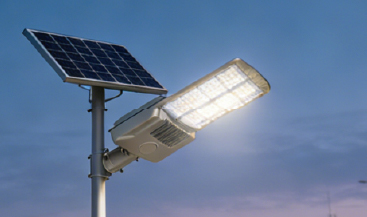

⇒How to install and use street lights?

Installation mode

High pole installation

Wall installation

Fixture installation

Fixing the photovoltaic panel: Use the matching bracket to install the photovoltaic panel on the top/upper part of the light pole, facing south without obstruction, and lock it after adjusting the light-receiving angle;

Fixing the lamp body: Install the lamp body in the lower part of the lamp post, adjust the lighting angle, and lock it in place with fasteners;

Wiring sealing: Align and plug in the waterproof connectors of the photovoltaic panel and the lamp body, tighten the waterproof nuts, and use cable ties to organize the wiring to prevent pulling.

Debugging and inspection: Confirm that the lamp body and photovoltaic panel are stable, test the light control/remote control function, and the lamp is ready when it can charge during the day and light up at night normally.

Fixing the light fixture: Drill holes in the wall, insert expansion tubes, and use expansion screws to lock the light fixture bracket in place. Adjust the lighting angle and then reinforce it.

Solar panel mounting: Use expansion bolts to fix the solar panel bracket to a nearby open south-facing wall using the same method, adjust the light-receiving angle, and tighten.

Tighten the waterproof connectors and tidy the wiring; check for stability and test the lighting function.

Fixing the lamp body: Place the special clamp (hoop) on the utility pole/post, tighten the lamp body bracket, and then tighten the clamp screws. Adjust the lighting angle.

Photovoltaic panel fixing: Use clamps to fix the photovoltaic panel bracket to the same side/adjacent column structure (facing south without obstruction), adjust the light-receiving angle and lock it in place;

Tighten the waterproof connectors and use cable ties to organize the cables and prevent them from being pulled.

Once all clamps are checked and found to be secure, the lighting function test is complete.

Note: Integrated solar streetlights ensure that the back of the solar panel is unobstructed .

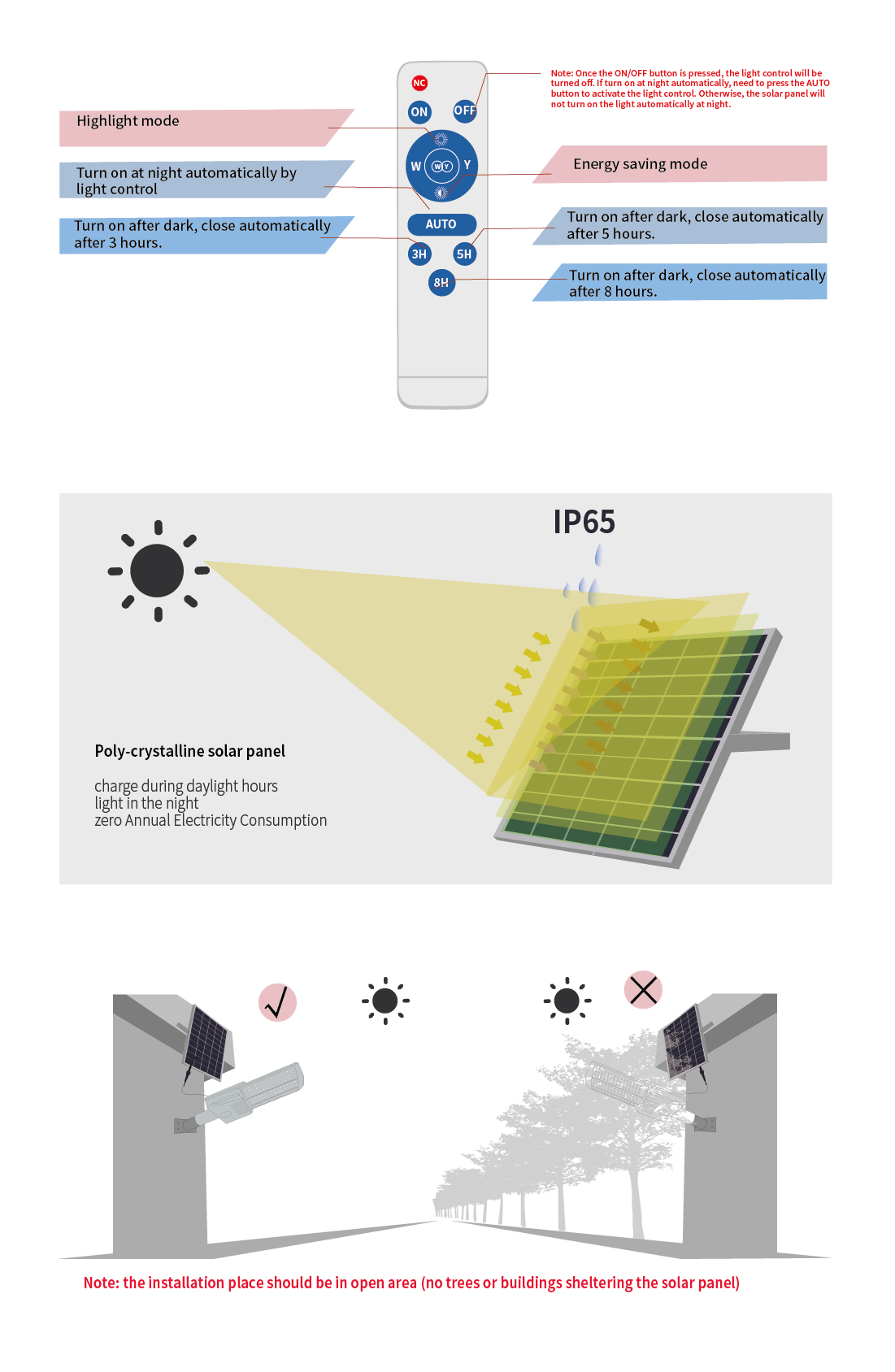

⇒Work mode

1.Default automatic mode - light control sensor

Features: Automatic charging during the day and automatic lighting at night, achieving zero annual power consumption.

Activation: Press the "Auto" button on the remote control to activate the automatic night light function upon first use.

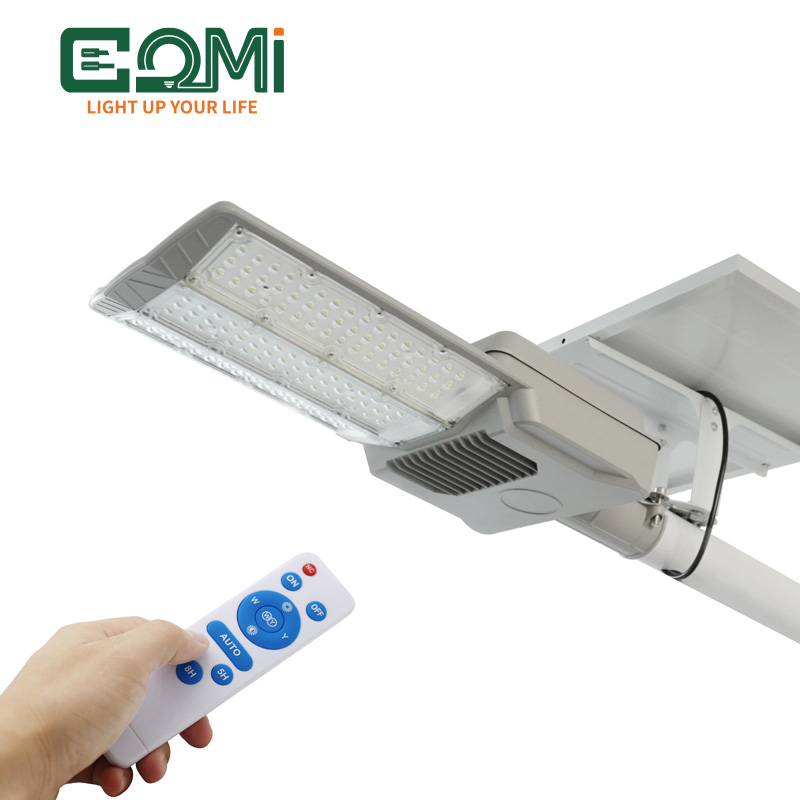

2. Remote control operation mode

High brightness mode: One-click to turn on the highest brightness to meet high-brightness lighting needs.

Energy-saving mode: Low power consumption operation, balancing energy saving and basic lighting.

Timer mode: Supports 3H/5H/8H timers, automatically turns on after dark and turns off after the corresponding duration.

Note: Pressing the "On/Off" button on the remote control will turn off the automatic mode; to restore the automatic night light, you need to press the "Auto" button again.

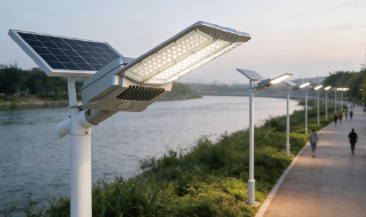

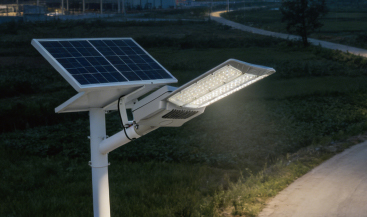

⇒Application scenarios


Rural roads: Adaptable to environments without wiring, photovoltaic panels allow for flexible selection of light-gathering points, ensuring lighting for nighttime travel.	Campus/School Campus: The split layout adapts to the building plan and meets the requirements for large-scale lighting of walkways and playgrounds.	Courtyard/Factory Area: Install photovoltaic panels in open areas, and place lights at fixed points to balance lighting and aesthetics.

⇒More street light designs to develop！

Size and Structure: Lamp body size, lamp mold, mounting device and accessories can be customized. Optical Performance: Beam angle, color temperature (2700K-10000K), color rendering index (CRI>80/90/95Ra), etc. can be customized.

Drive function : Intelligent drive: Customizable light control/time control switch , multiple switching and dimming modes.

Energy efficiency: Customizable high conversion efficiency, high power factor (PF) power supplies.

Packaging and Labeling: Small-batch packaging design, brand label printing, custom surface treatment

Brand promotional materials: product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual systems: Brand logo printing, customized product color schemes.

⇒Frequently Asked Questions (FAQ)

Q: Is this model suitable for scenarios that require large-size solar panels/high-power lighting and pursue longer battery life?

A: Suitable. The split design is not limited by the space of the lamp body, and can be equipped with higher power photovoltaic panels and batteries, resulting in stronger energy storage and lighting capabilities. It is suitable for the needs of high brightness and long-lasting lighting in rural main roads, squares, factories, etc.

Q: If the installation area has inconsistent lighting and illumination points, is a split-type solar street light suitable?

A: Suitable. The lamp body and photovoltaic panel can be installed separately. The photovoltaic panel can be placed independently in a south-facing, unobstructed light-receiving area, while the lamp body can be installed in the lighting area as needed, perfectly solving the problem of trees and buildings blocking sunlight, and ensuring more efficient charging.

Q: Is routine maintenance required after installation?

A: Simple maintenance is sufficient. Regularly clean the dust/fallen leaves on the surface of the photovoltaic panels (to ensure sunlight transmission), and check the wiring and fasteners for looseness once a year.
