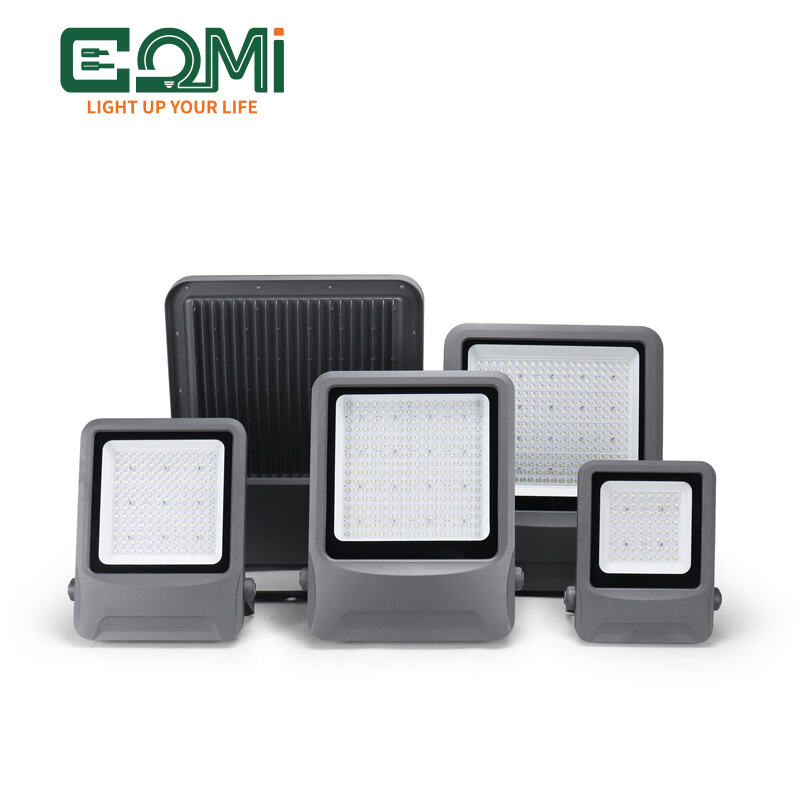

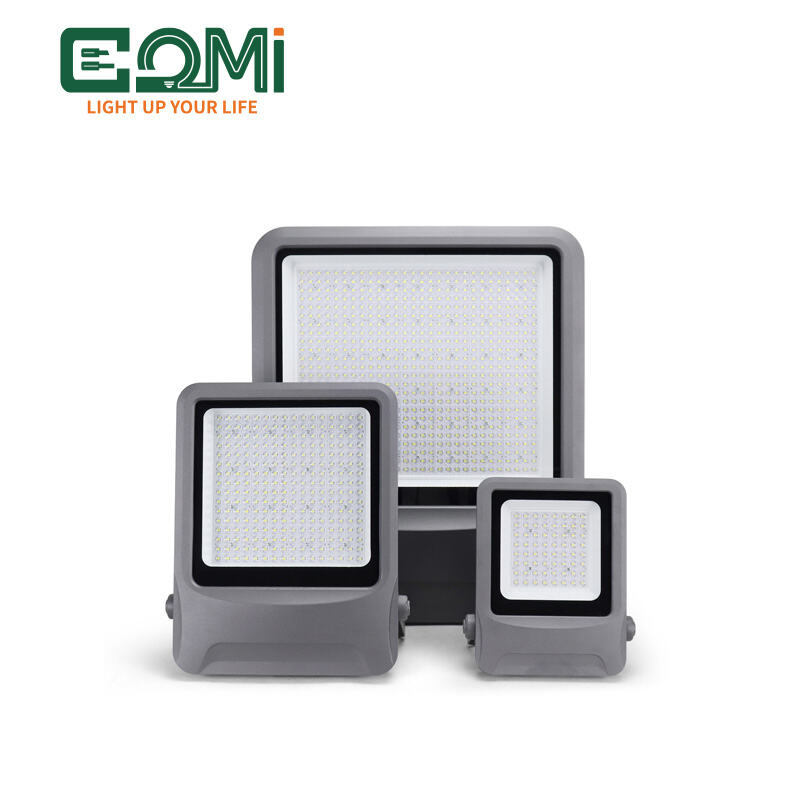

High Configuration Ip66 Led Flood Light For Outdoor Project

High Configuration Ip66 Led Flood Light For Outdoor Project

Product Model: COMI-FL42

Wattage: 50W 100W 150W 200W 300W 400W 600W

Materials: Die-cast aluminum housing + PC lens + tempered glass lampshade

Thickness: 50 mm - 60 mm

Color: Gray casing

Waterproof: IP66 rating

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about high Configuration flood light

COMI high-configuration floodlights feature a premium design, including a die-cast aluminum housing, PC lens, and tempered glass shade. Combining superior core components and meticulous craftsmanship, they offer a balance of lighting performance, durability, and safety. They meet basic lighting needs as well as are suitable for outdoor environments with higher requirements for light quality and protection. They are the preferred choice for industrial and commercial lighting, and an ideal lighting solution for outdoor public areas, municipal projects, and rural lighting.

⇒Detailed specifications

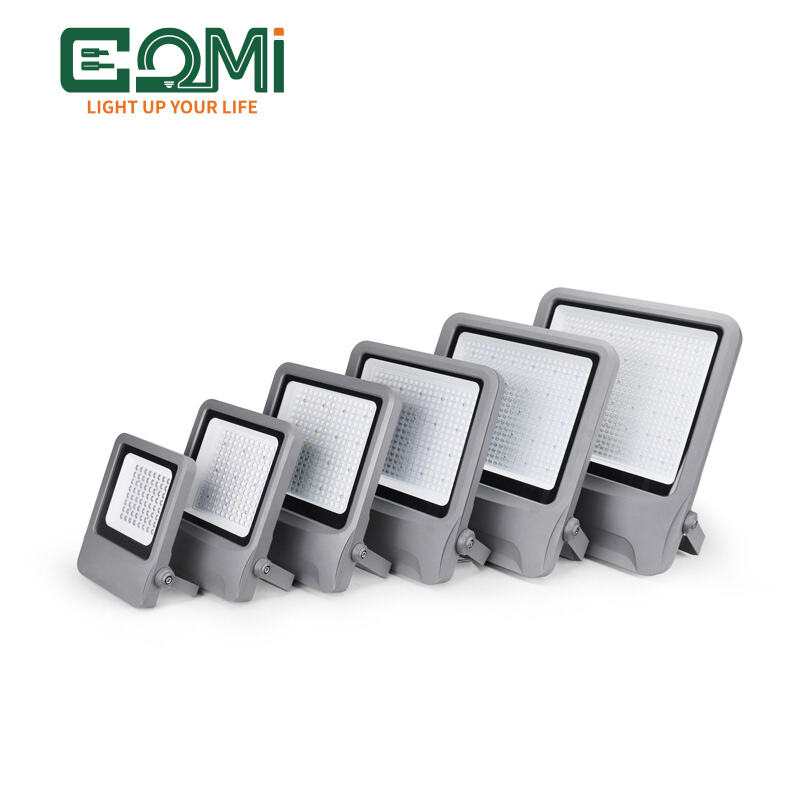

Model number	Power	Size	IP	Luminous flux
COMI-FL42-50W	50W	256x195x50mm	66	5500lm
COMI-FL42-100W	100W	315x240x60mm	66	11000lm
COMI-FL42-150W	150W	380x290x60mm	66	16500lm
COMI-FL42-200W	200W	420x350x60mm	66	22000lm
COMI-FL42-300W	300W	492x410x60mm	66	33000lm
COMI-FL42-400W	400W	492x410x60mm	66	44000lm
COMI-FL42-600W	600W	570x475x60mm	66	66000lm

⇒Product details

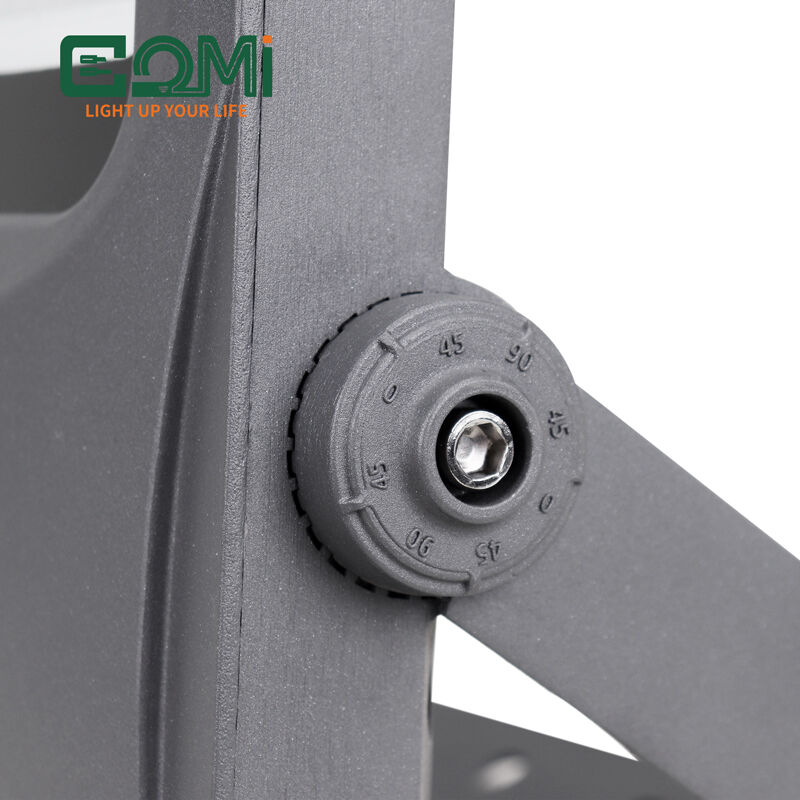

With a robust and durable design suitable for outdoor use, the die-cast aluminum lamp body is precision-cast and painted, making it oxidation-resistant and corrosion-resistant, and able to withstand complex outdoor environments. The upgraded and reinforced bracket allows for flexible adjustment of the lighting angle, providing strong stability. It also has an IP66 waterproof rating and 4KV surge protection capability, making it dustproof, waterproof, and resistant to voltage fluctuations, ensuring safe use outdoors.

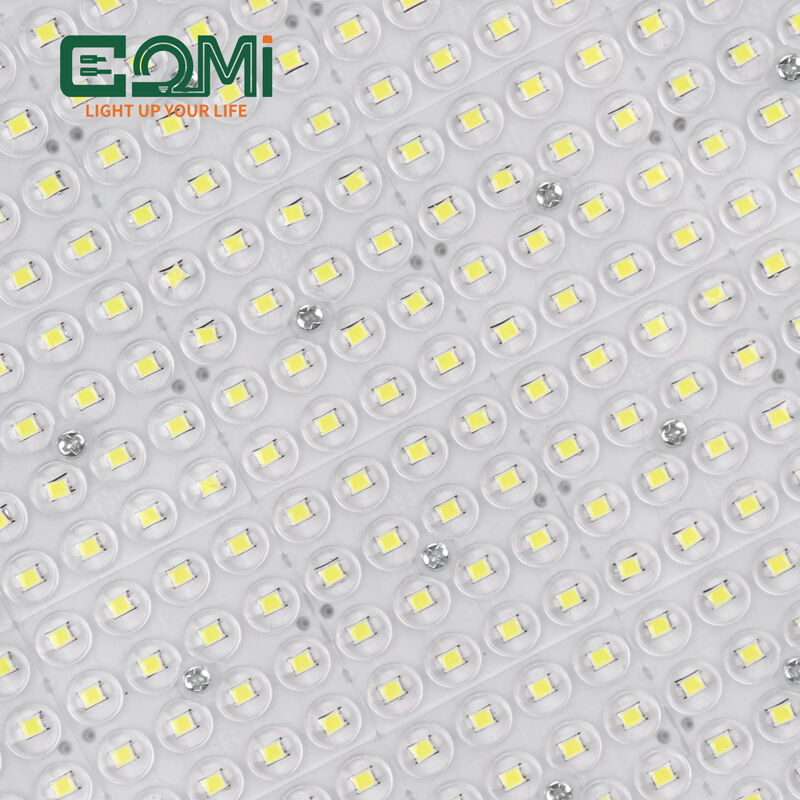

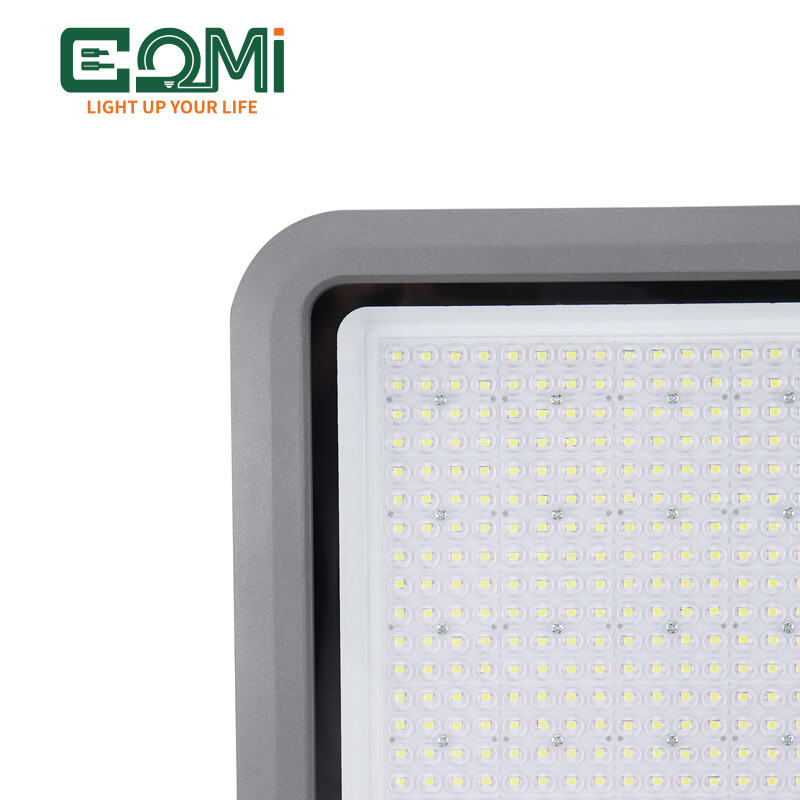

	The optical system features high brightness and uniformity, and efficient illumination. It uses 2835 model (6V/1W) LED beads, with a total light efficacy of 100lm/W, low energy consumption and sufficient brightness. It is equipped with a photoelectric PC lens, which ensures uniform light refraction without glare or dark areas. The tempered glass components are impact-resistant and wear-resistant, effectively protecting internal components and extending service life.
With stable and reliable heat dissipation and drive, and extended lifespan, it adopts a multi-chip heat dissipation structure, which can quickly dissipate heat, reduce lamp body temperature, and avoid component damage; equipped with non-isolated wide voltage drive, it is suitable for various voltage environments, and has built-in overcurrent protection and temperature control drive. With a PF value of up to 0.95, it has high power utilization and takes into account both energy saving and operational stability.

⇒How to install and use flood lights?

资源 2@2x-100.jpg

Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios


Warm light outlines the building's facade, highlighting its three-dimensional texture while providing practical lighting for entrances and exits, enhancing the nighttime ambiance and visibility.	Focusing on the sculpture's main body creates an artistic interplay of light and shadow, establishing a visual highlight while meeting the nighttime pedestrian lighting needs.	Directional illumination of the bridge's main structure provides basic lighting for pedestrian traffic and enhances the bridge's overall nighttime landscape.

⇒More Flood light designs to develop！

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. What power options are available for this series of lights? What scenarios are suitable for different power levels?

A1: This series includes 7 power ratings: 50W, 100W, 150W, 200W, 300W, 400W, and 600W.
- 50W: Suitable for small-area lighting such as country roads, school corners, and small gardens;
- 100W-150W: Suitable for medium-sized lighting in community roads, medium-sized squares, school playgrounds, etc.
- 200W-300W: Suitable for large-area lighting such as urban side streets, large parks, and industrial parks;
- 400W-600W: Suitable for large-area, high-brightness scenarios such as city squares, main roads, and large stadiums.

Q2. What does IP66 waterproof rating mean? Can it be used in heavy rain?

A2: IP66 waterproof rating is a high protection standard for outdoor lighting fixtures. The "6" represents complete dustproof (no dust can enter) and "6" represents the ability to withstand strong water spray (no damage from water spray in any direction). This lighting fixture can be used normally in complex outdoor environments such as heavy rain, dust, and spraying, without worrying about rainwater entering the interior and causing short circuits or damage.
