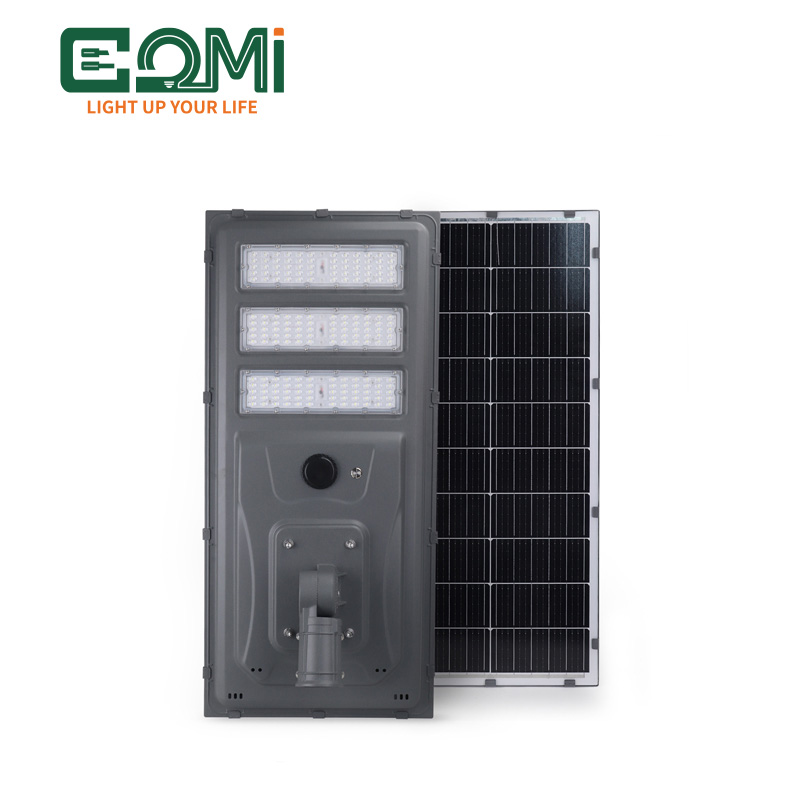

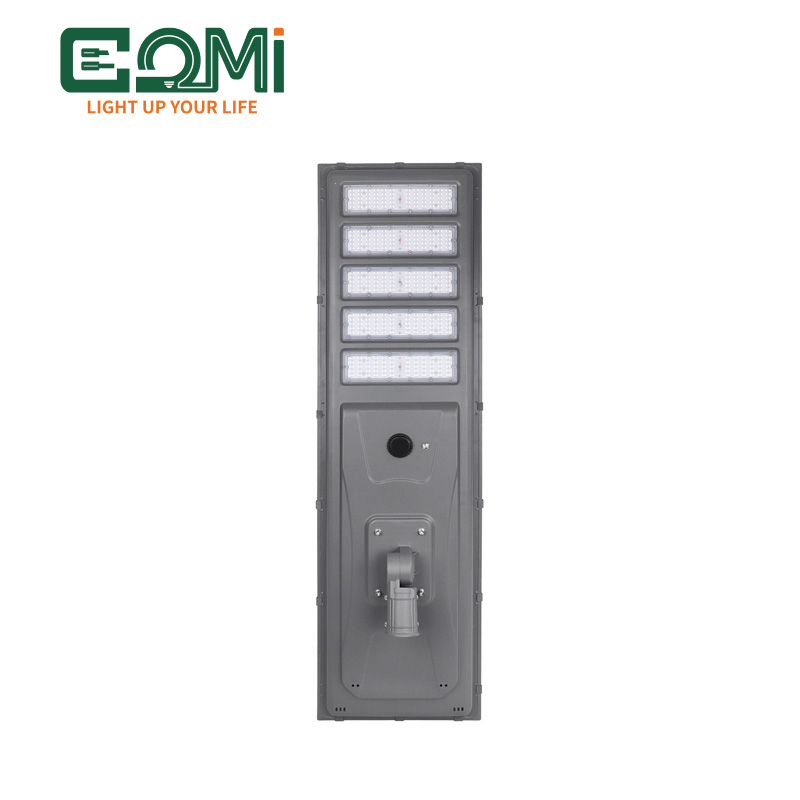

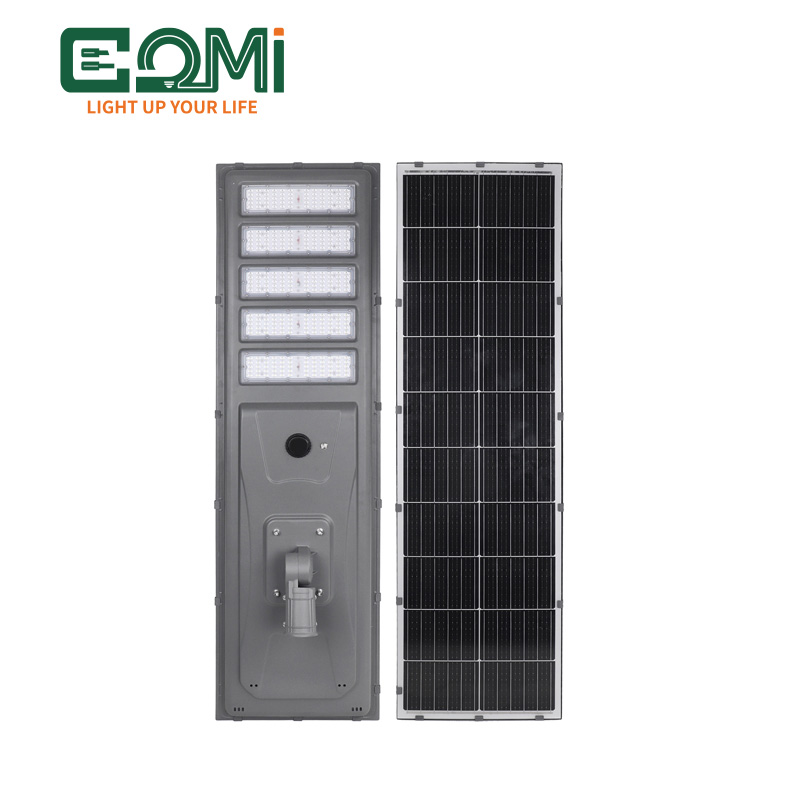

High Conversion Rate Solar Street Light

Product Model: KEOU-LD015

Product wattage: 300W 400W 500W

Materials: Stamped iron + PC shell

Waterproof rating: IP66

LED chips: 2835/1W Ra80

Control methods: light sensor control, remote control mode

MOQ: 500>=)

Introduction

⇒Learn more about our street light

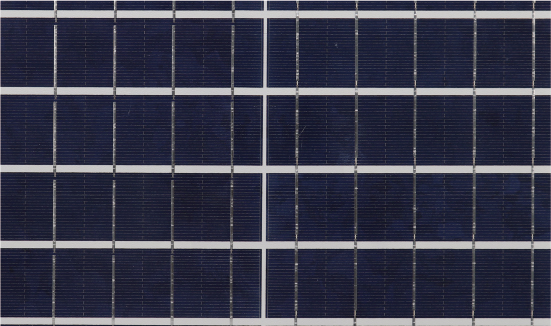

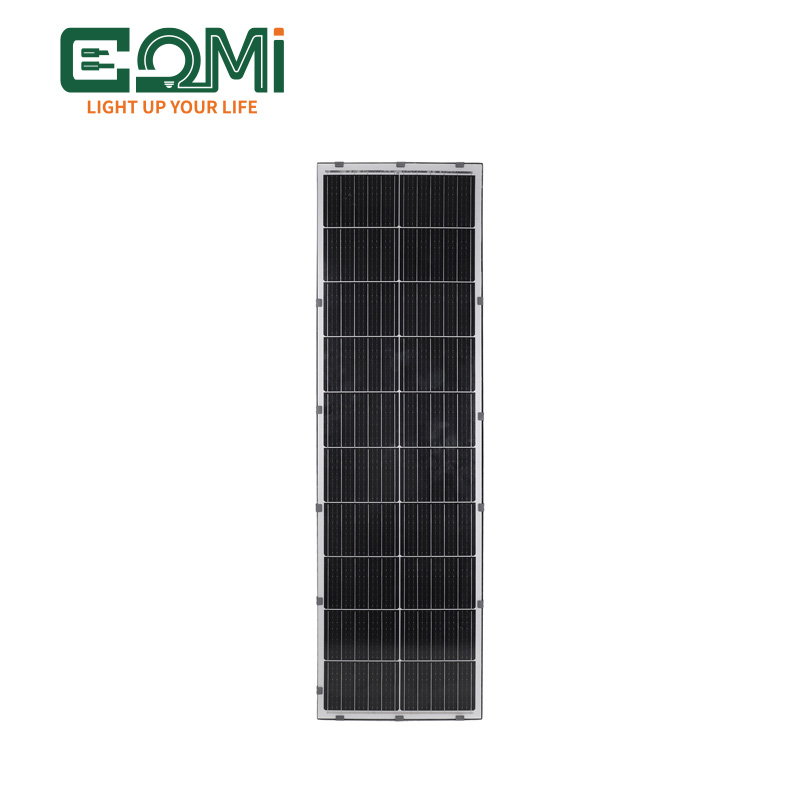

This integrated solar street light is designed for outdoor use, requiring no wiring and easy to install, suitable for courtyards, streets, walkways, and other scenarios. It features dual-mode intelligent operation with light control and human body induction: automatic charging during the day and low light when no one is around, and strong light when someone is present, requiring no manual intervention. Imported LED chips are energy-saving, environmentally friendly, have high color rendering, and long lifespan, while the high-efficiency polycrystalline silicon solar panel efficiently stores electricity even on cloudy days. The UV-resistant ABS+PC shell is waterproof, corrosion-resistant, and has excellent heat dissipation, with an IP66 waterproof rating, ensuring stable and durable outdoor use for extended periods.

⇒Detailed specifications

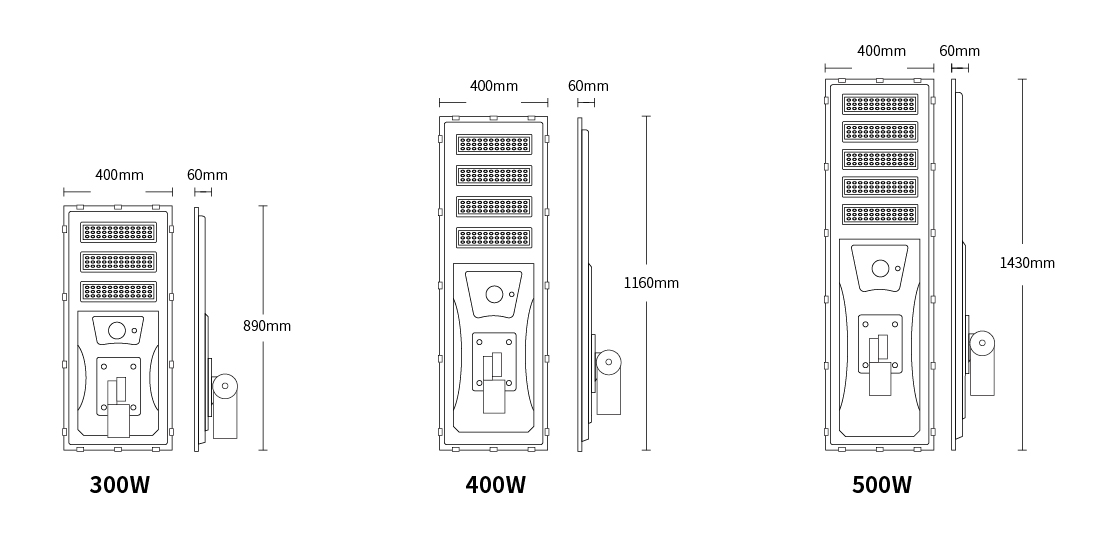

Model number	Power	Size (mm)	IP
KEOU-LD015-300W	300W	887x400x280	66
KEOU-LD015- 4 00W	400W	1160x400x280	66
KEOU-LD015- 5 00W	500W	1435x400x280	66

⇒Product details

Fully waterproof protection, highly adaptable to outdoor use: IP66 dustproof and waterproof rating, paired with industrial-grade thick wire and strictly waterproof and isolated connectors, providing all-around protection against outdoor rain and dust, ensuring more reliable use.

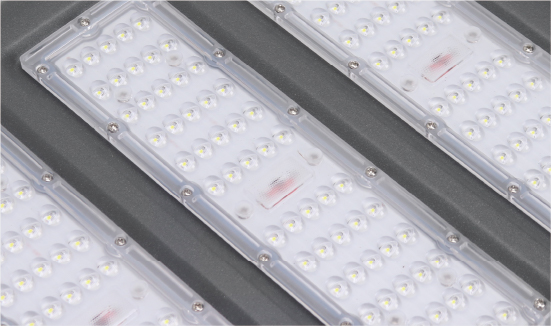

	High-transparency and durable optical design for maximum lighting effect: High-quality tempered glass lampshade, resistant to high temperatures and with a light transmittance of 99%, maximizes the release of light source brightness and provides clear and lossless color rendering.
Aviation-grade aluminum precision lamp body, enhanced durability: The precision die-cast aviation-grade aluminum lamp body boasts high hardness and impact resistance, superior heat dissipation efficiency, effectively protecting internal components and extending the overall lifespan of the lamp.

⇒How to install and use street lights?

Installation mode

High pole installation	Wall installation	Fixture installation
Secure the lamp body to the top/middle of the street light pole using the matching fasteners, adjust to the appropriate height, and then tighten to complete the installation.	Use expansion screws to fix the lamp body directly to the high point of the wall .	Use a special clamp kit to secure the lamp body to a columnar structure such as a utility pole or tree trunk, and then tighten the clamp.
Note: Integrated solar streetlights ensure that the back of the solar panel is unobstructed .

⇒Work mode

1. Default automatic mode - light control sensor

Features: Automatic charging during the day and automatic lighting at night, achieving zero annual power consumption.

Activation: Press the "Auto" button on the remote control to activate the automatic night light function upon first use.

2. Remote control operation mode

High brightness mode: One-click to turn on the highest brightness to meet high-brightness lighting needs.

Energy-saving mode: Low power consumption operation, balancing energy saving and basic lighting.

Timer mode: Supports 3H/5H/8H timers, automatically turns on after dark and turns off after the corresponding duration.

Note: Pressing the "On/Off" button on the remote control will turn off the automatic mode; to restore the automatic night light, you need to press the "Auto" button again.

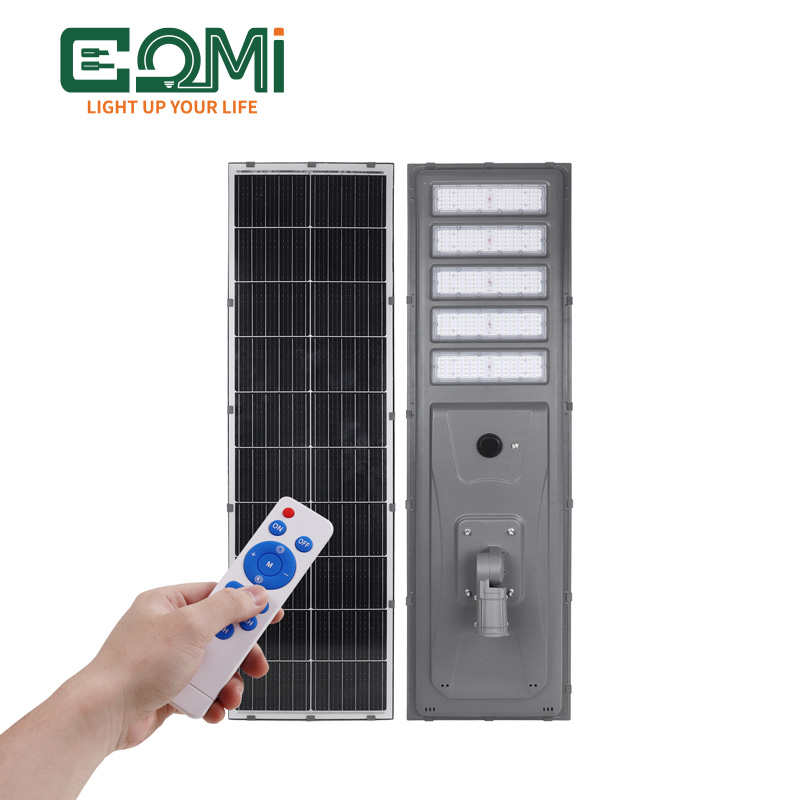

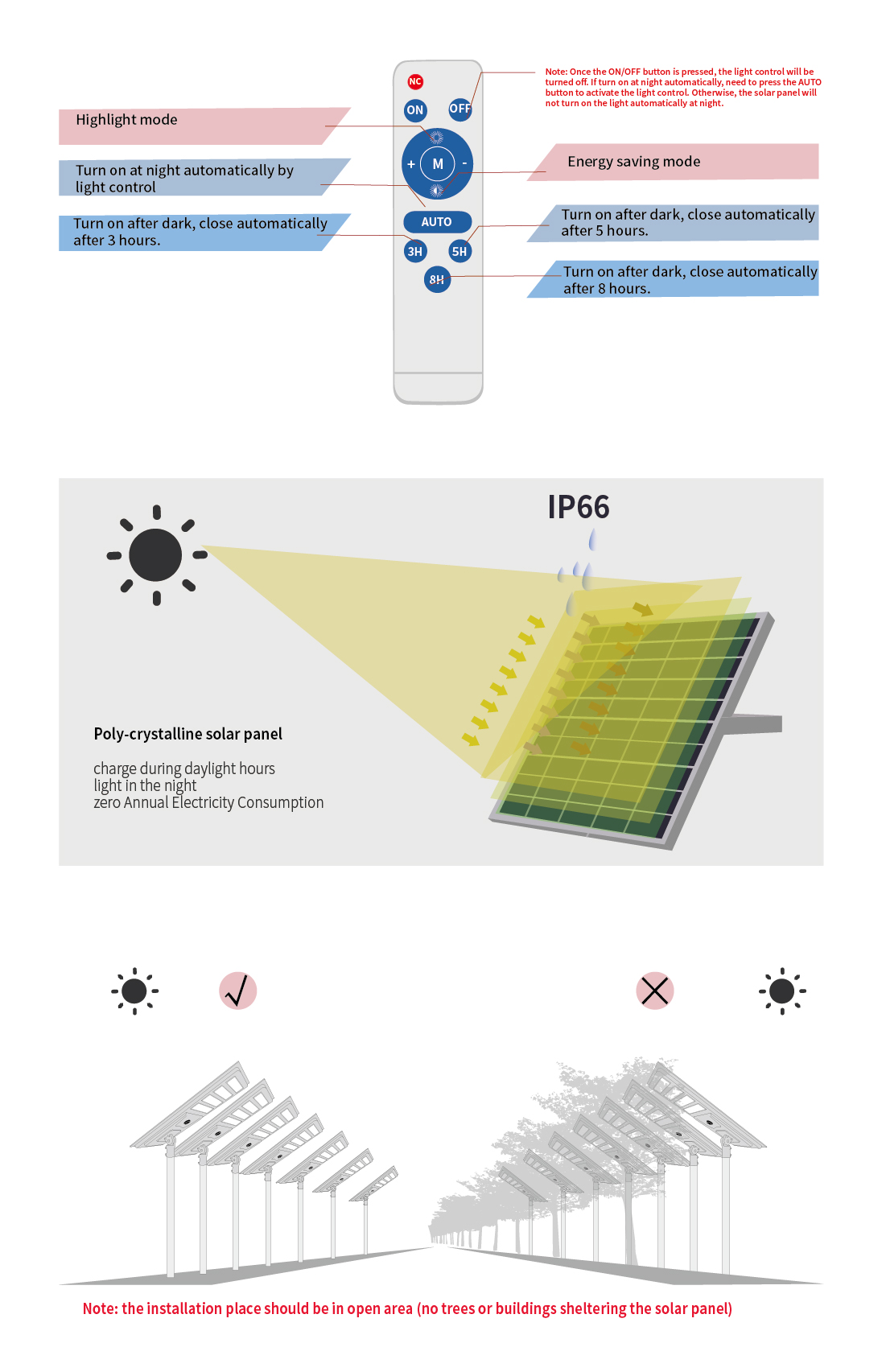

⇒Remote Control User Manual

button	Function Description
ON	Enabling high brightness mode forces constant illumination; in this mode, the light control function will be disabled.
OFF	With the lights off, the light control function will be disabled in this mode.
M (Brightness Adjustment Zone)	Press the "+" button to increase brightness, and press the "-" button to decrease brightness; the center button toggles between high brightness and energy-saving modes.
AUTO	Activate the automatic light control mode to automatically turn on the lights when the ambient light dims at night, restoring the light control logic.
3H	Timer mode: Automatically turns on the lights after sunset and automatically turns them off after 3 hours.
5H	Timer mode: Lights automatically turn on after sunset and automatically turn off after 5 hours.
8H	Timer mode: Lights automatically turn on after sunset and automatically turn off after 8 hours.

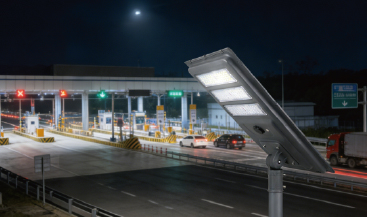

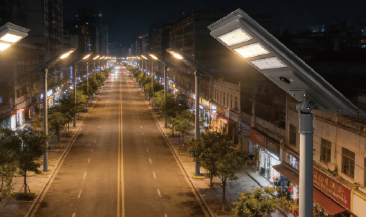

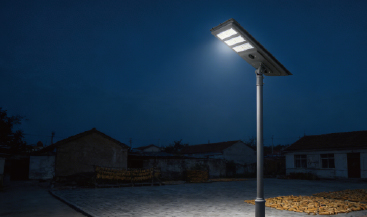

⇒Application scenarios


Ecological parks/industrial parks: Suitable for lighting around park trails and guard posts; intelligent sensors enhance security; durable structure suitable for high-frequency use in the park.	Municipal pedestrian walkways/urban greenways: compatible with urban outdoor public lighting scenarios, eliminating the need for construction and wiring to reduce implementation costs, and featuring intelligent sensing to suit citizens' nighttime travel needs.	Premium Community: Wireless installation for rapid deployment; smart lighting addresses residents' needs for both mobility and energy conservation, enhancing the overall quality of the community.

⇒More street light designs to develop！

Size and Structure: Lamp body size, lamp mold, mounting device and accessories can be customized. Optical Performance: Beam angle, color temperature (2700K-10000K), color rendering index (CRI>80/90/95Ra), etc. can be customized.

Drive function : Intelligent drive: Customizable light control/time control switch , multiple switching and dimming modes.

Energy efficiency: Customizable high conversion efficiency, high power factor (PF) power supplies.

Packaging and Labeling: Small-batch packaging design, brand label printing, custom surface treatment

Brand promotional materials: product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual systems: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1: What are the core advantages of the high-wattage model compared to the regular model?

A1: The high wattage brings stronger illuminance and a wider illumination range. The nighttime strong light mode is brighter and can meet the large-area lighting needs of courtyards, streets, walkways and other scenarios, while retaining the core advantages of low energy consumption and intelligent sensing.

Q2: What are the advantages of stamped iron lamp bodies compared to other materials?

A2: Made of stamped iron with a precise forming process, the lamp body has a stable structure, stronger wind and pressure resistance, and is not easy to shake after outdoor installation. It can better protect the internal components and extend the overall service life of the lamp.
