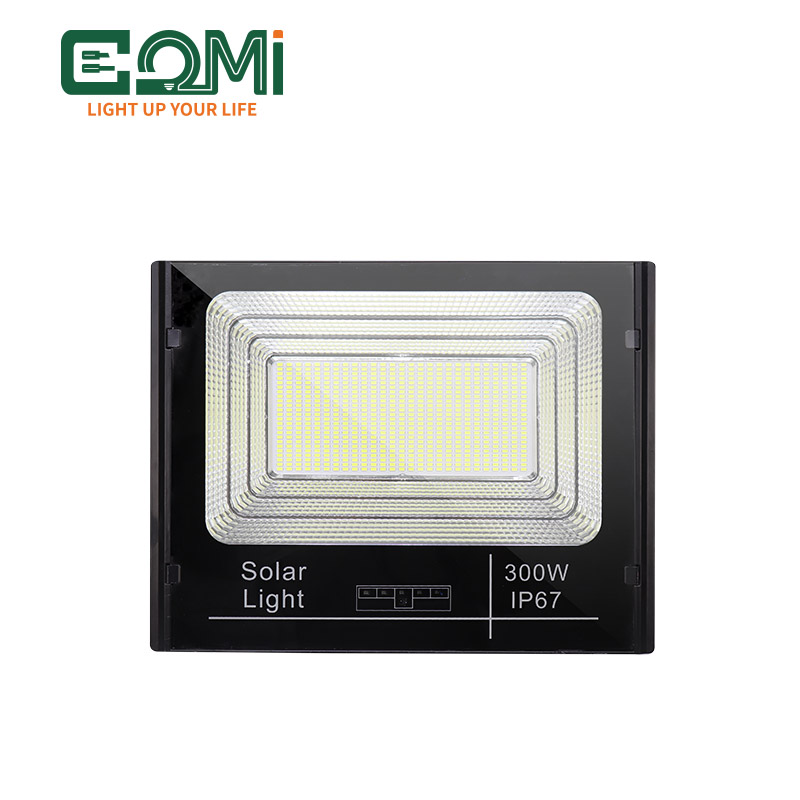

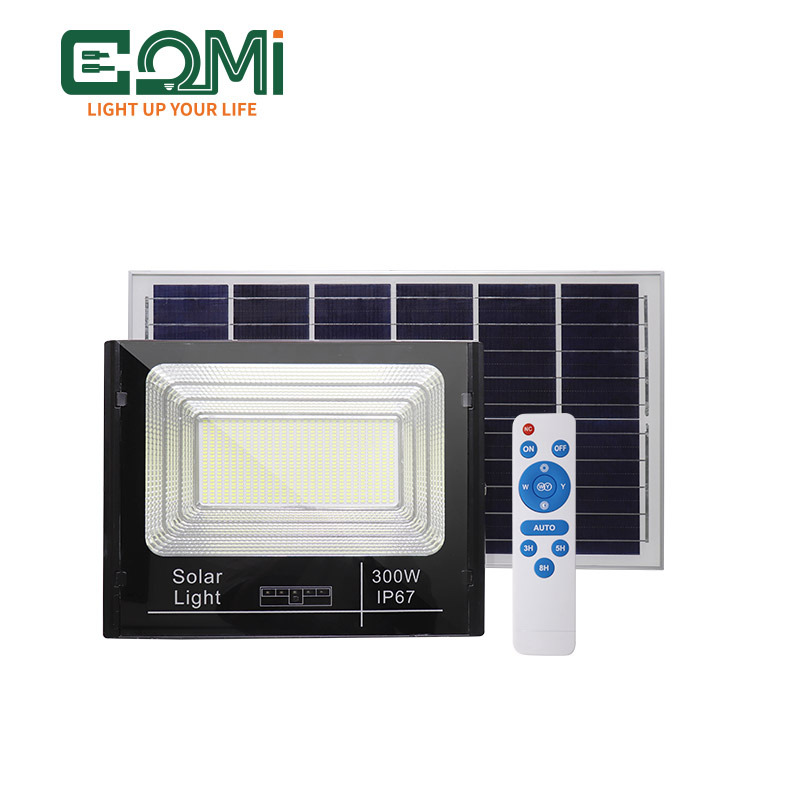

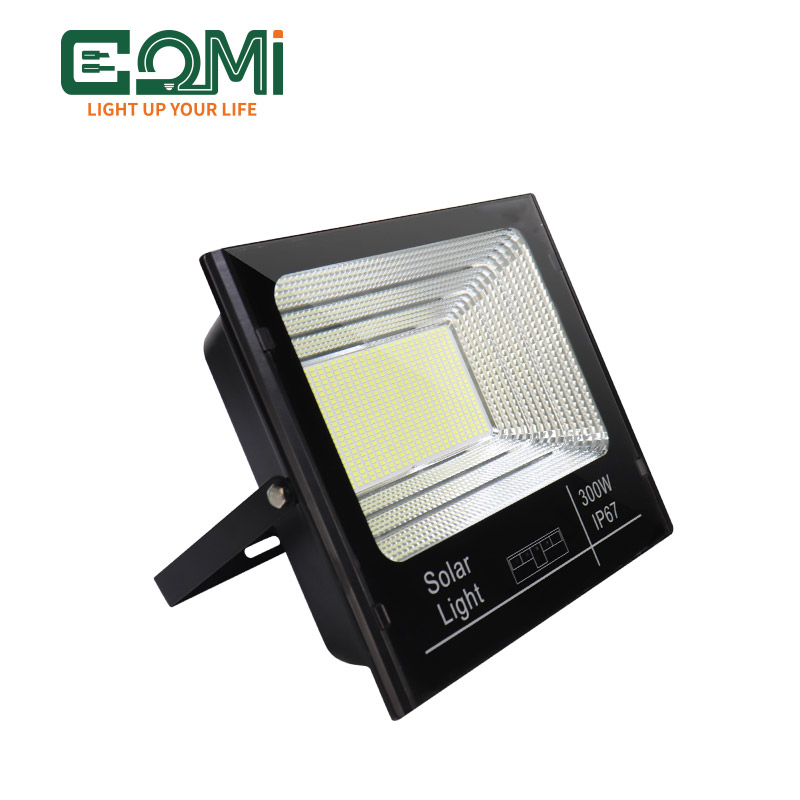

High Transmittance Solar Flood Light

Product Model: KEOU-SLF1

Product wattage: 25W, 40W, 60W, 100W, 200W, 300W

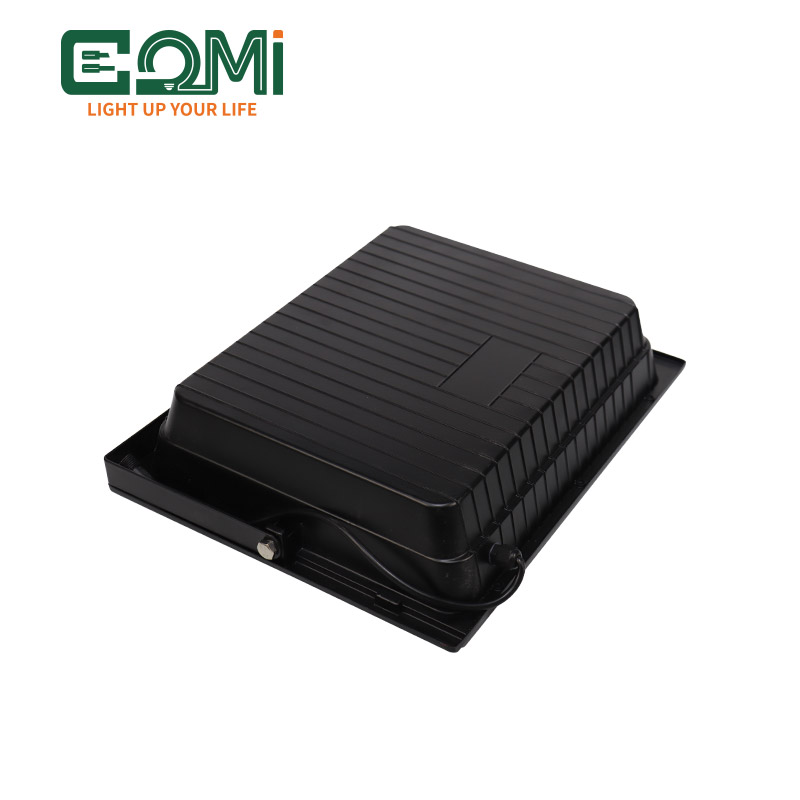

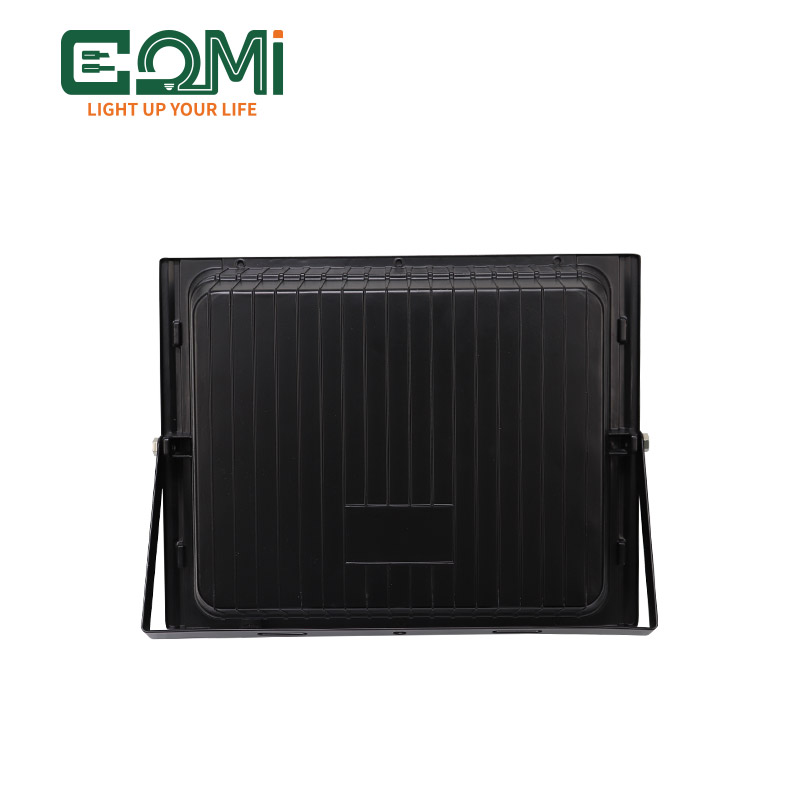

Materials: Precision die-cast aerospace aluminum shell + ultra-clear tempered glass face shield

Glass properties: Mohs hardness above 6, high temperature resistance, light transmittance 91%.

Reflective configuration: Nano reflector (95% reflectivity)

Waterproof rating: IP66

LED chips: 2835, Ra80

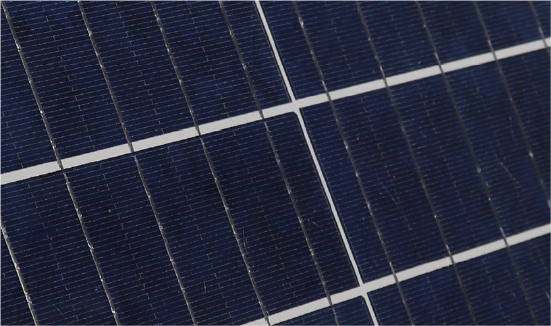

Solar panel: A1 grade polycrystalline thin-film solar cells, light transmittance 91%+, photoelectric conversion efficiency 20%.

Battery configuration: Grade A 32650 high-rate discharge lithium iron phosphate, internal resistance 5-20 milliohms, cycle life > 2000 cycles.

Control method: Built-in sensitive sensor probe + intelligent infrared remote control

Digital display configuration: No display

Connector: Industrial-grade isolated waterproof connector (thick wire + waterproof plug)

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our street light

This outdoor solar floodlight uses high-quality core components, with a solar panel and a Grade A lithium battery for zero power consumption and energy saving, making it suitable for scenarios without mains power and public lighting. It is equipped with a sensitive sensor, remote control, and a high-utilization reflector to ensure no blind spots, making it suitable for security, construction sites, and other scenarios. The aviation aluminum shell and waterproof design can withstand extreme weather and can be used for a long time at the seaside and in mountainous areas, combining practicality, durability, and environmental protection.

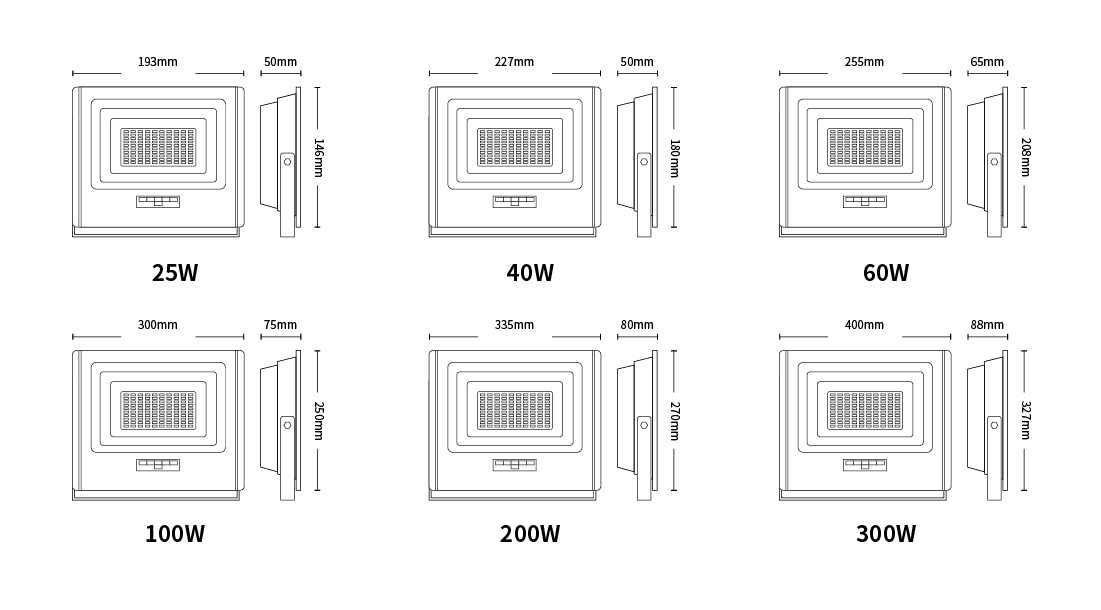

Specifications and parameters

Model number

Power

Size (mm)

IP

KEOU-SLF1-25W

25W

185x145x45

66

KEOU-SLF1-40W

40W

225x200x45

66

KEOU-SLF1-60W

60W

250x200x68

66

KEOU-SLF1-100W

100W

295x240x73

66

KEOU-SLF1-200W

200W

350x285x90

66

KEOU-SLF1-300W

300W

400x315x90

66

⇒Product details

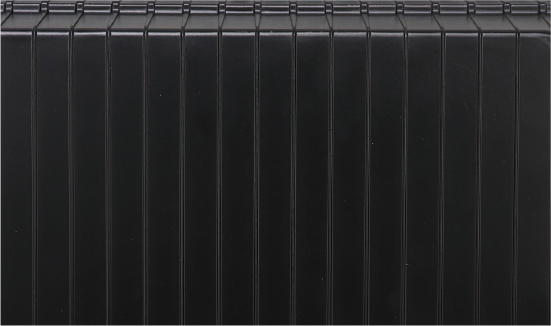

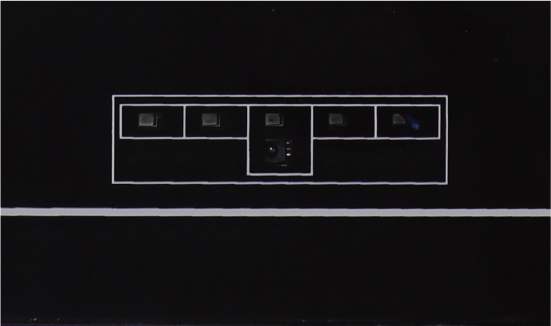

2-产品特点(1)0.jpg 2-产品特点(2)0.jpg 2-产品特点(3)0.jpg

High-efficiency energy storage: Grade A lithium iron phosphate for long-lasting battery life, automatic charging and discharging with zero power consumption, energy-saving and burden-free.

Superior Lighting: High-brightness LED beads + high-reflectivity nanoplate, providing uniform light with no dark areas.

Outdoor-friendly design: Aviation-grade aluminum corrosion-resistant body + fully waterproof design, weather-resistant, durable, and easy to operate.

⇒How to install and use street lights?


Installation mode

Fixed installation (wall/clamp)

hoisting and installation

Placement and Use

The light fixtures are mounted on a wall/pole. The solar panels can be individually mounted on a nearby, unobstructed, high location. The independent placement of the light fixtures and solar panels ensures stability and durability after installation.

The light fixtures are suspended in high-ceilinged spaces. Solar panels can be individually suspended/fixed to the area with the best natural light (roof/frame). Simultaneous suspension is not required, making it suitable for high-altitude lighting scenarios.

The light fixtures are placed directly on the ground. Solar panels can be placed nearby or fixed in a sunny location. Both are easily movable, combined, and adjusted.

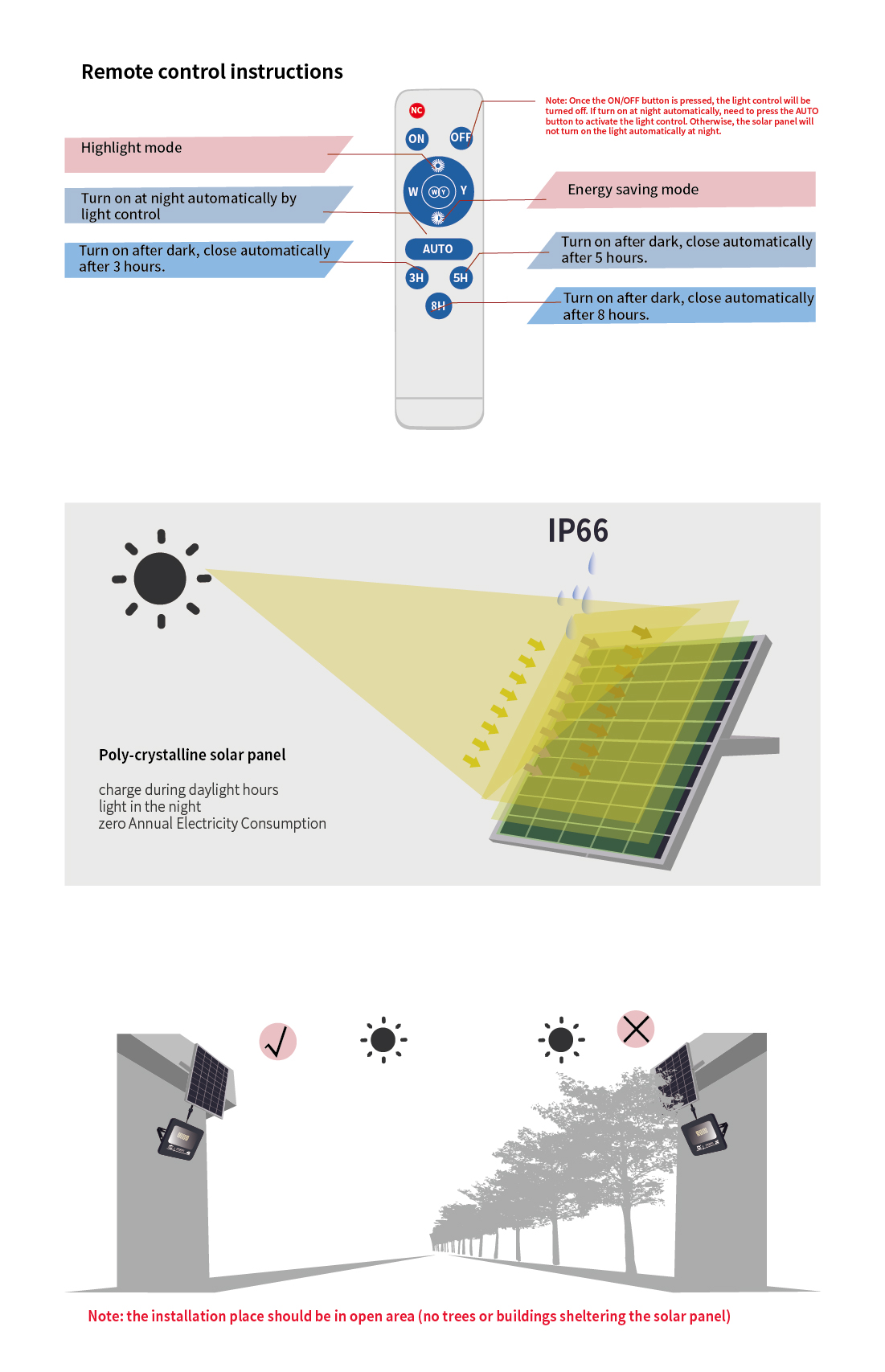

Working mode and operation:

1. Automatic mode (default)

Features: Automatic charging during the day and automatic lighting at night, achieving zero annual power consumption.

Activation: Press the "Auto" button on the remote control to activate the automatic night light function upon first use.

2. Remote control operation mode

High brightness mode: One-click to turn on the highest brightness to meet high-brightness lighting needs.

Energy-saving mode: Low power consumption operation, balancing energy saving and basic lighting.

Timer mode: Supports 3H/5H/8H timers, automatically turns on after dark and turns off after the corresponding duration.

Note: Pressing the "On/Off" button on the remote control will turn off the automatic mode; to restore the automatic night light, you need to press the "Auto" button again.



⇒Application scenarios

4-应用场景10.jpg 4-应用场景20.jpg 4-应用场景30.jpg

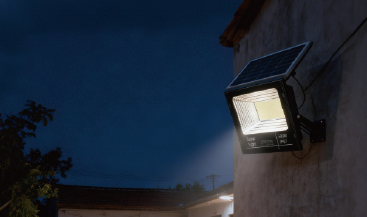

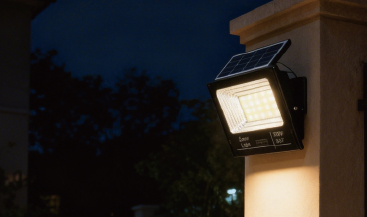

Application of courtyard and fence lighting: Floodlights illuminate the courtyard and surrounding fence, providing clear lighting for daily passage and home security.

Construction site lighting applications: Floodlights illuminate the construction area and work surface, providing bright lighting and construction safety for nighttime construction.

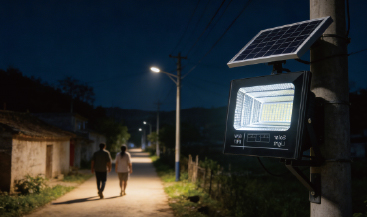

Rural road lighting applications: Floodlights illuminate village roads and intersections, providing basic lighting for nighttime travel and road safety.



⇒More street light designs to develop!

Size and Structure: Lamp body size, lamp mold, mounting device and accessories can be customized. Optical Performance: Beam angle, color temperature (2700K-10000K), color rendering index (CRI>80/90/95Ra), etc. can be customized.

Drive function : Intelligent drive: Customizable light control/time control switch , multiple switching and dimming modes.

Energy efficiency: Customizable high conversion efficiency, high power factor (PF) power supplies.

Packaging and Labeling: Small-batch packaging design, brand label printing, custom surface treatment

Brand promotional materials: product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual systems: Brand logo printing, customized product color schemes



Frequently Asked Questions (FAQ):

Q1: How does the product achieve automatic lighting?

A1: The automatic function needs to be activated by pressing the "Auto" button on the remote control. The built-in sensitive sensor will detect changes in ambient light and automatically turn on the lighting after dark, and automatically turn off according to the preset 3H/5H/8H mode. If the automatic function is not activated, the switch needs to be manually controlled by the remote control.



Q2: Will solar panels be damaged if they are exposed to the outdoors for a long time?

A2: No. The solar panels are made of tempered glass with an ultra-white finish, achieving a light transmittance of over 91%. They also have anti-yellowing properties, meaning they won't turn yellow even after long-term exposure to sun and rain. Furthermore, they are corrosion-resistant and anti-aging, ensuring long-term, efficient charging.



Q3: How long is the battery life?

A3: The battery uses Grade A 32650 high-rate discharge lithium iron phosphate, with a charge-discharge cycle life of more than 2000 times. Under normal outdoor use, it can meet the long-term battery life requirements. The built-in balanced charge and discharge circuit can effectively prevent overcharging and over-discharging, further extending the battery life.
