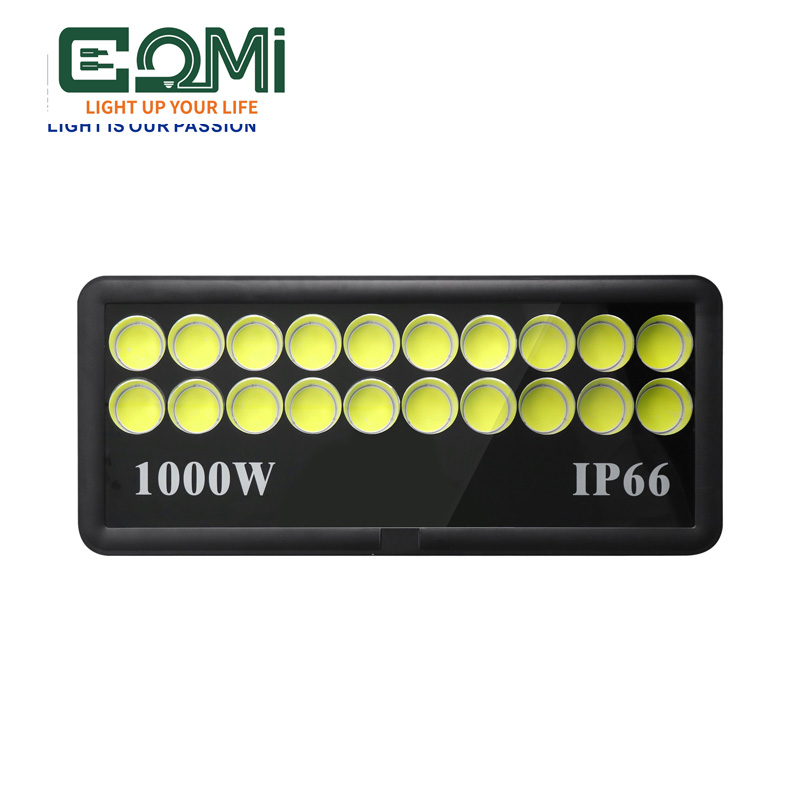

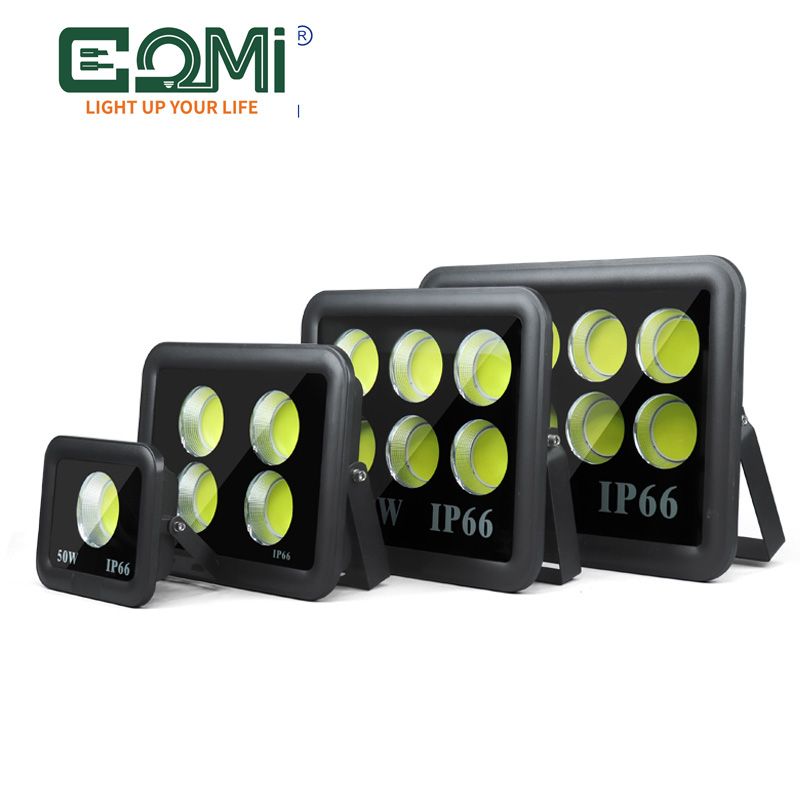

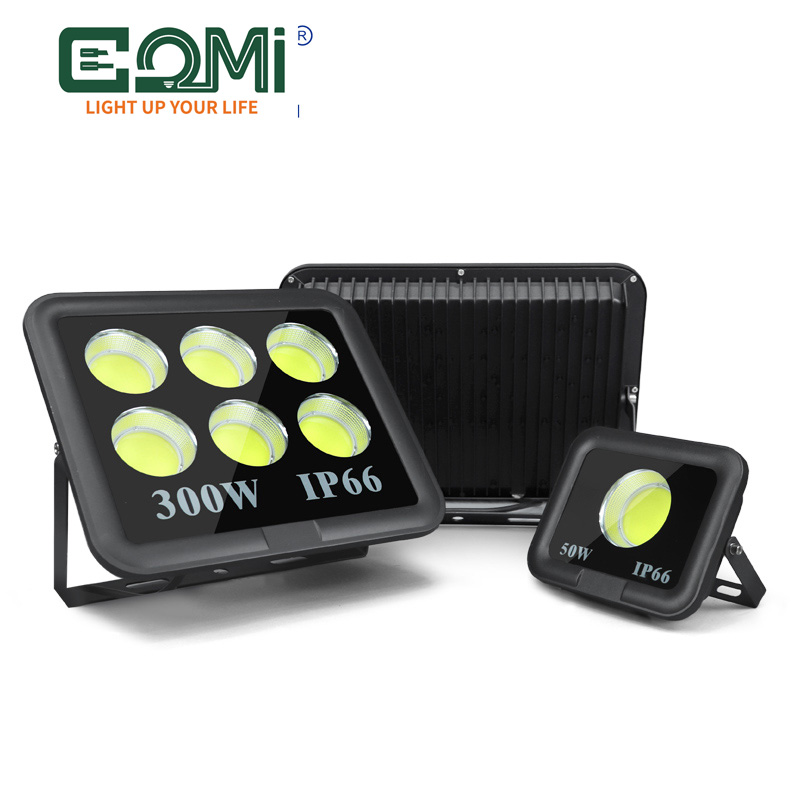

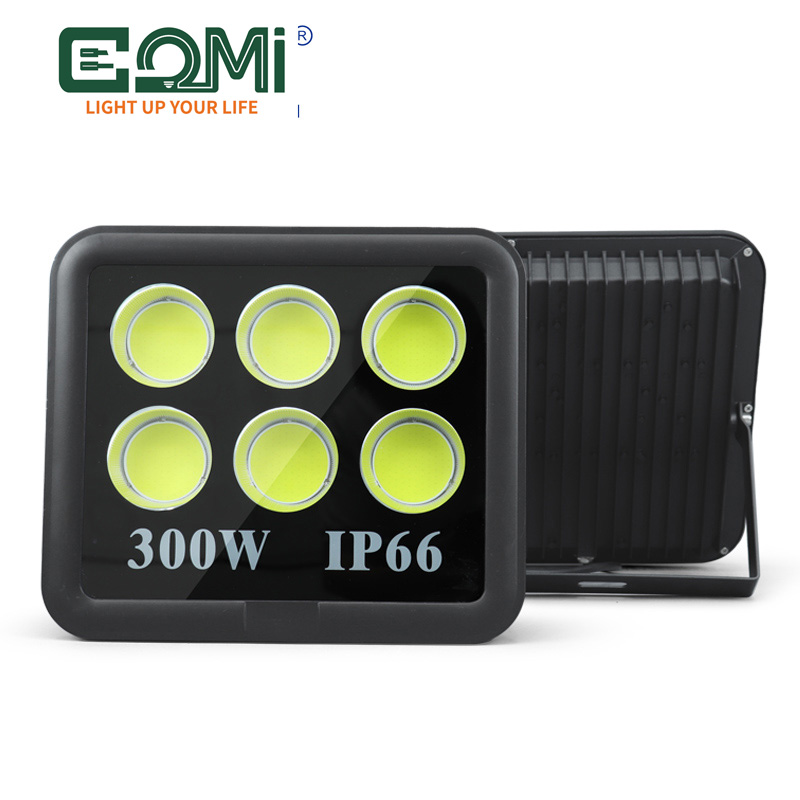

High Wattage 1200W COB Flood Light

Product Model: KEOU -FL23

wattage: 50W, 100W, 150W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W,1200W

Materials: Die-cast aluminum + tempered glass

Thickness: 50mm-70mm

Color: Black casing

Waterproof: IP66 rating

LED chips: COB integrated light source, 80lm/W

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our ultra-thin flood light

COMI high-power COB LED floodlights are designed for outdoor engineering projects. Their robust IP66 protection rating and flexible 180° rotation perfectly meet the needs of contractors, property managers, and planners. Suitable for locations such as campuses, plazas, and residential areas, these lights effectively reduce maintenance costs and efficiently meet various high-power lighting requirements.

⇒Detailed specifications

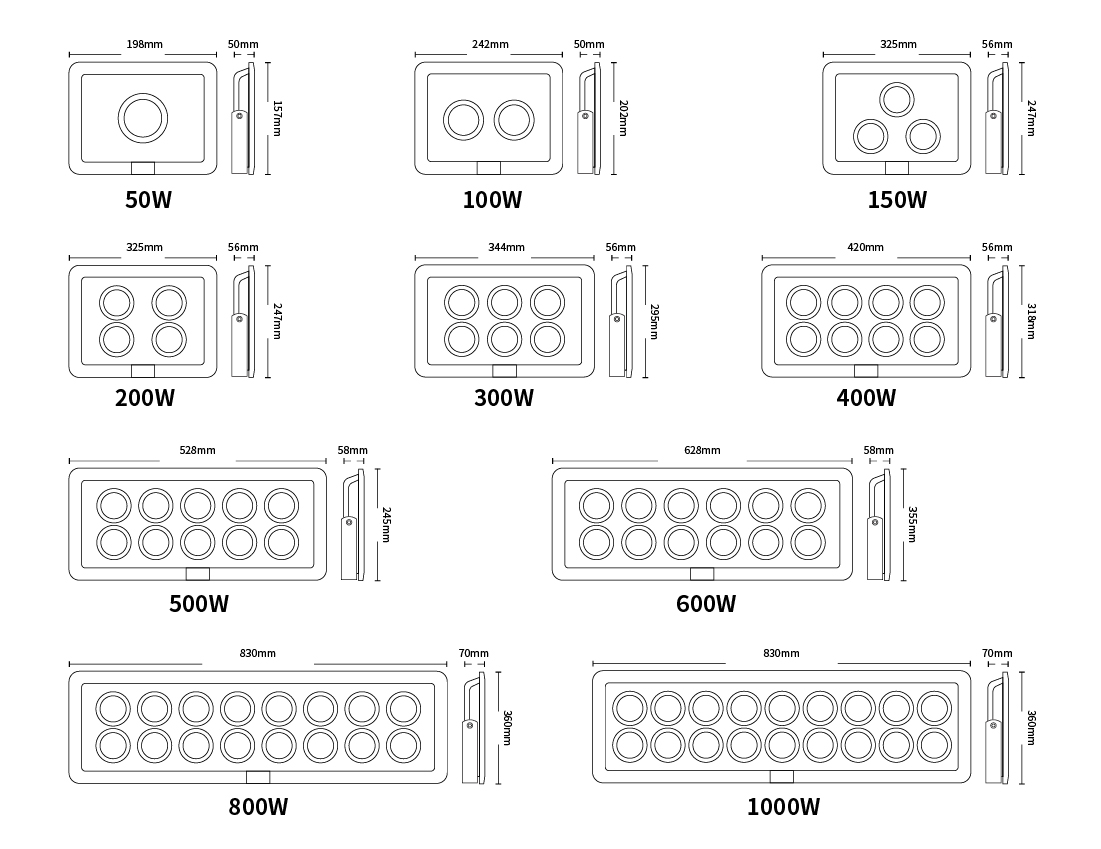

Model number	Power	Size (mm)	IP	Luminous flux
KEOU -FL23 -50W	50W	198x 157x 50	66	4000lm
KEOU -FL23- 100W	100W	242x 202x 50	66	8000lm
KEOU -FL23 -150W	150W	325x 247x 56	66	12000lm
KEOU -FL23 -200W	200W	325x 247x 56	66	16000 lm
KEOU -FL23 -300W	300W	344x 295x 56	66	24000 lm
KEOU -FL23 -400W	400W	420x 318x 56	66	32000 lm
KEOU -FL23 -500W	500W	528x 345x 58	66	40000 lm
KEOU -FL23 -60 0W	600W	628x 355x 58	66	48000 lm
KEOU -FL23 -80 0W	800W	830x 360x 70	66	64000 lm
KEOU-FL23- 100 0W	1000W	830x 360x 70	66	80000 lm

⇒Product details

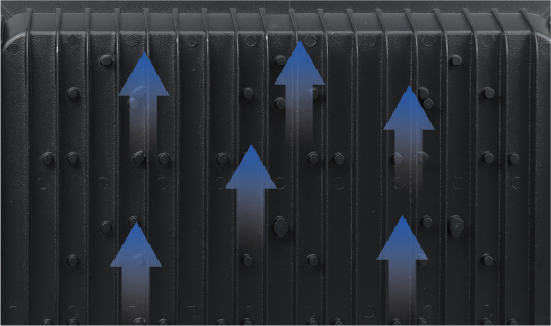

Heat dissipation: Multi-chip heat dissipation with strong pressure and shock resistance.

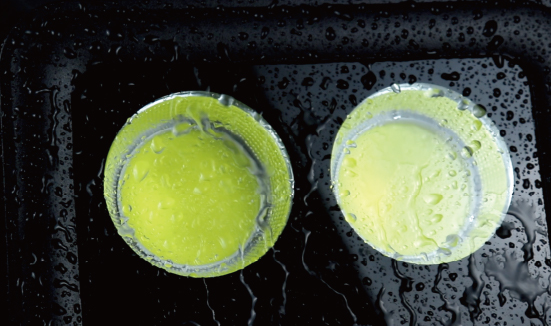

	IP66 protection: dustproof, waterproof, explosion-proof, and lightning-proof, providing quadruple protection.

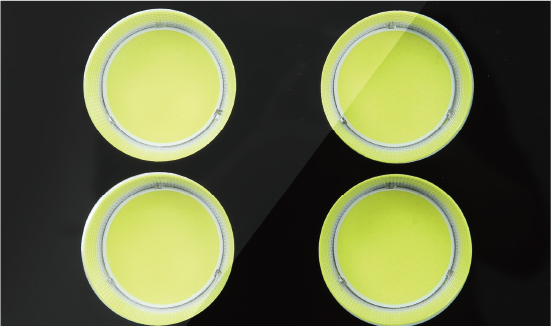

High-brightness COB energy-saving lamp chip: Uses high-quality LED chips, providing uniform light and a long service life.

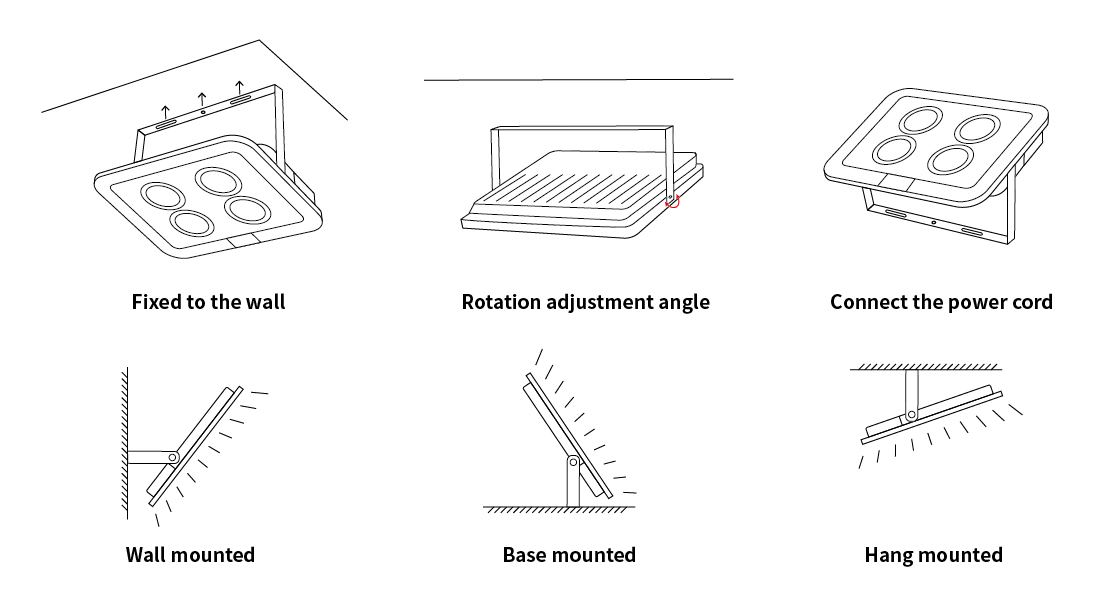

⇒How to install and use flood lights?


Wall- mounted installation

Angle- adjustable installation

Multi- functional adapter installation (suspension/ base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

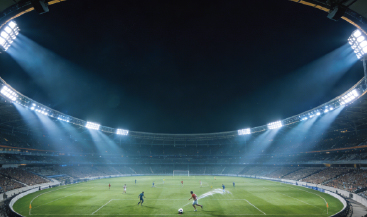

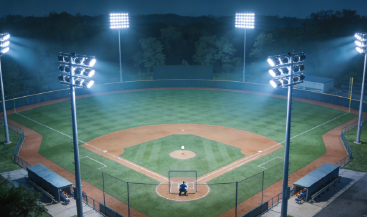

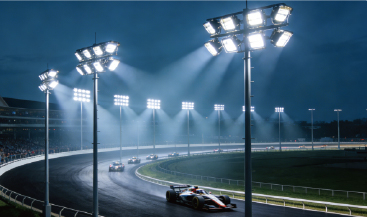

Football stadium: The stands are surrounded by floodlights, which evenly illuminate the entire stadium at night, providing comprehensive lighting without any blind spots.	Racetrack: The high-mast lights illuminate the entire track, making the race car tracks and tire treads clearly visible.	Training Ground: The stadium's floodlights provide even illumination, ensuring clear and safe nighttime training.

⇒More street light designs are waiting for you to develop

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. What is a COB integrated chip ?

A1: COB (Chip-on-Board) integrated chip is a high-density LED packaging technology. Multiple LED chips are directly mounted and bonded onto a single substrate, and then covered with a uniform phosphor layer.

Q2. Why are COB models often chosen for high-wattage floodlights?

A2: Its core feature is high lumen density, enabling high-power centralized lighting; its integrated design provides better heat dissipation, making it suitable for long-term operation at high wattage; its compact structure simplifies the integration and production of high-power lamps, resulting in greater stability.

Q3. What are the core advantages of COB floodlights compared to ordinary floodlights?

A3:The light effect is concentrated and uniform, with no glare; the integrated design has good heat dissipation and a long lifespan; the structure is compact and suitable for high-power lighting needs.
