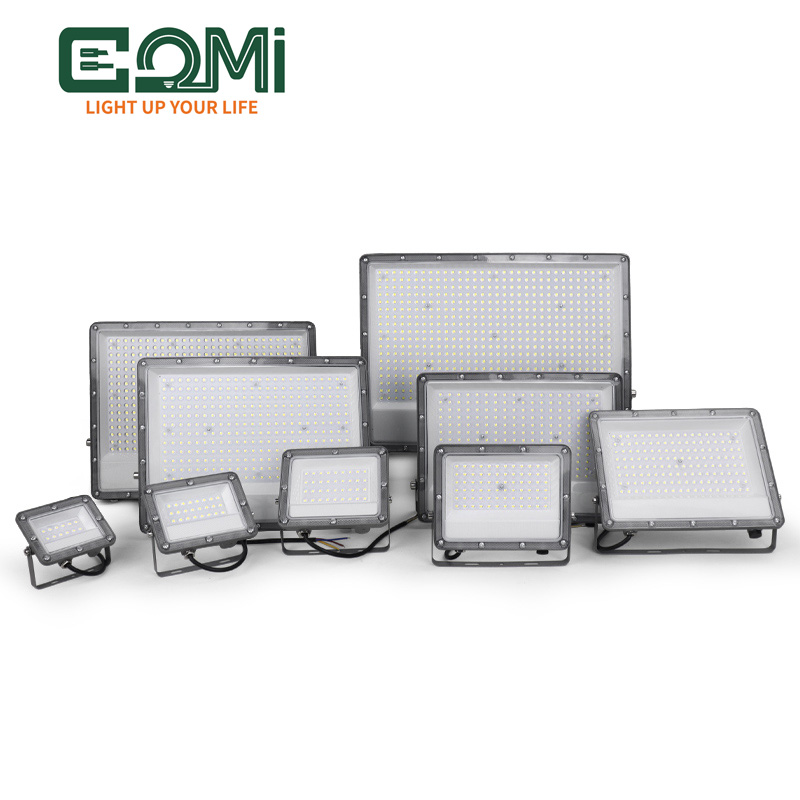

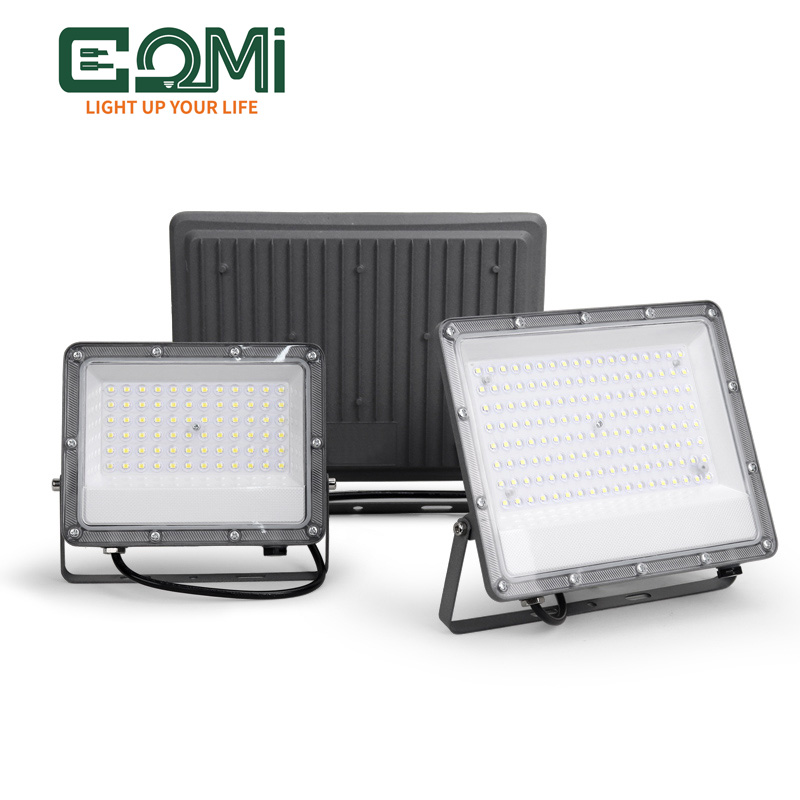

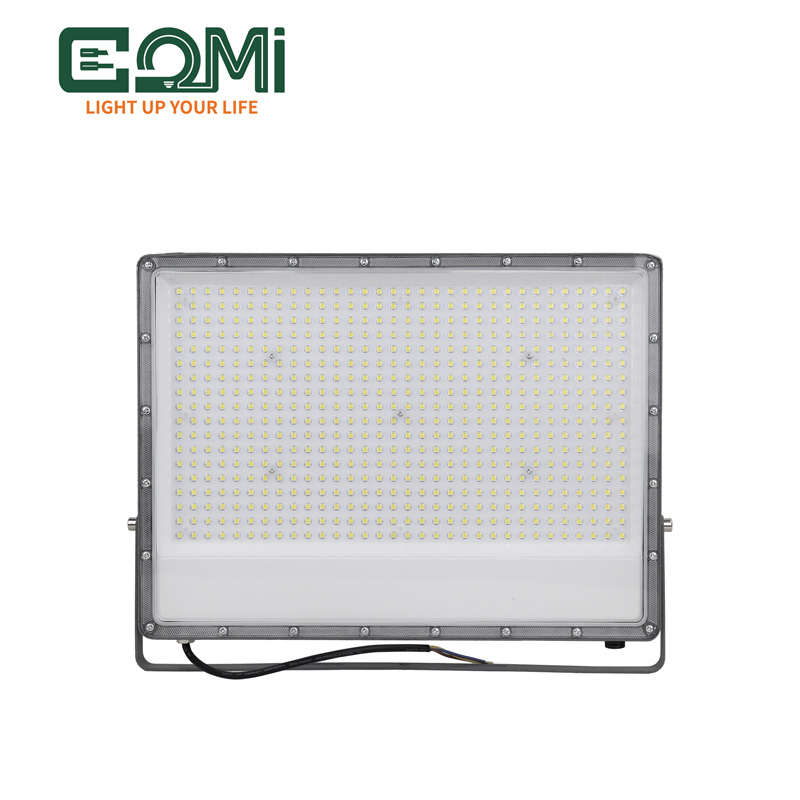

Ultra-Slim Good Price Lens Flood Light

Product Model: KEOU -FL25

wattage: 10W 20W 30W 50W 100W 150W 200W 300W 400W

Materials: Die-cast aluminum + PC casing

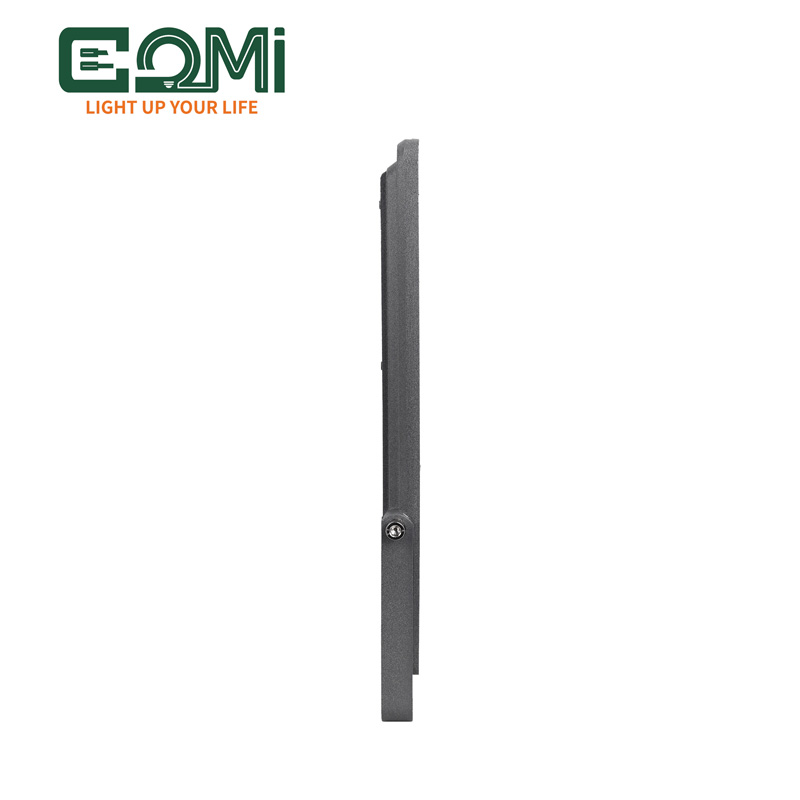

Thickness: 24mm

Color: Light gray casing

Waterproof: IP66 rating

LED chips: 6V-2835, CRI>80, overall luminous efficacy 90LM/W

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our ultra-thin flood light

The ultra-thin gray lens LED floodlight (10W-400W) boasts an IP66 waterproof rating, a compact size, and low transportation costs. Equipped with high-quality LED chips, a die-cast aluminum housing, and a multi-chip heat dissipation design, it provides uniform light, efficient heat dissipation, and robust pressure and shock resistance, making it suitable for long-term outdoor use.

⇒Detailed specifications

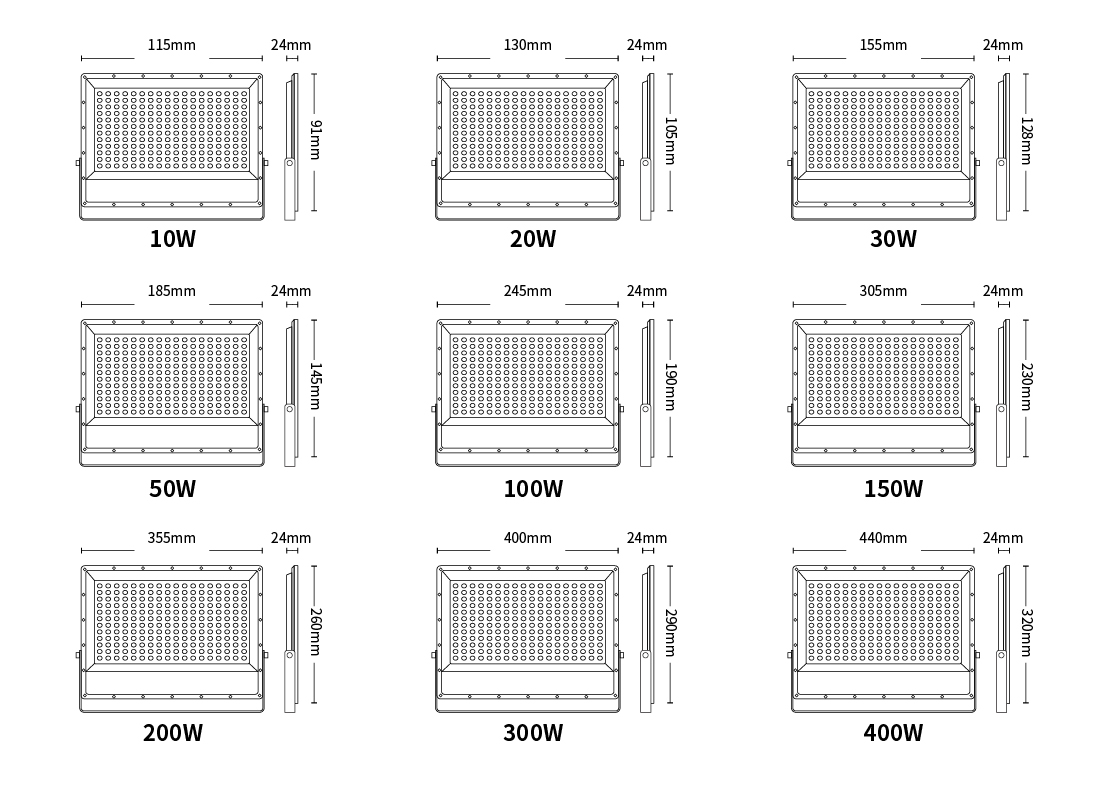

Model number	Power	Size	IP	Luminous flux
KEOU-FL25-10W	10W	115x91x24mm	66	1000lm
KEOU-FL25- 2 0W	20W	130x105x24mm	66	2000lm
KEOU-FL25-30W	30W	155x128x24mm	66	3000lm
KEOU-FL25-50W	50W	185x145x24mm	66	5000lm
KEOU-FL25-100W	100W	245x190x24mm	66	10000lm
KEOU-FL25-150W	150W	305x230x24mm	66	15000lm
KEOU-FL25-200W	200W	355x260x24mm	66	20000lm
KEOU-FL25- 30 0W	300W	400x290x24mm	66	30000lm
KEOU-FL25- 40 0W	400W	440x320x24mm	66	40000lm

⇒Product details

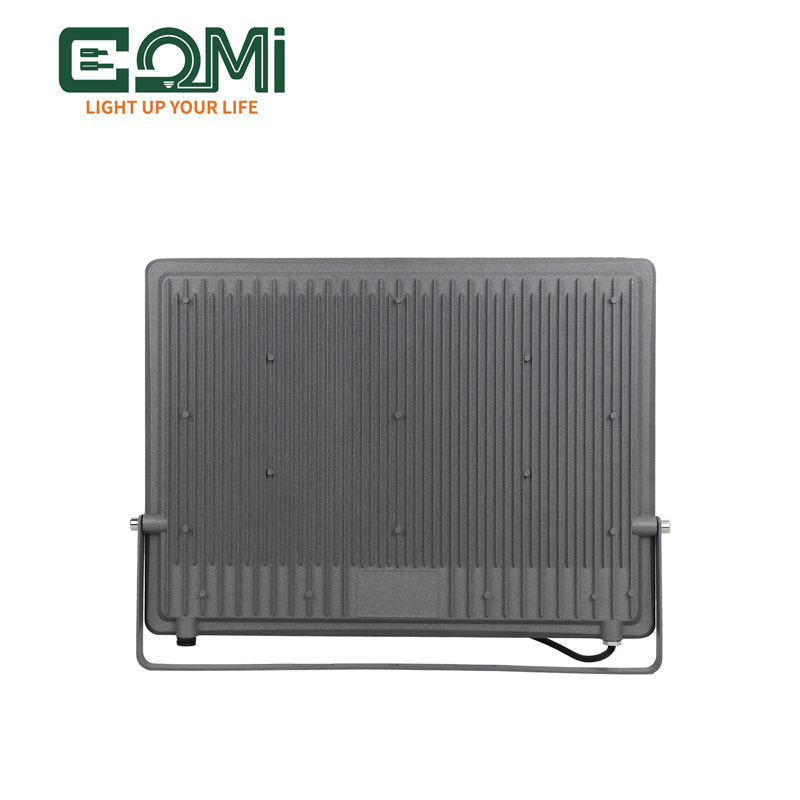

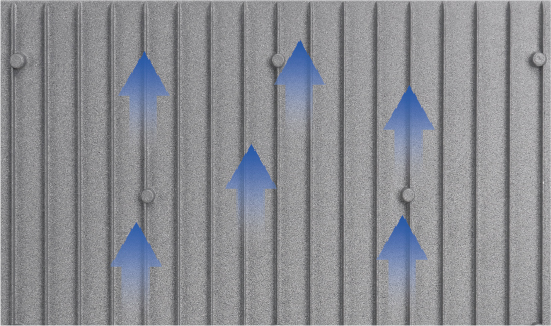

High-efficiency heat dissipation + durability and stability: The vertically textured aluminum shell increases the heat dissipation area, rapidly cools down, slows down light decay, and ensures the long-term stability and durability of the lamp.

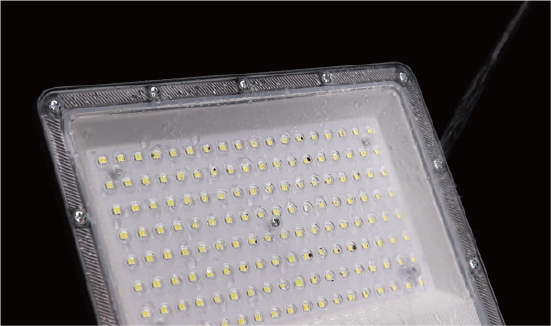

	IP66 Protection + Outdoor Reliability: IP66 waterproof and dustproof sealed design, impact and wear resistant, can still operate stably in harsh outdoor environments.

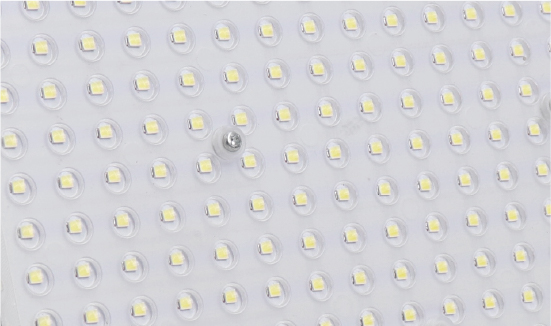

High brightness + uniform light effect: High-density SMD LED matrix outputs high brightness and uniform light without dark areas, meeting the lighting needs of large scenes.

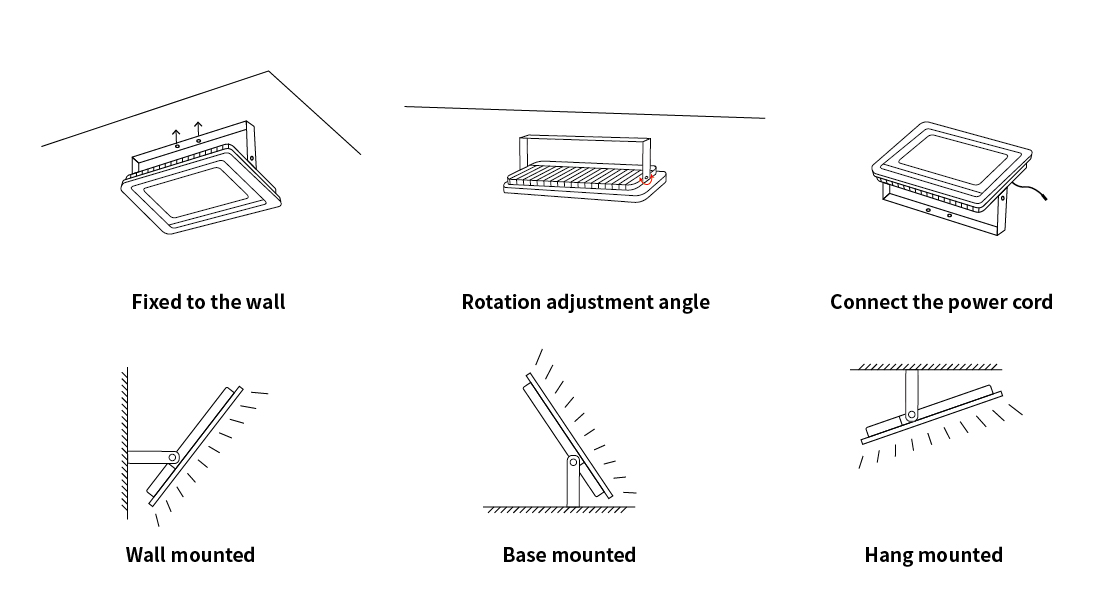

⇒How to install and use flood lights?


Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

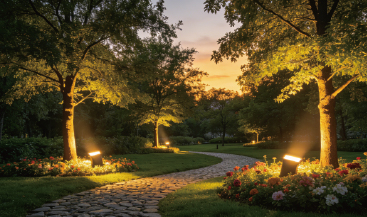

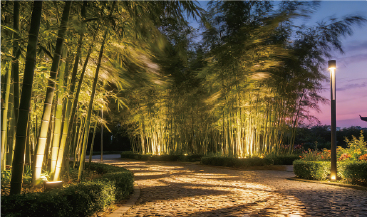

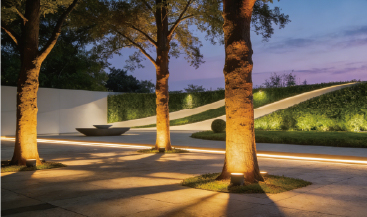

Walkway lighting application: Floodlights concealed along the edges of the walkway use soft light to outline the stone path, ensuring safety for nighttime walks while creating an elegant nighttime atmosphere.	Bamboo forest landscape lighting application: Floodlights placed at the bottom of the bamboo forest illuminate the bamboo stalks upwards, enhancing the sense of depth of the bamboo forest with layers of light and shadow, and outlining a tranquil and elegant night scene in the forest.	Tree landscape lighting application: Floodlights precisely illuminate tree trunks and low canopies, clearly highlighting the unique shapes and textures of trees and showcasing the nighttime aesthetics of natural landscapes.

⇒More Flood light designs to develop！

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. How do I fix a floodlight?

A1: Comes with a dedicated bracket, supporting three installation methods: wall-mounted, ceiling-mounted, and pole-mounted. Complete accessories and easy installation.

Q2. Are thin floodlights prone to being bumped or broken?

A2: No. It uses a high thermal conductivity die-cast aluminum shell, combined with a multi-chip heat dissipation structure, which is highly resistant to compression and impact, and is sturdy and durable.

Q3. What are the advantages of DOB floodlights for home use?

A3:Integrated, slim, flexible installation; no driver, low failure & maintenance; uniform, energy-efficient for yards/fences. Professional installation recommended.
