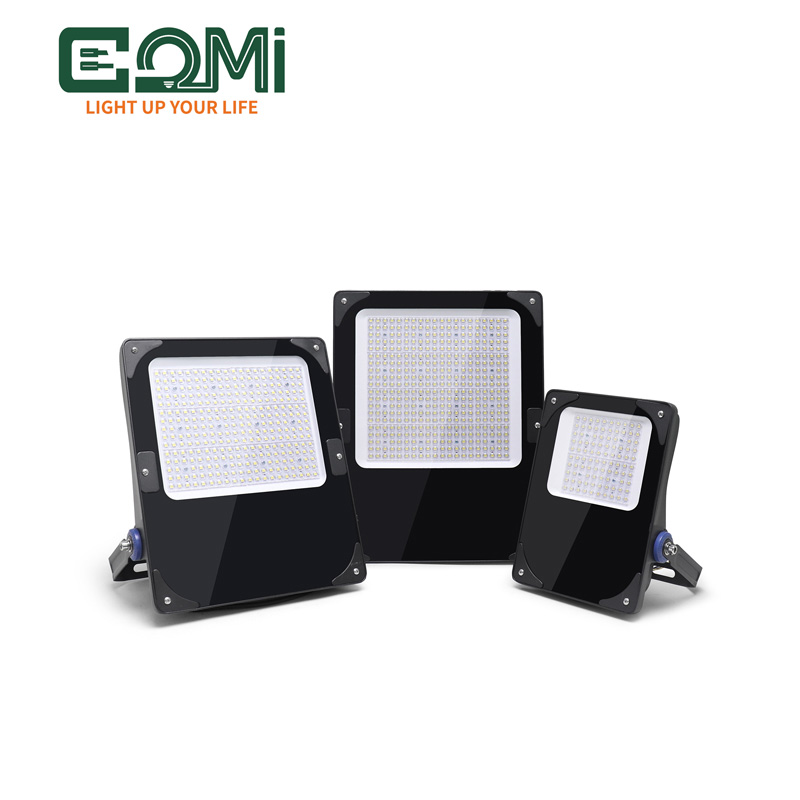

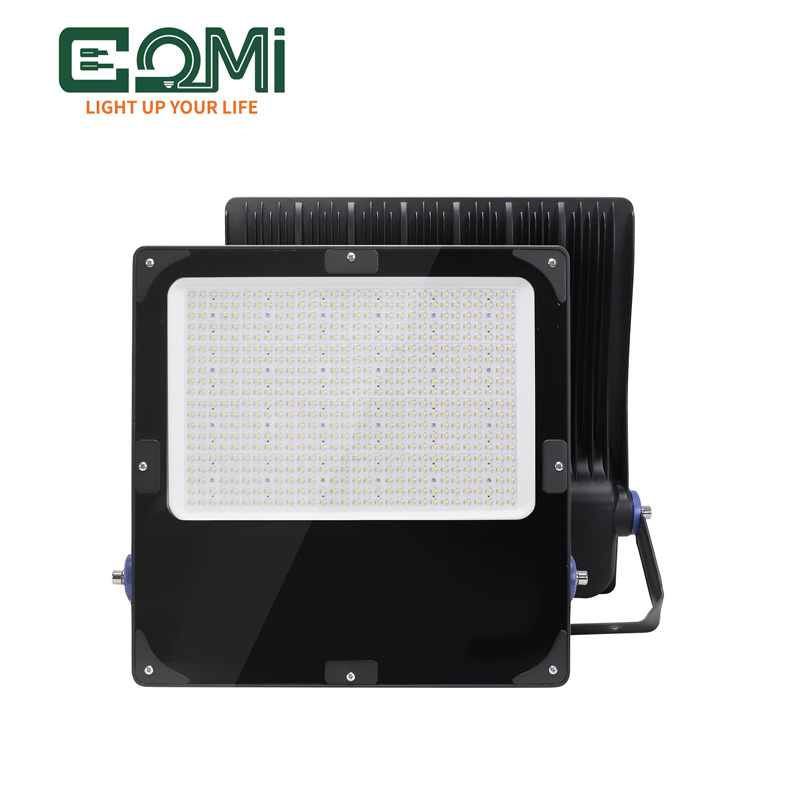

Stable Bracket IP66 Led Flood light

Product Model: COMI-FL32

Wattage: 50W 100W 150W 200W 300W

Materials: Die-cast aluminum + tempered glass

Thickness: 50 mm - 61 mm

Color: Black casing

Waterproof: IP66 rating

LED chips: 2835

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about IP66 LED flood light

Our upgraded rotating LED floodlight is designed for harsh outdoor environments, combining high brightness, high stability, and long lifespan, making it suitable for various outdoor scenarios. The product features a die-cast aluminum alloy body, tempered glass housing, high-quality LED chips, and a professional driver, easily handling diverse outdoor challenges. The upgraded adjustable bracket features unique rotation angle markings for convenient and precise adjustment. Made with high-strength materials and a reinforced structure, the product is sturdy, durable, and resistant to deformation, ensuring safe and reliable outdoor installation..

⇒Detailed specifications

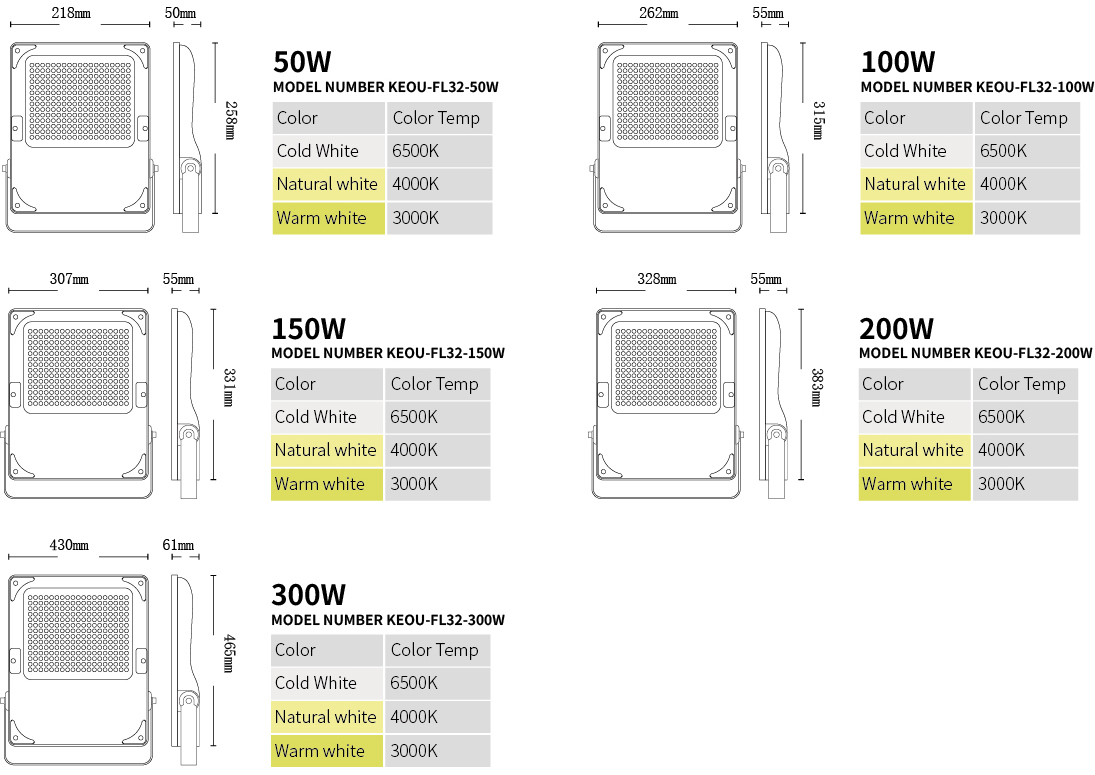

Model number	Power	Size	IP	Luminous flux
COMI-FL32-50W	50W	258x218x50mm	66	5000lm
COMI-FL32-100W	100W	315x262x55mm	66	10000lm
COMI-FL32-150W	150W	331x307x55mm	66	15000lm
COMI-FL32-200W	200W	383x328x55mm	66	20000lm
COMI-FL32-300W	300W	465x430x61mm	66	30000lm

⇒Product details

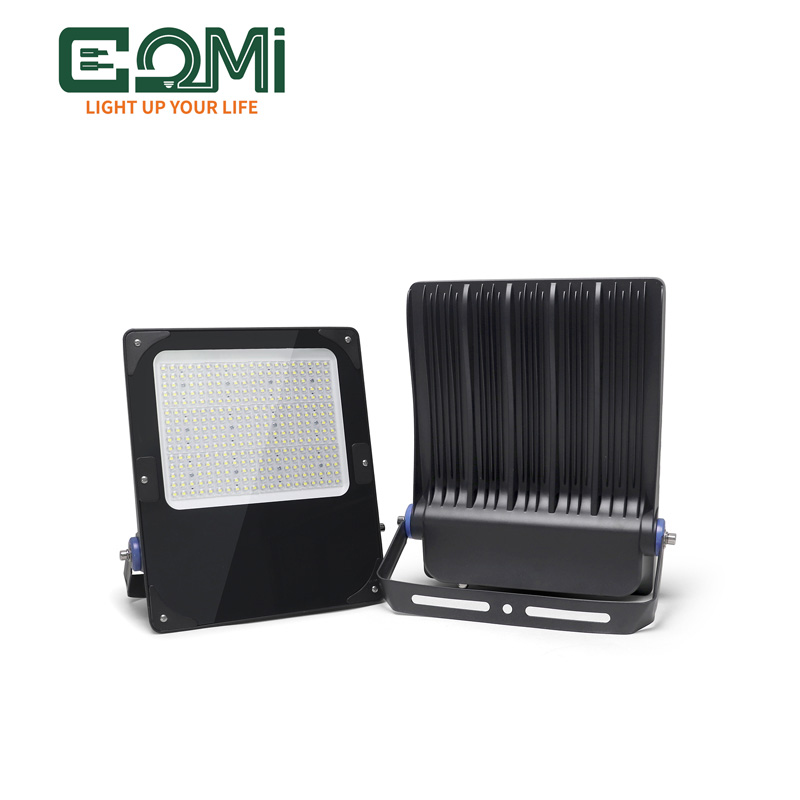

The die-cast aluminum unibody lamp body is painted to resist oxidation and corrosion, and is equipped with multi-chip heat dissipation to resist pressure and shock; IP66 waterproof + tempered glass, fearless of harsh weather; the driver has overcurrent and temperature control protection, and 4KV surge protection to ensure stable operation.

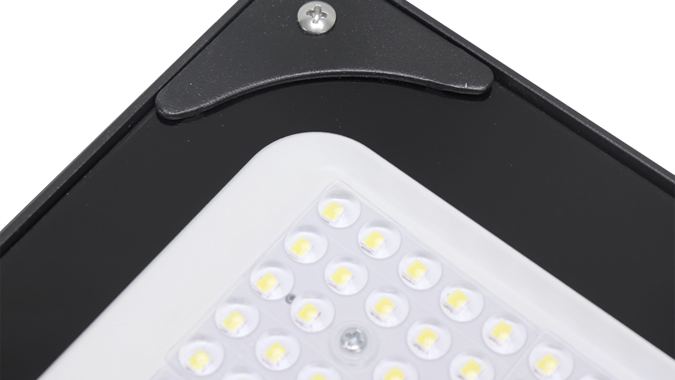

	Equipped with 2835 3V/W LED beads, with a luminous efficacy of 100lm/W, it is energy-efficient and high-performance; the PC lens design provides uniform light without glare; it features a non-isolated wide-pressure full-watt driver with a power factor of 0.95, making it widely adaptable and low-loss.

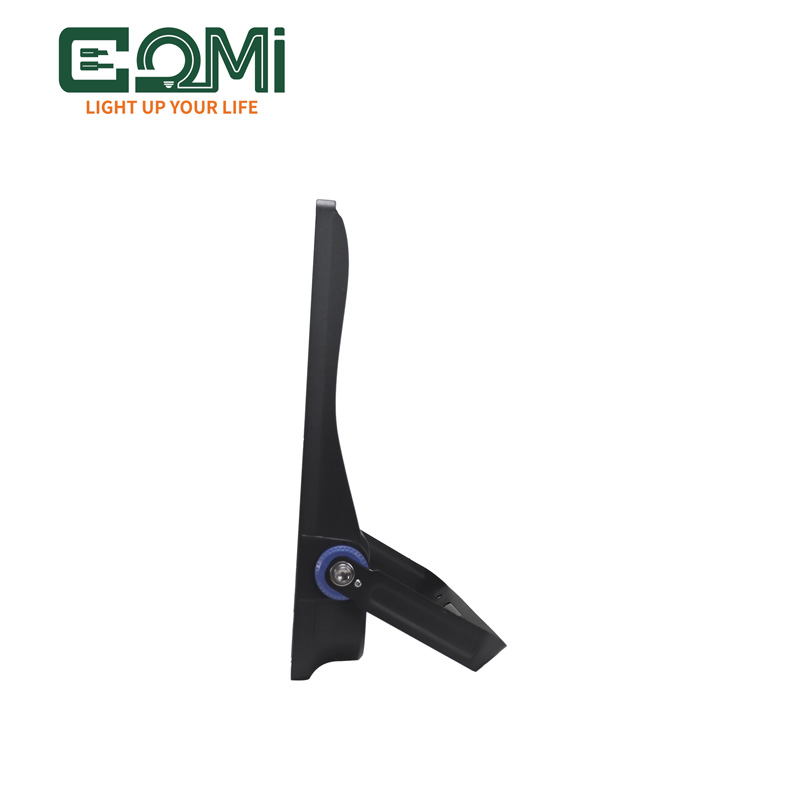

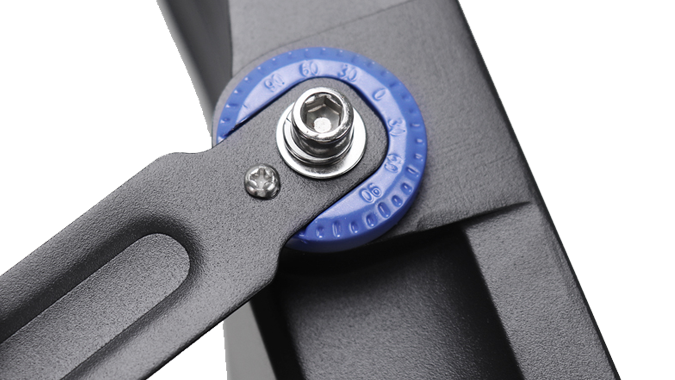

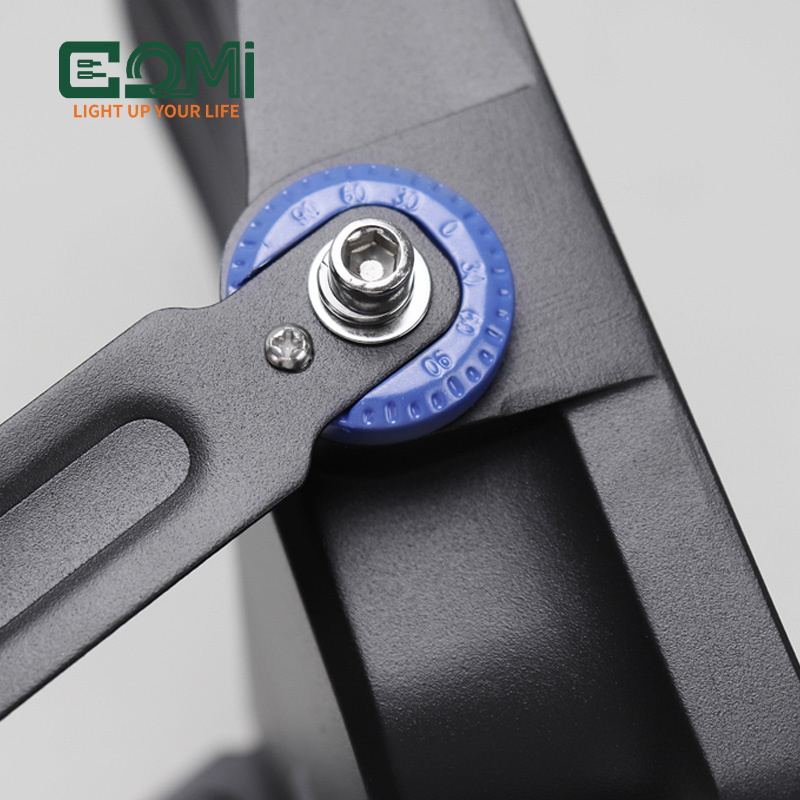

Exclusive specially designed bracket: It comes with rotation degree markings, making adjustment precise and convenient without repeated trial and error; it adopts high-strength materials and reinforced structure, making it tough, not easy to deform, and sturdy enough to withstand various outdoor external influences. Combined with a lightweight die-cast aluminum lamp body, installation and maintenance are more worry-free.

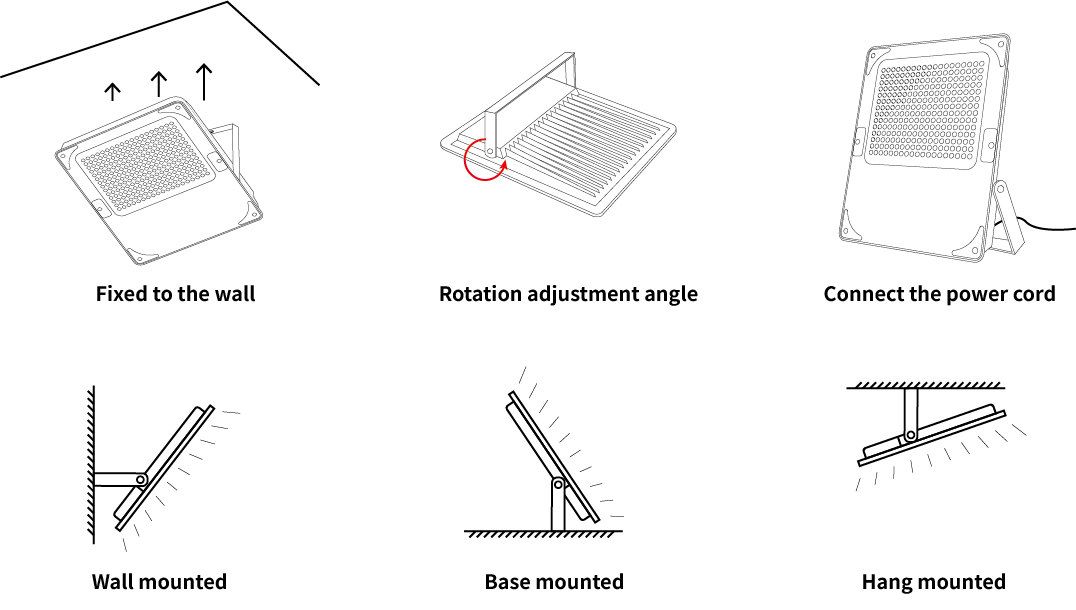

⇒How to install and use flood lights?

资源 2@2x-100.jpg

Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

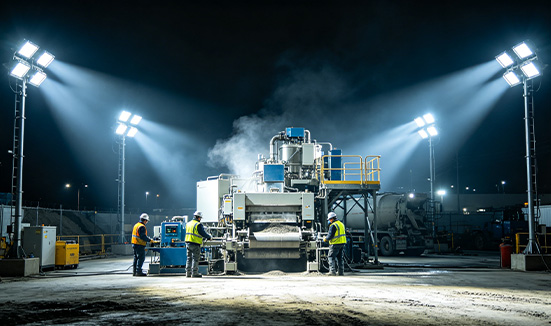

Construction scenarios: Construction sites, demolition sites, etc. High-power floodlights cover the entire construction area, eliminating blind spots in nighttime operations, ensuring the safety of construction personnel and the visibility of equipment, and improving nighttime construction efficiency.	Architectural Scene: Facades of office buildings, hotels, landmark buildings, etc., using directional light beams to outline the geometric lines and facade textures of the buildings, enhancing the three-dimensionality and modern texture of the buildings, and creating visual effects of architectural art at night through changes in light and shadow.	Sports scenarios: Stadiums, basketball courts, football fields, etc., providing sufficient and glare-free lighting for nighttime events and training, meeting the professional lighting environment requirements for high-definition broadcasting, and ensuring the visual clarity of athletes and the fairness of the competition.

⇒More Flood light designs to develop！

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. What are the advantages of using a driver for lighting fixtures? Does it support a wide voltage range?

A1: The luminaire adopts a non-isolated wide-voltage full-watt driver with a wide voltage range (standard AC85-265V), which can adapt to the power supply environment of different regions and scenarios; the driver PF value is as high as 0.95, with high power conversion efficiency and significant energy saving effect; at the same time, it has built-in overcurrent protection and temperature control protection functions, which can effectively prevent circuit overload and overheating damage, and is equipped with 4KV surge protection design to cope with outdoor voltage fluctuations and ensure stable operation of the luminaire.

Q2. How well does the lamp body dissipate heat? Will overheating affect its use?

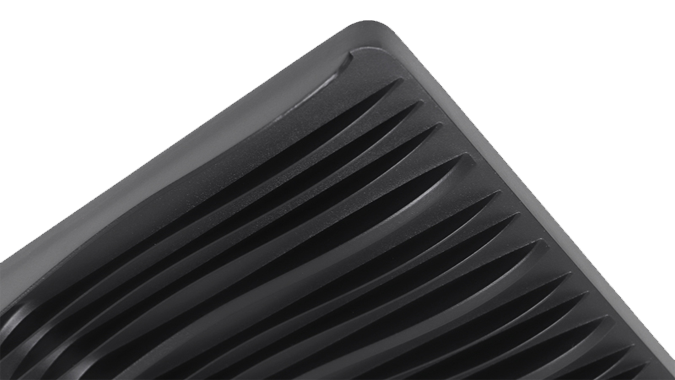

A2: The lamp body is made of die-cast aluminum. The die-casting process allows for a larger heat dissipation area. Combined with a multi-chip heat dissipation design, it can quickly dissipate the heat generated by the LED during operation, preventing heat buildup. The driver has a built-in temperature control protection function, which automatically adjusts the power when the temperature is too high to prevent the lamp from being damaged by overheating, ensuring long-term stable operation. There is no need to worry about heat dissipation affecting the use.
