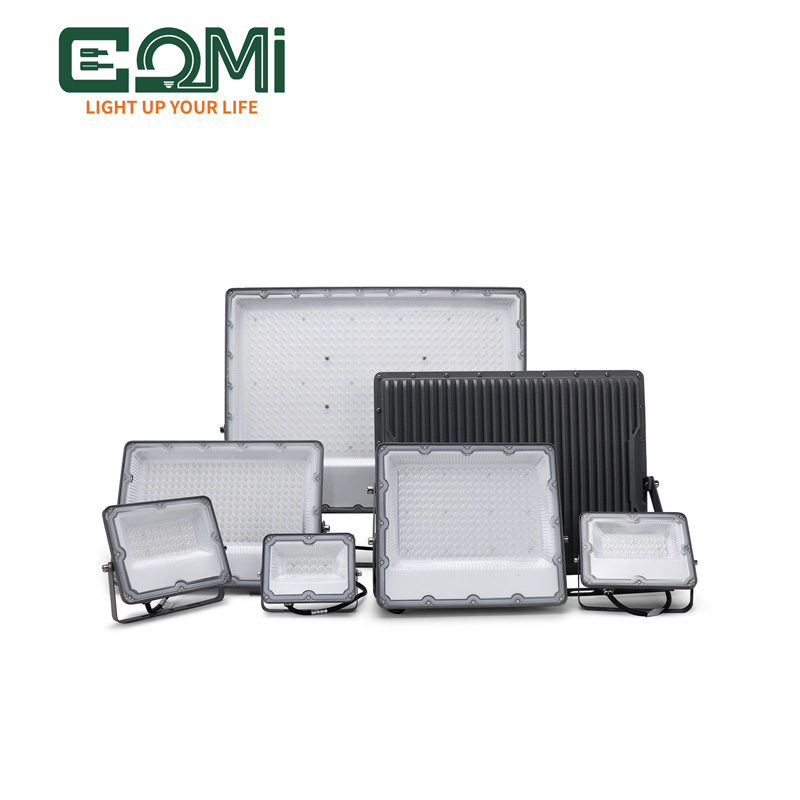

25mm Thick IP66 Flood Light

Product Model: COMI-FL34

Wattage: 10W 20W 30W 50W 100W 150W 200W 300W 400W

Materials: Die-cast aluminum + PC casing

Thickness: 25mm

Color: Light gray casing

Waterproof: IP66 rating

LED chips: 2835

Color temperature selection: Warm light/Sunlight/Cool light

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our IP66 floodlight

COMI 25mm thick IP66 floodlight is specifically designed for outdoor scenarios, balancing practicality and economy. With its high IP66 waterproof rating, compact design, and superior core components, it's suitable for various outdoor environments, meeting basic lighting needs while reducing usage and transportation costs, making it a high-performance, cost-effective choice for outdoor lighting. The product uses high-quality LED chips and advanced heat dissipation technology, combined with a high thermal conductivity shell material, ensuring uniform illumination and a long lifespan. It also possesses strong impact and compression resistance, making it suitable for complex outdoor conditions.

⇒Detailed specifications

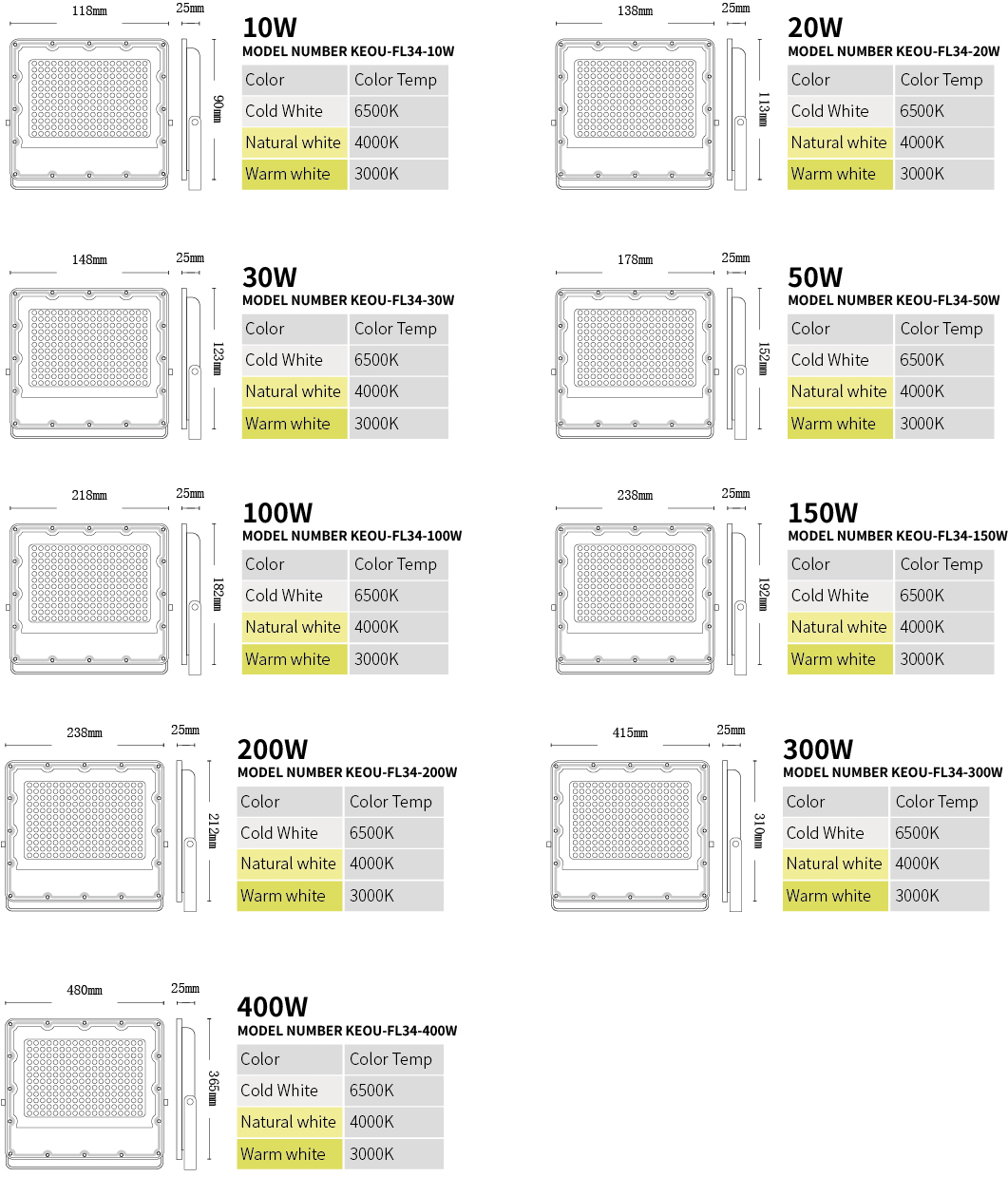

Model number	Power	Size	IP	Luminous flux
COMI-FL34-10W	10W	118x90x25mm	66	1000lm
COMI-FL34- 20W	20W	138x113x25mm	66	2000lm
COMI-FL34-30W	30W	148x123x25mm	66	3000lm
COMI-FL34-50W	50W	178x152x25mm	66	5000lm
COMI-FL34-100W	100W	218x182x25mm	66	10000lm
COMI-FL34-150W	150W	238x192x25mm	66	15000lm
COMI-FL34-200W	200W	238x212x25mm	66	20000lm
COMI-FL34- 300W	300W	415x310x25mm	66	30000lm
COMI-FL34- 400W	400W	480x365x25mm	66	40000lm

⇒Product details

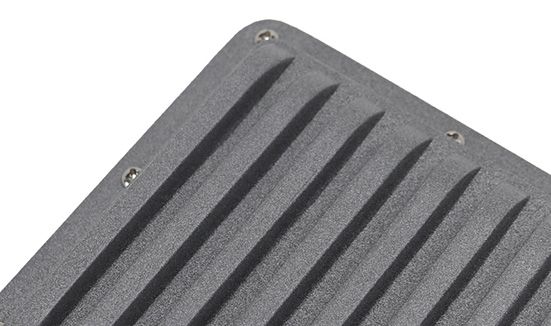

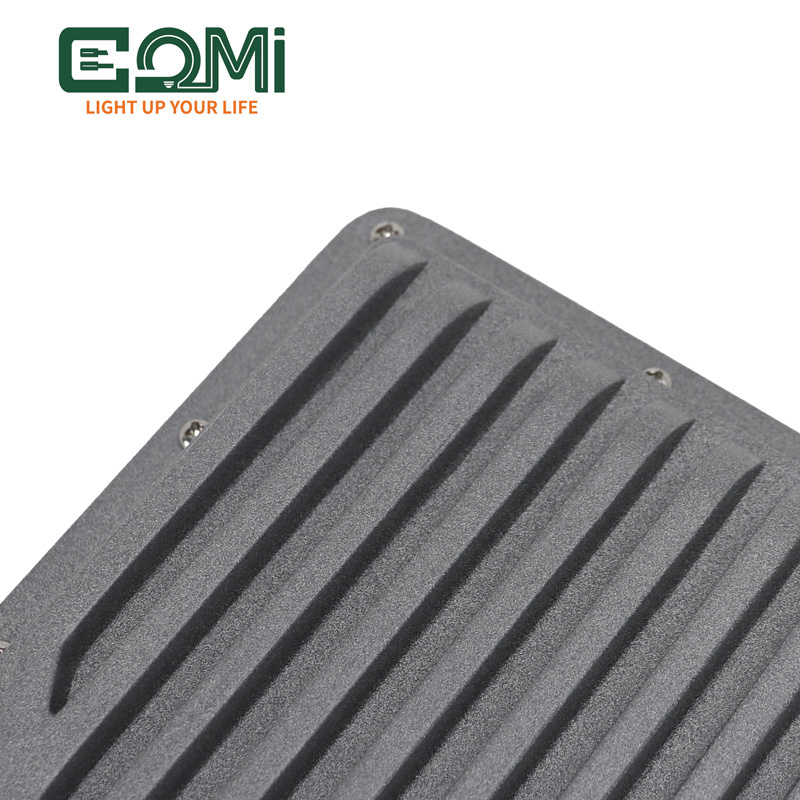

Durable and robust, suitable for complex outdoor environments The outer shell is made of high thermal conductivity die-cast aluminum and PC material, coated with high temperature resistant paint, and equipped with a multi-chip heat dissipation design. It has excellent thermal conductivity, is resistant to extrusion and impact, can withstand complex outdoor environments, is stable in long-term use, and reduces the frequency of maintenance.

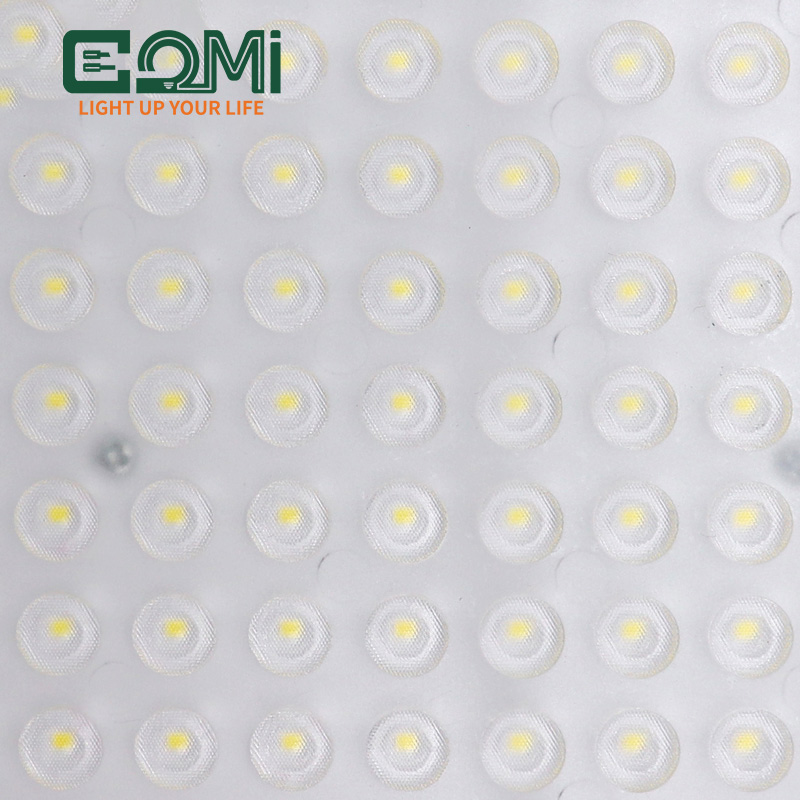

	Thoughtful details, easy to use and excellent lighting experience It uses 6V-2835 LED beads (CRI>80) for uniform and soft lighting; it has a wide voltage range of 100-240V (PF0.65) and is ready to use upon plugging in; it is IP66 waterproof and sealed, effectively preventing dust, rain, and short circuits.

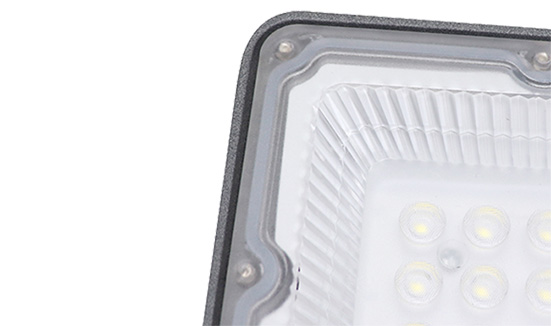

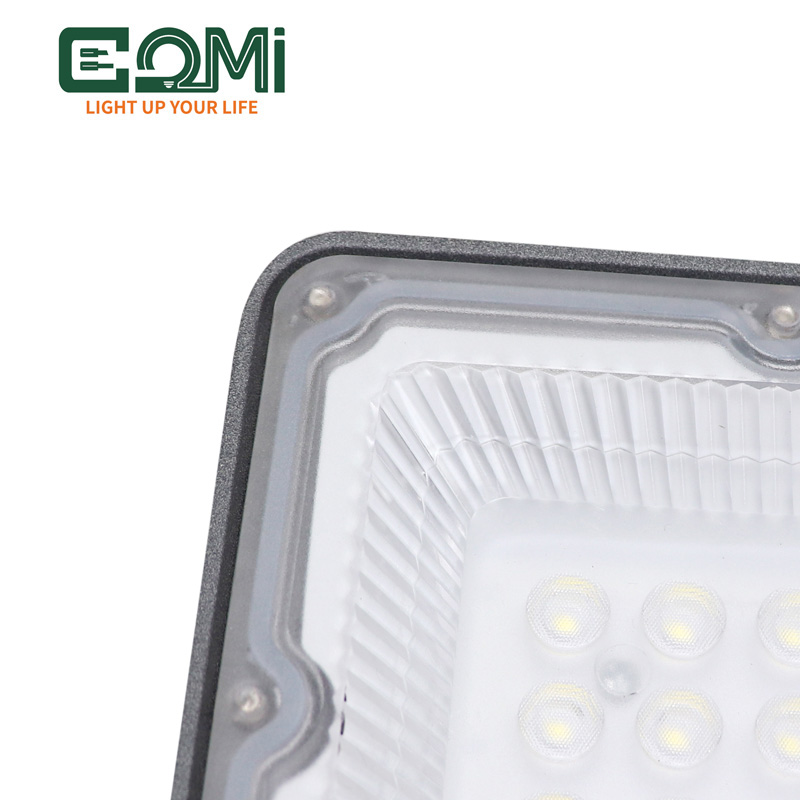

Compact design, convenient and efficient, reducing overall costs. Featuring an integrated lens design, the lamp body is only 25mm thick, making it compact and easy to install and transport outdoors. It also significantly reduces the space occupied during transportation, lowers bulk logistics costs, and is suitable for large-scale outdoor project procurement.

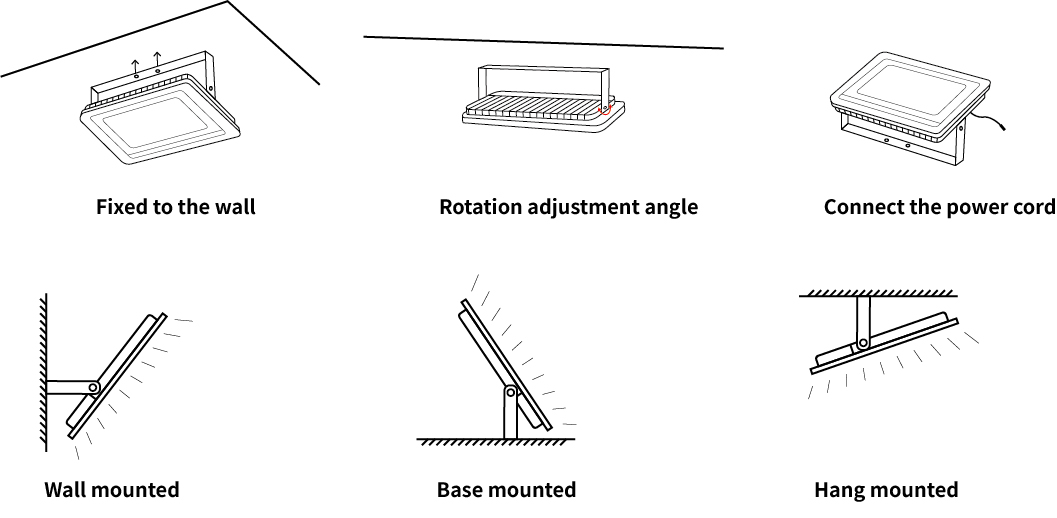

⇒How to install and use flood lights?


Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

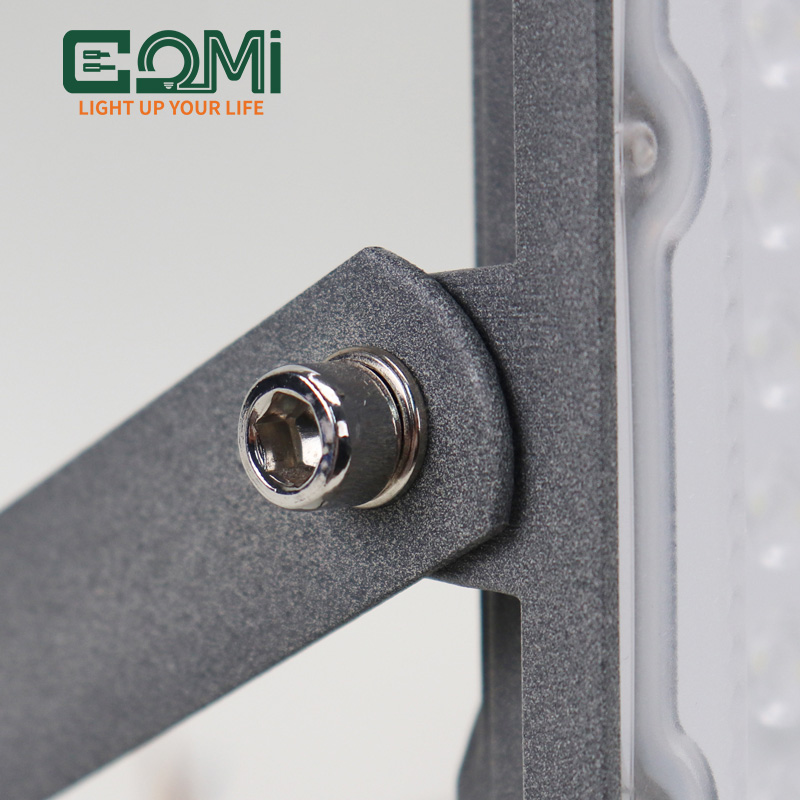

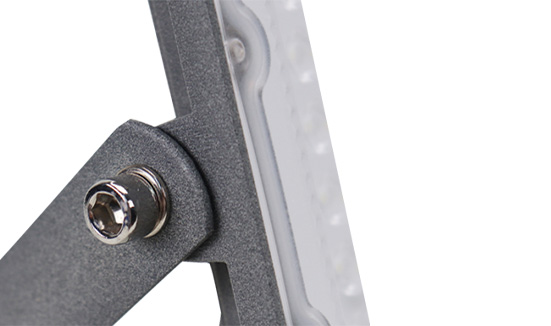

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

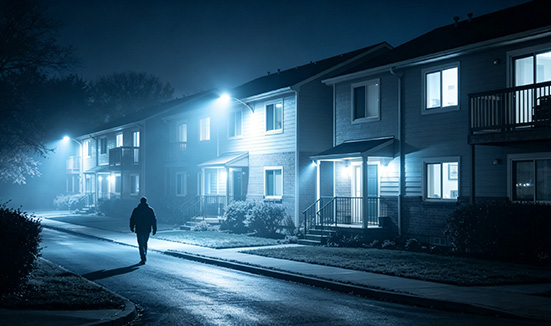

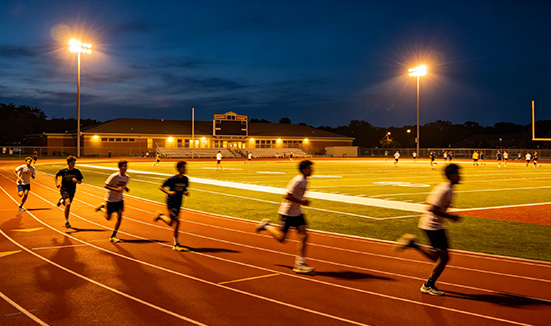

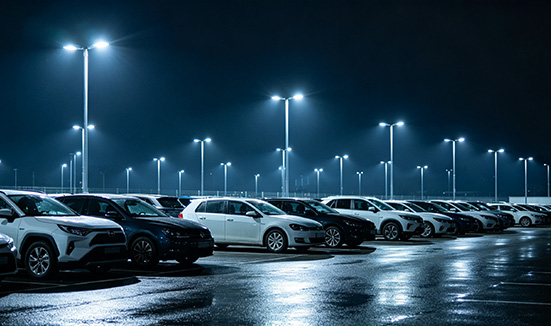

Public scenarios: school campuses (playgrounds, corridors, campus roads), city squares, parks and green spaces, meeting the basic lighting and safety lighting needs of public areas;	Other scenarios: various gardens, factory courtyards, outdoor parking lots, etc., suitable for lighting needs of various outdoor open or semi-open spaces.	Residential scenarios: residential communities, private courtyards, villa courtyards, used for courtyard lighting, building entrance lighting, and community public area lighting;

⇒More Flood light designs to develop！

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. With a lamp body thickness of only 25mm, will it affect heat dissipation and durability?

A1: No. Although the lamp body is only 25mm thick, it uses a high thermal conductivity die-cast aluminum shell and a multi-chip heat dissipation design. The shell material has high thermal conductivity, and the multi-chip distributed layout can effectively disperse heat. Combined with high-temperature resistant protective paint, it can quickly conduct heat out of the lamp body, ensuring long-term stable operation. At the same time, the die-cast aluminum shell itself has strong structural strength and excellent resistance to extrusion and impact. Its durability is not affected by its small thickness.

Q2. Are thin floodlights prone to being bumped or broken?

A2: The product boasts a total luminous efficacy of 90LM/W, providing ample and evenly distributed illumination. Equipped with LED beads with a CRI>80, the light is natural and non-glaring, with no glare or flicker. Suitable for medium to large outdoor areas such as courtyards, public areas in residential communities, and school playgrounds. A single lamp can cover a certain area, and bulk installations can meet the lighting needs of even larger areas.
