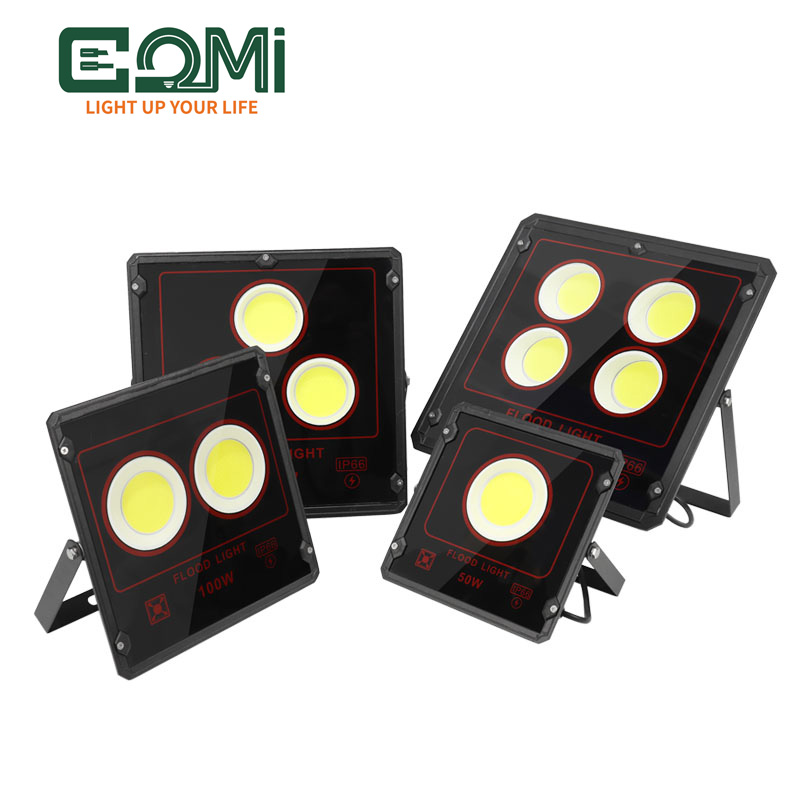

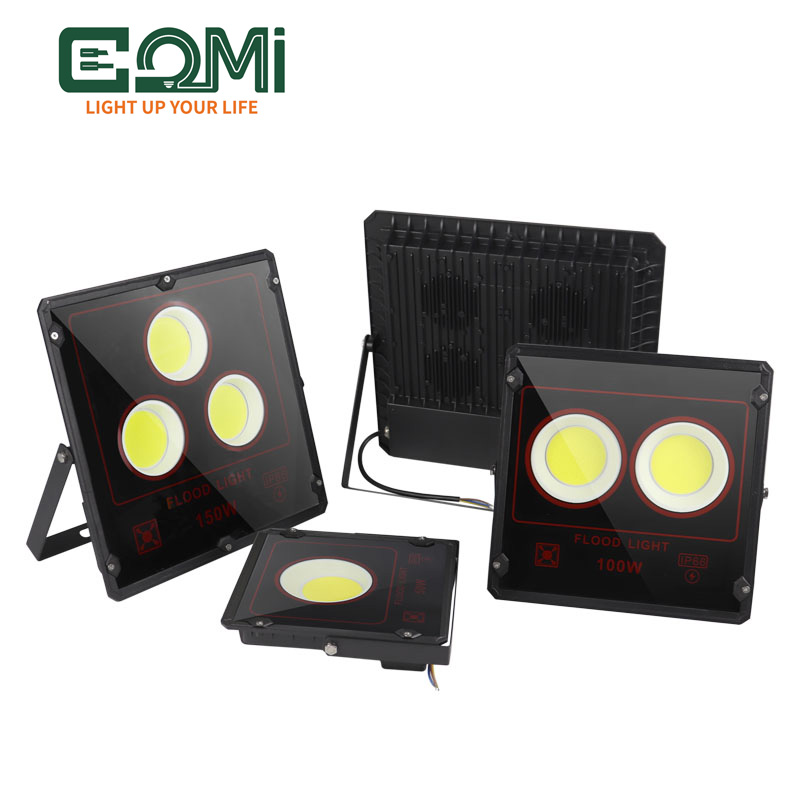

Wide voltage AC85-265V COB floodlight

Product Model: COMI-FL11

Wattage: 50W 100W 150W 200W 300W 400W 500W 600W

Materials: Die-cast aluminum housing, tempered glass lampshade

Thickness: 40-45mm

Color: Black casing

Waterproof: IP66 rating

LED chips: COB

Required field: (Minimum order quantity: 500>=)

Introduction

⇒Learn more about our COB flood light

The COMI Wide Voltage LED Outdoor Floodlight is a high-performance lighting device designed specifically for outdoor scenarios, combining durability, stability, energy efficiency, and flexibility. This product utilizes a high-end COB integrated light source, paired with a precision die-cast aluminum housing and tempered glass cover, meeting IP66 all-around protection standards. It is compatible with a wide range of high and low voltage power supply modes, offering multiple advantages such as efficient lighting, long battery life, and weather resistance. Furthermore, it supports flexible multi-angle installation and adjustment, boasts excellent heat dissipation performance, and comprehensive protection functions, making it widely applicable to various outdoor lighting scenarios such as municipalities, campuses, residences, courtyards, and plazas. It is an ideal choice.

⇒Detailed specifications

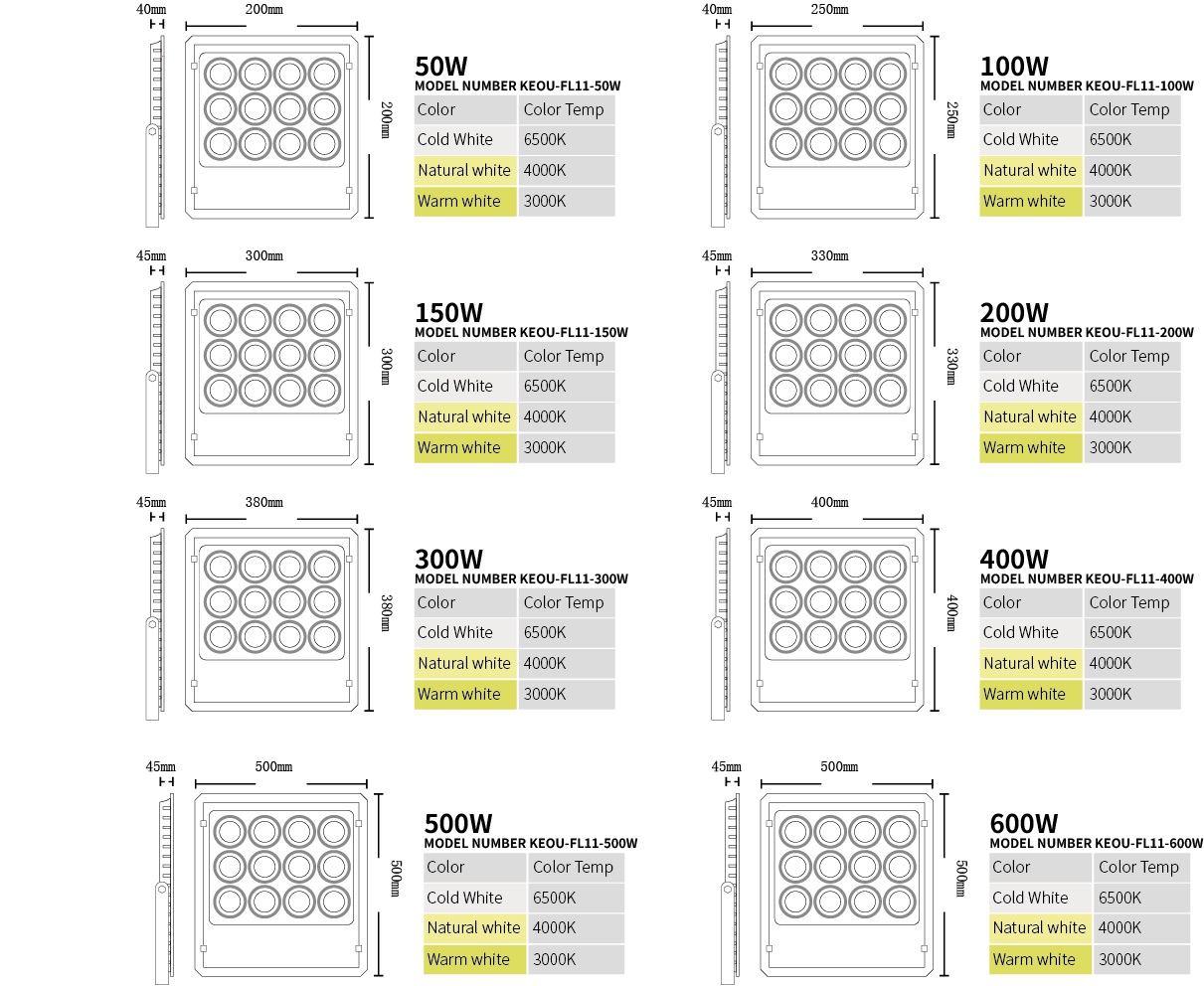

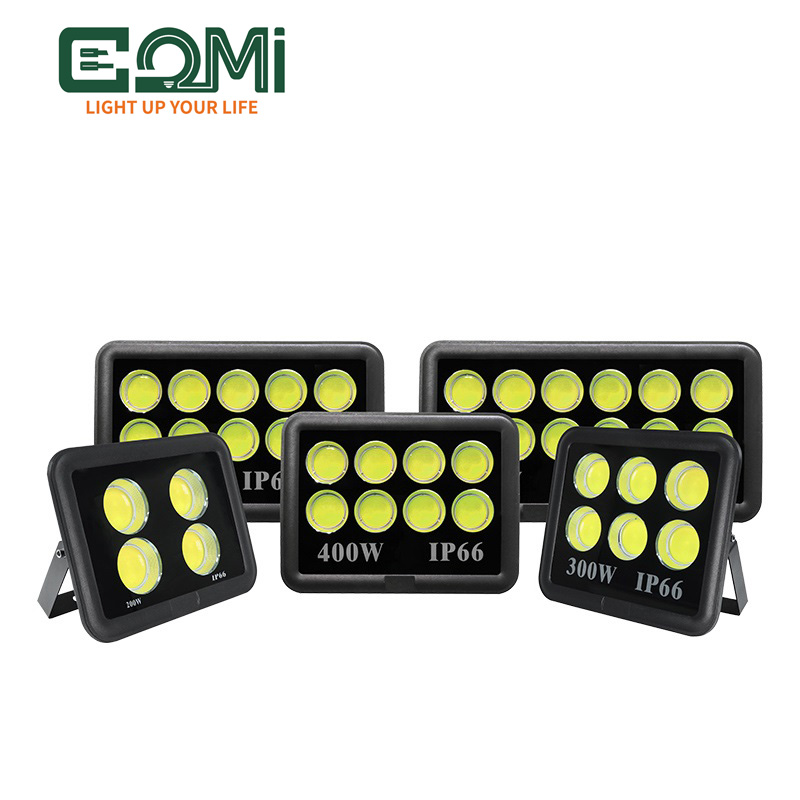

Model number	Power	Size	IP	Luminous flux
COMI-FL11-50W	50W	200x200x40	66	5500lm
COMI-FL11-100W	100W	250x250x40	66	11000lm
COMI-FL11-150W	150W	300x300x45	66	16500lm
COMI-FL11-200W	200W	330x330x45	66	22000lm
COMI-FL11-300W	300W	380x380x45	66	33000lm
COMI-FL11-400W	400W	400x400x45	66	40000lm
COMI-FL11-500W	500W	500x500x45	66	50000lm

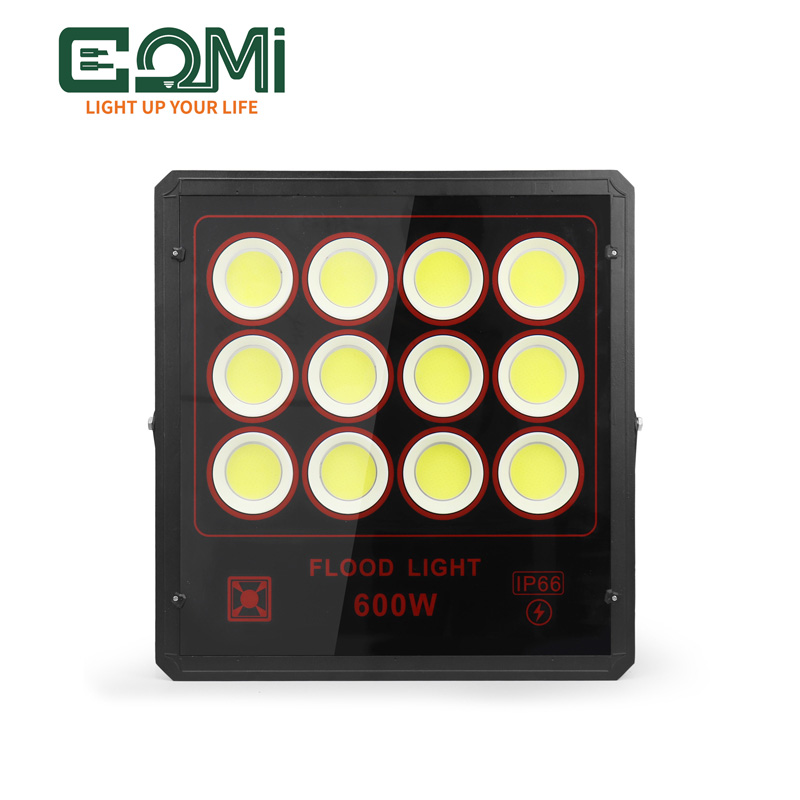

COMI-FL11-600W	600W	500x500x45	66	60000lm

⇒Product details

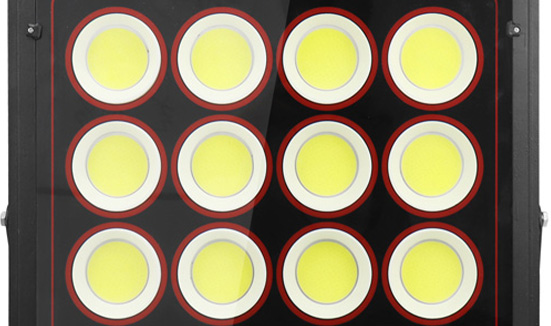

Inherent advantages: high parameter configuration, energy-saving and efficient, stable and safe Equipped with a high color rendering index (CRI>70, 130LM/W light source luminous efficacy, 80lm/W for the entire lamp), combined with a multi-chip heat dissipation structure and a high thermal conductivity aluminum shell, it features fast heat dissipation, low light decay, and longer lifespan. It is equipped with a wide voltage range of AC85-265V, a high power factor of PF0.95, an aluminum shell temperature control driver, and overcurrent protection. It is 50/100W surge resistant to 3KV and 200-600W surge resistant to 4KV, providing stable voltage, energy saving, lightning protection, and burn-out prevention, as well as stable operation.
	Appearance advantages: high-standard protection, weather-resistant and durable, suitable for various occasions Featuring a die-cast aluminum shell and thickened tempered glass structure, combined with a high-temperature resistant and anti-oxidation coating and IP66 dustproof, waterproof, explosion-proof, and lightning protection, it is impact-resistant, fade-resistant, and rust-free. It can withstand harsh outdoor environments such as heavy rain, sandstorms, and sun exposure in all weather conditions, and its simple industrial design is suitable for various outdoor scenarios.

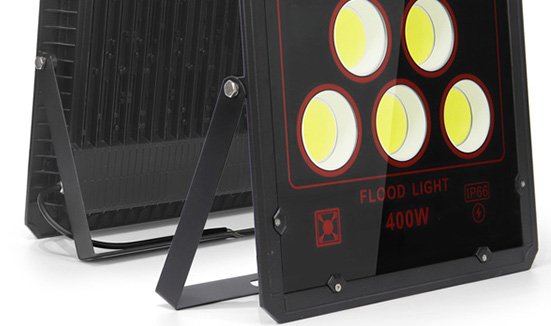

Installation advantages: adjustable angle, adaptable to multiple scenarios, and convenient construction. It supports 180° rotation and adjustable angle, which can flexibly adjust the direction of light and coverage, eliminate lighting dead spots, and has a lightweight and simple structure. It supports multiple installation methods such as poles, walls and ground, and is suitable for outdoor lighting in all scenarios such as campuses, squares, communities and courtyards.

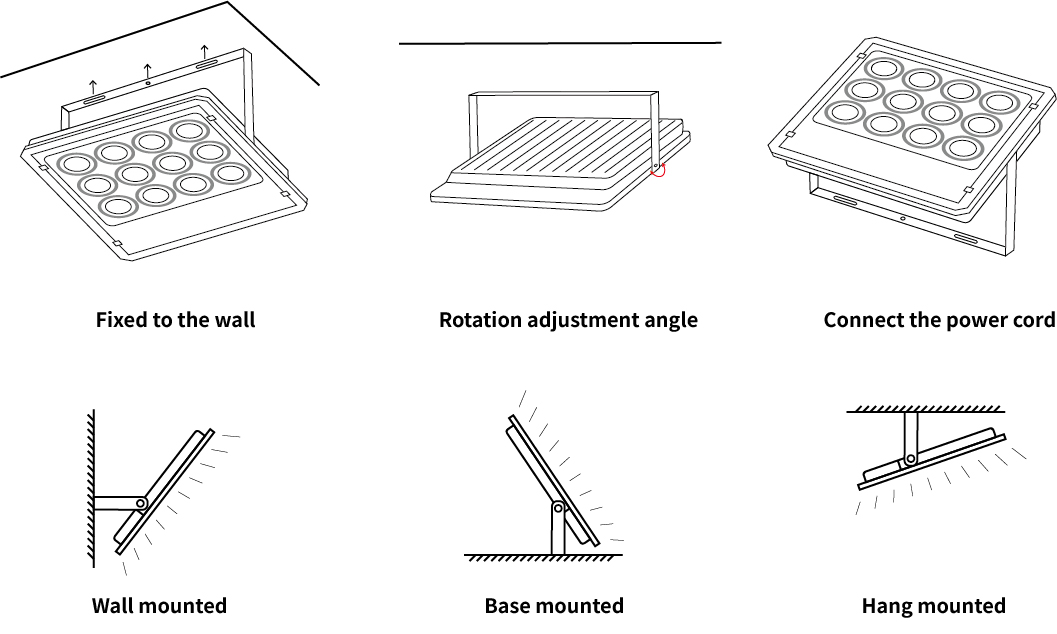

⇒How to install and use flood lights?


Wall-mounted installation

Angle-adjustable installation

Multi-functional adapter installation (suspension/base support)

Cost-saving: No additional scaffolding is required, saving space and construction costs.

Flexible layout: Not limited by poles, can be installed at fixed points as needed.

Easy to install: Simple accessories, just drill a hole and install, no high-altitude equipment required.

Light control accuracy: Multi-angle rotation adjustment for precise matching of directional lighting.

High stability: Damped pivot structure, no deviation after adjustment, excellent wind resistance.

Easy to maintain: Simple operation, no professional tools required for later adjustments.

Wide range of applications: compatible with both hanging and base support, suitable for high ceilings or flat layouts.

Quick assembly and disassembly: The base support allows for rapid repositioning, suitable for temporary lighting scenarios.

High adaptability: Adjustable hanging height, non-slip and wear-resistant base, suitable for various environments.

⇒Application scenarios

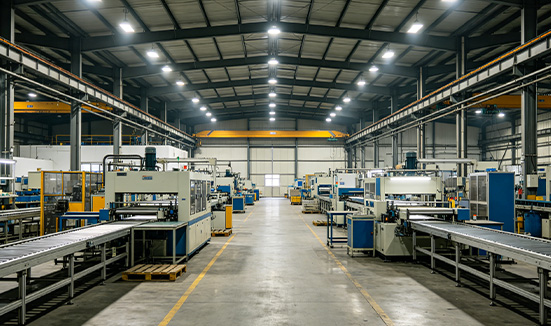

Factory/Workshop Areas: Neutral light floodlights provide uniform, high-intensity illumination, eliminating blind spots in production areas. Suitable for assembly line operations, quality inspection, and other scenarios, ensuring stable production over extended periods.

Similar scenarios: Warehouses, logistics sorting centers, machining workshops.

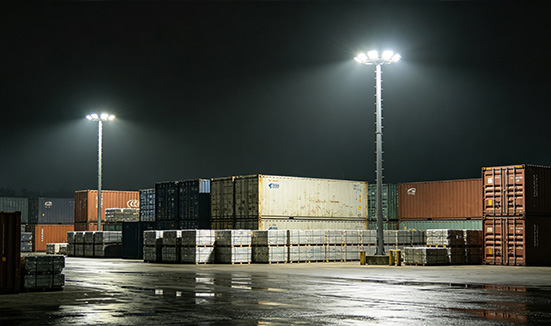

Outdoor Yards: High-power floodlights provide wide-area, blind-spot-free nighttime illumination. IP66 protection adapts to harsh environments, ensuring safe and efficient loading, unloading, and transfer operations.

Similar scenarios: Port terminals, logistics park yards, construction sites.

Outdoor Parking Lots: Neutral light floodlights evenly illuminate parking spaces and aisles, clearly marking key locations, reducing glare interference, and improving nighttime parking and traffic safety.

Similar scenarios: Residential parking lots, commercial plaza parking lots, highway service areas.

⇒More street light designs are waiting for you to develop

Size and Structure: Customized lamp body dimensions, lamp molds, mounting devices, and accessories.

Optical Performance: Customized beam angle, color temperature (2700K-10000K), color rendering index (CRI > 80/90/95Ra), etc.

Drive Functions: Customized switch control, Tuya dimming, DALI dimming, adjustable white light, flicker-free power supply.

Energy Efficiency: Customized high conversion efficiency, high power factor (PF) power supply.

Packaging & Labeling: Small-batch packaging design, brand label printing, customized surface treatments

Branding Materials: Product manuals, brochures, display rack design and production

Gifts: Customized branded tote bags, hats, display props

Visual System: Brand logo printing, customized product color schemes

⇒Frequently Asked Questions (FAQ)

Q1. How well does the light fixture dissipate heat? Will it burn out if left on for extended periods?

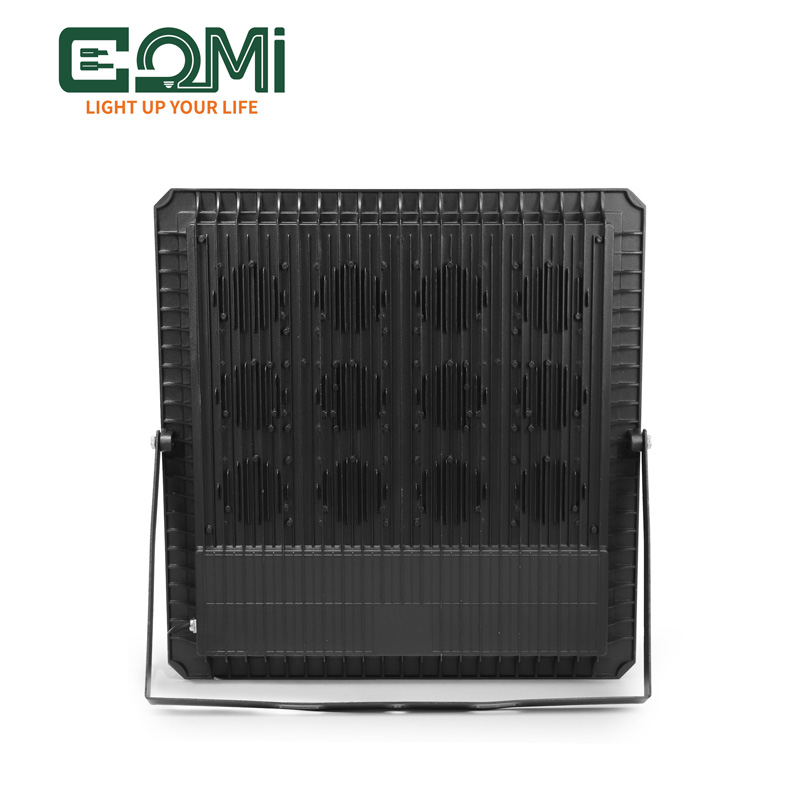

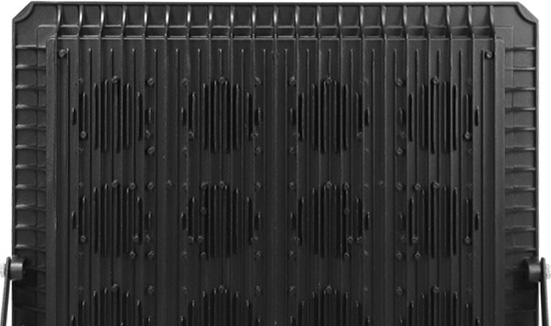

A1: Heat dissipation performance is one of the core advantages of this lamp. It adopts a dual configuration of multi-chip heat dissipation technology and a high thermal conductivity die-cast aluminum heat sink shell, which has a large heat dissipation area and fast heat conduction speed, and can quickly dissipate working heat. At the same time, the driver has a built-in intelligent temperature control protection system. When the lamp works continuously for a long time and the body temperature is too high, it will automatically control the temperature and reduce the load to prevent the light source and driver from being burned out by high temperature. It supports 24-hour long-term lighting and is stable without burning out.

Q2. How effective are the lighting fixtures in resisting lightning strikes and voltage surges?

A2: This lamp has been specially upgraded for outdoor environments with frequent thunderstorms, and has a graded configuration of surge protection capabilities: the 50W and 100W low-power models can withstand 3KV surge impacts, while the 200W-600W high-power models can withstand 4KV surge impacts. It can effectively prevent high-voltage surges in the circuit from breaking down the lamp during thunderstorms, and has excellent lightning protection and burn-out prevention performance, which greatly reduces the failure rate of outdoor lamps.
